»B« Dust Shield Installation

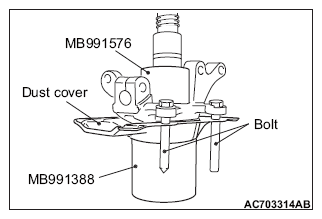

Use special tools MB991388 and MB991576 to press-fit the knuckle into the dust shield.

NOTE: Use the bolts (M12) to align the caliper mounting holes.
G14213207Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
