«A» Hub Removal

CAUTION: In the hub removal operation, make sure to replace the wheel bearing with new one.

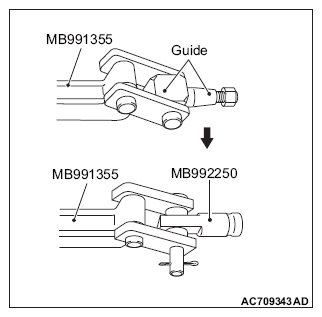

  1. Replace special tool MB992250 with a guide of special MB991355 as shown in illustration.
    G14213199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

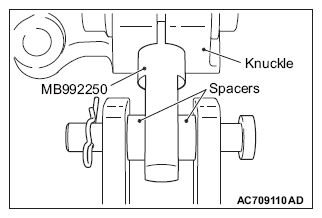

  2. Insert special tool MB992250 in the knuckle and tighten it with a bolt and nut.
    NOTE: Set the spacers of special tool MB992250 as shown in illustration.
    G14213200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

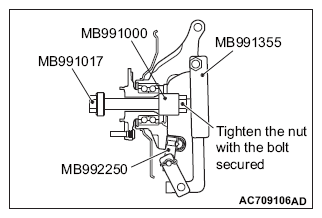

  3. Use special tools MB991000, MB991017, MB991355 and MB992250 to remove the hub.
    G14213201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
