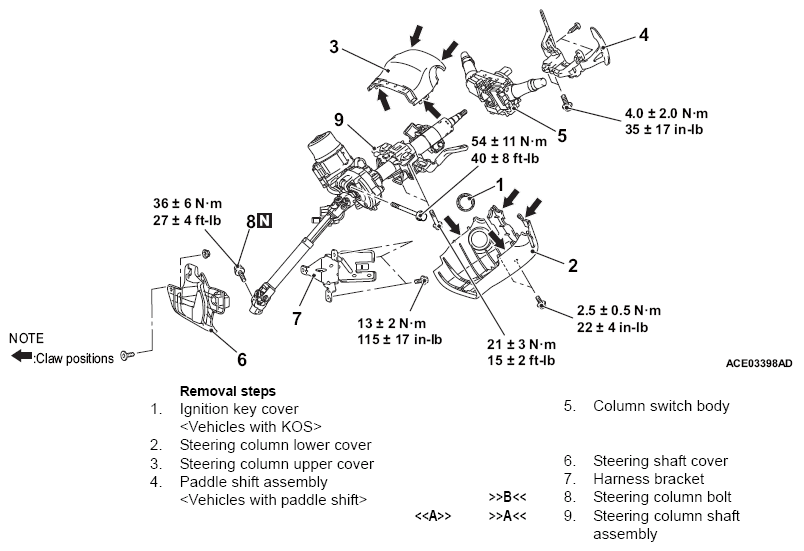

Removal And Installation <Steering Column Shaft Assembly>: Notes
CAUTION:
- Before removing the steering wheel, driver's air bag module assembly and knee air bag module refer to SERVICE PRECAUTIONS Driver's Air Bag Module and Clock Spring DRIVER'S AIR BAG MODULE AND CLOCK SPRING and Knee Air Bag Module KNEE AIR BAG MODULE .
- After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to G AND YAW RATE SENSOR CALIBRATION ).
- Do not reuse the part that has been dropped because its internal components may be defective even if it has no apparent damage.
- Always keep the steering column shaft assembly away from the matter that generates magnetic force.
- For the steering column shaft, parts cannot be disassembled.
- Be careful when removing and installing the steering column shaft assembly, because it is heavy.
Pre-removal and Post-Installation Operation
- Steering Wheel Straight-ahead Position Check
- Steering Wheel Assembly Removal and Installation (Refer to STEERING WHEEL ).
- Knee Air Bag Module Removal and Installation
(Refer to KNEE AIR BAG MODULE ).
