Paddle Shift Switch Check

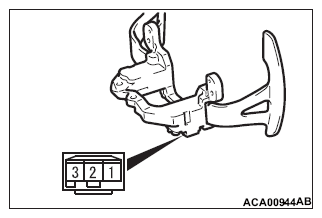

  1. Check the continuity between the paddle shift switch connector terminals.

Standard value:

Paddle shift lever Terminal number Resistance value
Upshift and hold the lever. 2 - 3 Continuity exists (2 ohms or less).
Downshift and hold the lever. 1 - 2
No operation No continuity between the terminals.
G14213064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
