Removal And Installation: Notes

CAUTION:

Before replacing the transaxle assembly, you should make a note of the serial No. which is stamped on the new transaxle assembly (Refer to LEARNING PROCEDURE ).
When the transaxle assembly is replaced, carry out the following operations.

Initialization Procedure for CVT Learned Value (Refer to FREEZE FRAME DATA REFERENCE TABLE .)
Learning Procedure (Refer to LEARNING PROCEDURE .)

Pre-removal and post-installation operation

Engine Room Under Cover Front A, B and Engine Room Side Cover Removal and Installation. (Refer to UNDER COVER )
Transmission Fluid Draining and Refilling. (Refer to TRANSMISSION FLUID CHANGE )
Engine Coolant Draining and Refilling. (Refer to ENGINE COOLANT REPLACEMENT )
Air Cleaner Assembly, Air Cleaner Bracket Removal and Installation. (Refer to AIR CLEANER )
Battery and Battery Tray Removal and Installation. (Refer to REMOVAL AND INSTALLATION )
Engine Upper Cover Removal and Installation. (Refer to CAMSHAFT )
Drive Shaft Removal and Installation. (Refer to DRIVESHAFT ASSEMBLY )
Center Member Removal and Installation. (Refer to ENGINE ROLL STOPPER AND CENTERMEMBER )
Transfer Assembly Removal and Installation. <AWD> (Refer to ENGINE ROLL STOPPER AND CENTERMEMBER )
Rear Roll Stopper Removal and Installation. <AWD> (Refer to ENGINE ROLL STOPPER AND CENTERMEMBER )

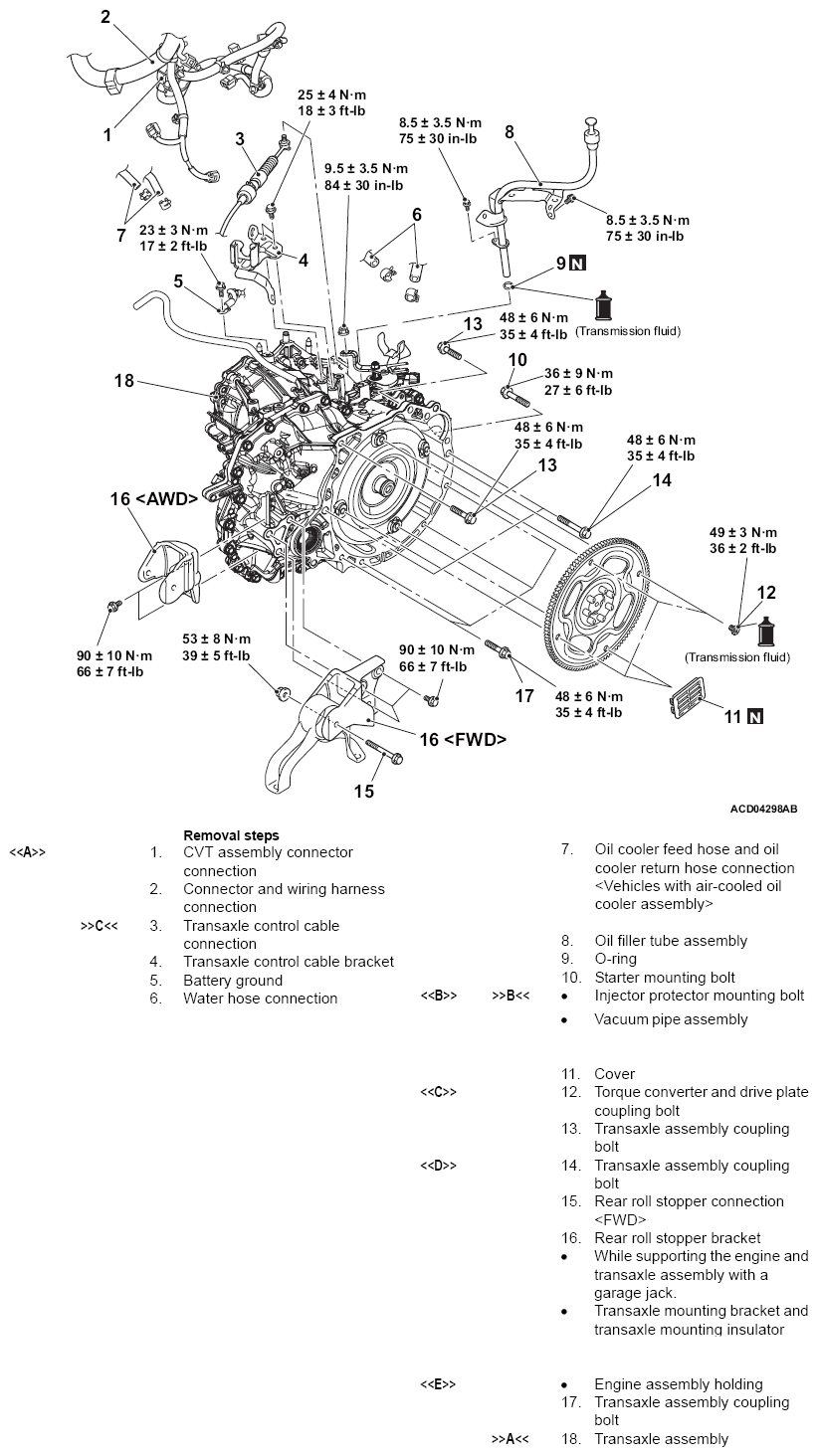

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
