«A» CVT Assembly Connector Disconnection

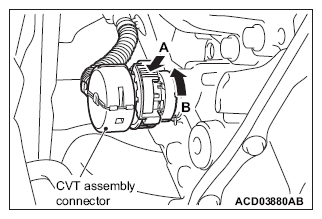

While pressing A in the figure, turn B counterclockwise to unlock the CVT assembly connector, and disconnect the connector.

G14213050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
