«E» Engine Assembly Holding

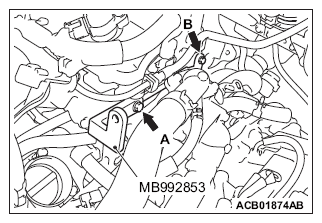

  1. Tighten the engine hanger plate (special tool: MB992853) to the specified torque at A in the figure (injector protector rear mounting bolt) and B in the figure (vacuum pipe assembly mounting bolt).

    Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb) (A in the figure)

    Tightening torque: 11 ± 1 N.m (98 ± 8 in-lb) (B in the figure)

    G14213052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

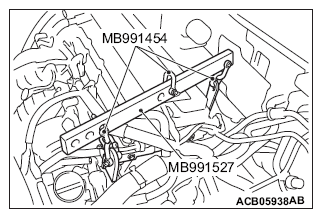

  2. Assemble the engine hanger (special tool: MB991527) with the chain of the engine hanger balancer (special tool: MB991454).
    G14213053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

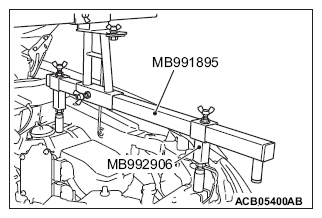

  3. Set the foot of special tool engine hanger (MB991895) as shown in the illustration.
    NOTE: Slide the front foot of special tool engine hanger attachment (Special tool: MB992906) to balance the engine hanger.
    G14213054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

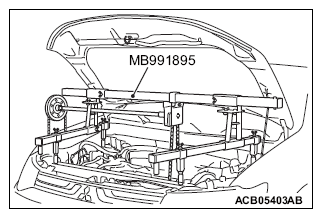

  4. Connect the engine hanger (Special tool: MB991895) to the engine hanger (special tool: MB991527). Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
G14213055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
