Removal And Installation

CAUTION:

Before commencing work, use the scan tool to read out the serial No. from the old TCM, which you will replace, and make a note of it (Refer to LEARNING PROCEDURE ).
When the TCM is replaced, carry out the following operations.

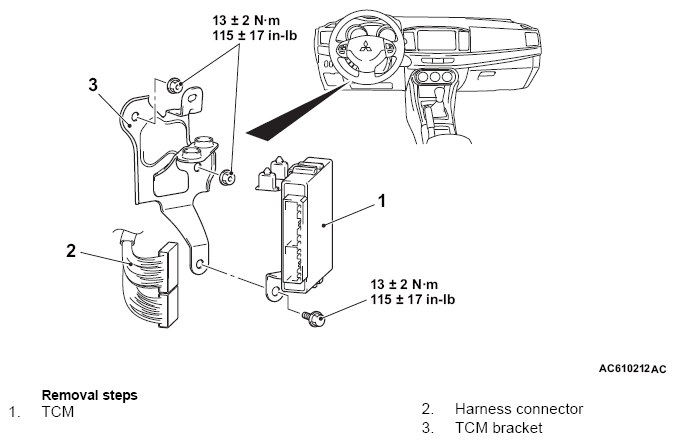

Fig 1: Removing/Installing Transaxle Control Module Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
