Removal And Installation: Notes
Pre-removal and post-installation operation
Engine Room Under Cover Front B Removal and Installation. (Refer to
UNDER COVER
)
Transmission Fluid Draining and Refilling. (Refer to
TRANSMISSION FLUID CHANGE
)
Transfer Oil Draining and Refilling. (Refer to
TRANSFER OIL CHECK <AWD>
)
Front Exhaust Pipe Removal and Installation. (Refer to
EXHAUST PIPE AND MAIN MUFFLER
)
Propeller Shaft and Propeller Shaft Heat Protector Removal and Installation. (Refer to
PROPELLER SHAFT
)
Center Member Removal and Installation. (Refer to
ENGINE ROLL STOPPER AND CENTERMEMBER
)
Exhaust Manifold Bracket C Removal and Installation. (Refer to
EXHAUST MANIFOLD
)
Drive Shaft (RH) Removal and Installation. (Refer to
DRIVESHAFT ASSEMBLY
)

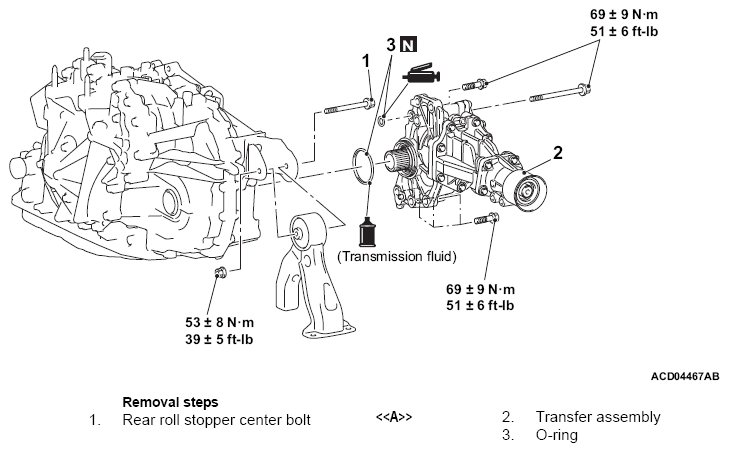

Fig 1: Removing/Installing Transfer Assembly Components Location With Torque Specification (AWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
