Component Parts Location
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

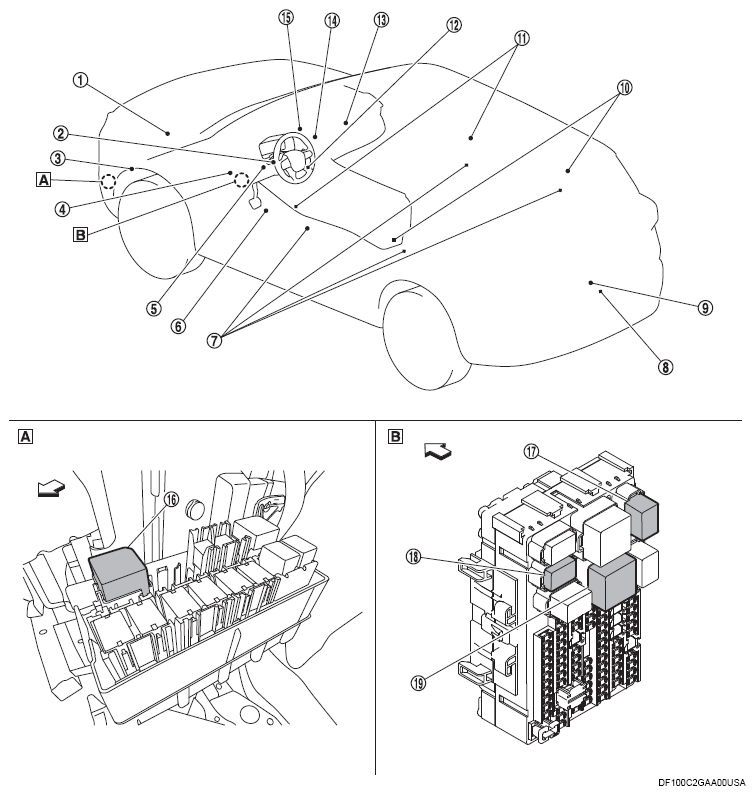

| (1) | IPDM E/R Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (2) | Combination switch (Lighting & turn signal switch) |
| (3) | TCM Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (4) | BCM Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (5) | Stop light switch |
| (6) | Front power window motor LH |
| (7) | Door lock assembly (Door switch) |
| (8) | liftgate opener switch (liftgate request switch) |
| (9) | liftgate lock assembly (liftgate switch) |
| (10) | Rear door outside handle assembly (Door request switch) |
| (11) | Front door outside handle assembly (Door request switch) |
| (12) | Push-button ignition switch |
| (13) | Keyless operation key unit Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (14) | TCU Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (15) | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (16) | Ignition relay-3 |
| (17) | Ignition relay-2 |
| (18) | Ignition relay-1 |
| (19) | Accessory relay |
| (A) | Relay holder |
| (B) | Fuse block (J/B) |
| Vehicle front | |
