Component Parts Location
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

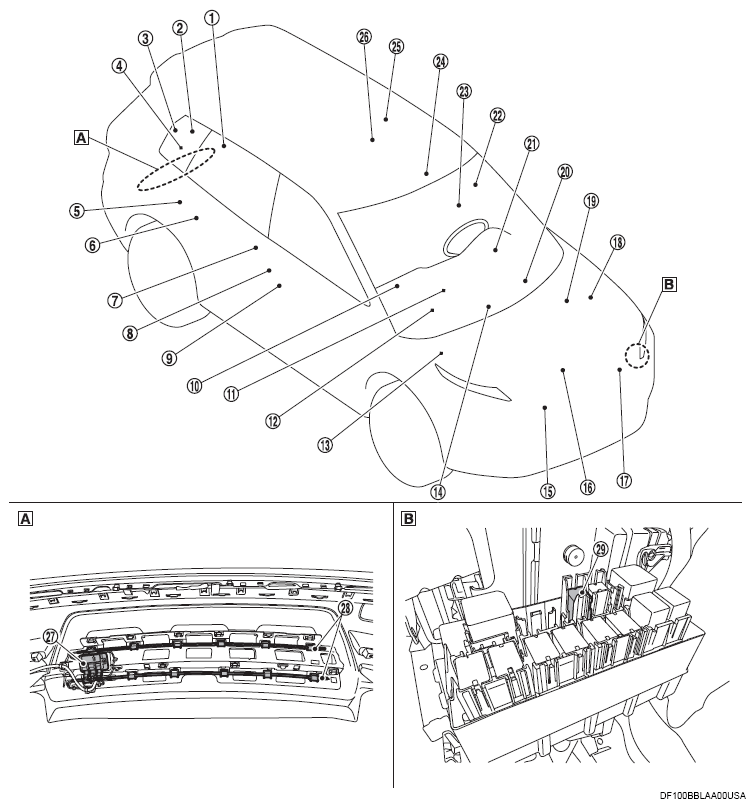

| (1) | Inside key antenna |
| (2) | liftgate lock assembly (liftgate switch) |
| (3) | liftgate opener switch (request switch) |
| (4) | Outside key antenna (rear bumper) |
| (5) | Rear door request switch RH |
| (6) | Rear door lock assembly RH (door switch) |
| (7) | Outside key antenna (rear door RH) |
| (8) | Front door request switch RH |
| (9) | Front door lock assembly RH (door switch) |
| (10) | Keyless operation key unit Refer to COMPONENT PARTS LOCATION . |
| (11) | Push-button ignition switch |
| (12) | TCU Refer to COMPONENT PARTS LOCATION . |
| (13) | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION . |
| (14) | Stop light switch |
| (15) | Horn |
| (16) | Hood switch |
| (17) | TCM Refer to COMPONENT PARTS LOCATION . |
| (18) | IPDM E/R Refer to COMPONENT PARTS LOCATION . |
| (19) | ECM Refer to COMPONENT PARTS LOCATION . |
| (20) | BCM Refer to COMPONENT PARTS LOCATION . |
| (21) | Combination meter |
| (22) | Front door request switch LH |
| (23) | Front door lock assembly LH (door switch) |
| (24) | Outside key antenna (rear door LH) |
| (25) | Rear door request switch LH |
| (26) | Rear door lock assembly LH (door switch) |
| (27) | Hands free sensor control unit Refer to COMPONENT PARTS LOCATION . |
| (28) | Hands free sensor |
| (29) | Starter cut relay |
| (A) | View with back side of rear bumper fascia assembly |
| (B) | View with front bumper fascia assembly removed |
