Component Parts Location
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

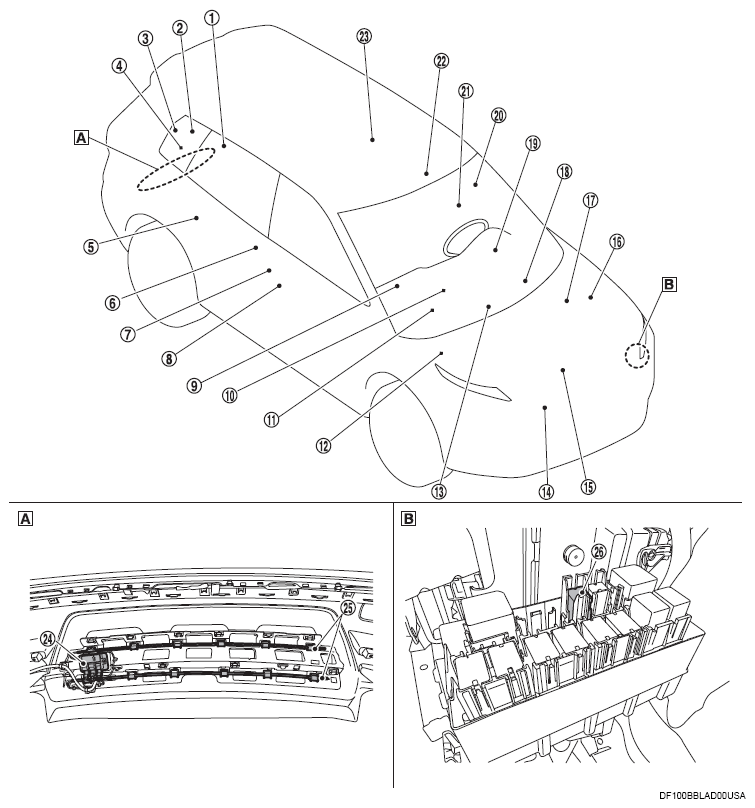

| (1) | Keyless operation rear inner antenna |
| (2) | Back door lock assembly (back door switch) |
| (3) | Back door opener switch (request switch) |
| (4) | Keyless operation rear outer antenna |
| (5) | Rear door lock assembly RH (door switch) |
| (6) | Keyless operation front outer antenna (RH) |
| (7) | Front door request switch RH |
| (8) | Front door lock assembly RH (door switch) |
| (9) | Keyless operation key unit Refer to COMPONENT PARTS LOCATION . |
| (10) | Electric motor switch |
| (11) | TCU Refer to COMPONENT PARTS LOCATION . |
| (12) | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION . |
| (13) | Stop light switch |
| (14) | Horn |
| (15) | Hood switch |
| (16) | IPDM E/R Refer to EXPLODED VIEW . |
| (17) | ECM Refer to REMOVAL AND INSTALLATION . |
| (18) | BCM Refer to EXPLODED VIEW . |
| (19) | Combination meter |
| (20) | Front door request switch LH |
| (21) | Front door lock assembly LH (door switch) |
| (22) | Keyless operation front outer antenna (LH) |
| (23) | Rear door lock assembly LH (door switch) |
| (24) | Hands free sensor control unit Refer to REMOVAL AND INSTALLATION . |
| (25) | Hands free sensor |
| (26) | Starter cut relay |
| (A) | View with back side of rear bumper fascia assembly |
| (B) | View with front bumper fascia assembly removed |
