Balance Tube Tests

Remove idle speed adjusting screw block to check for clogging of EGR passage of balance tube. Visually inspect EGR valve mounting flange and balance tube, clean if necessary.

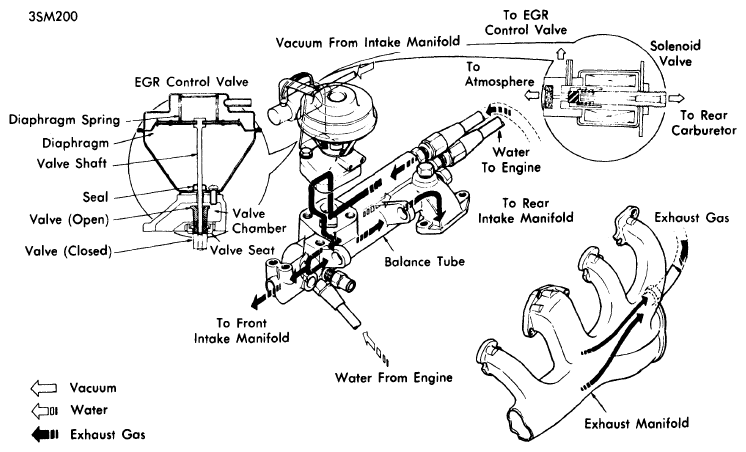

Fig 1: DATSUN EGR SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.
