Throttle Switch

Switch is set on bellcrank of accelerator linkage and operates together with accelerator pedal. Switch is ON when throttle is opened wide.

		Throttle SW	Fourth gear SW	Spark timing
		Throttle SW	Fourth gear SW	"Advance"	"Retard"
Engine start		ON	ON	-	◦
Idling		ON	ON	-	◦
4-speed gear	Partial O.T.	ON	OFF	◦	-
4-speed gear	Wide O.T.	OFF	OFF	◦	-
Except 4-speed gear	Partial O.T.	ON	ON	-	◦
Except 4-speed gear	Wide O.T.	OFF	ON	◦	-

3SM207

SPARK CONTROL SYSTEM OPERATION (MANUAL TRANS.)

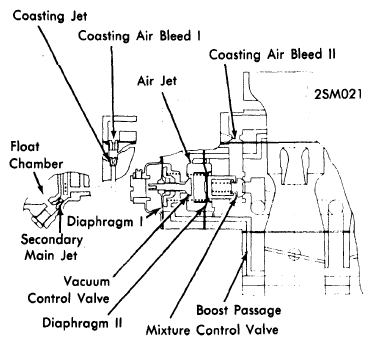

Fig 1: BOOST CONTROLLED DECELERATION DEVICE

G09355035

Courtesy of NISSAN NORTH AMERICA, INC.
