Fuel Shut-Off System

  1. Turn ignition switch "OFF". Disconnect ECC 20-pin connector. Check that there is continuity between terminal 5 and ground with clutch engaged. If not, replace clutch switch.
  2. Check that there is continuity between terminal 4 and ground with transmission in Neutral. If not, replace neutral switch.

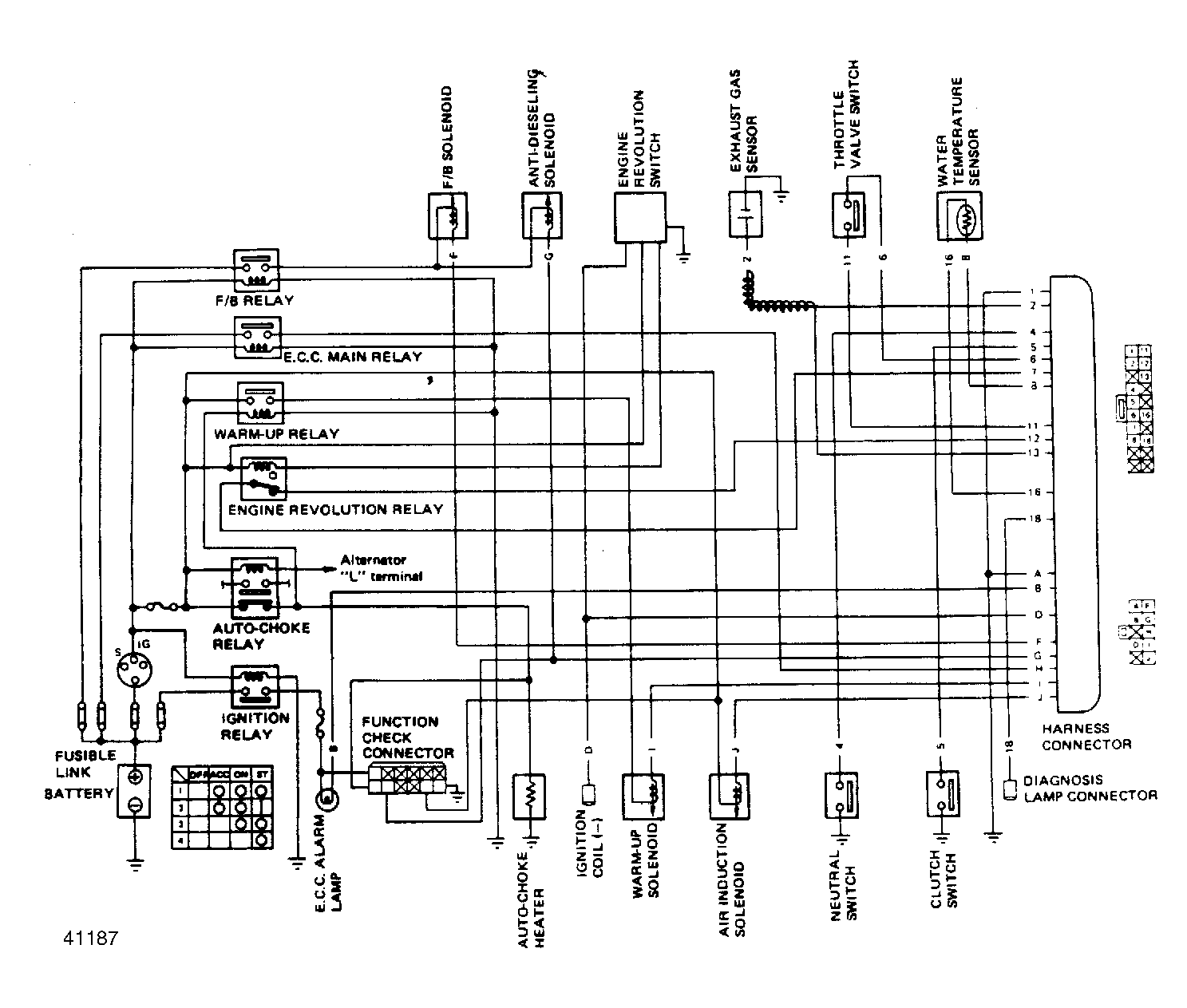

Fig 1: Sentra M.P.G. Electronically Controlled Carb. (ECC) Schematic
G41187
