Torque Specifications
TORQUE SPECIFICATIONS (STEERING GEAR)
| Application |
Ft. Lbs. (N.m) |
| Adjusting Screw Lock Nut |
| 300ZX |
29-43 (39-58) |
| Cylinder Lock Nut |
58-80 (79-109) |
| Cylinder Tube |
14-20 (19-27) |
| End Cover |
| Pulsar NX |
47-54 (64-73) |
| Sentra |
47-54 (64-73) |
| 300ZX |
58-80 (79-109) |
| All Others |
69-80 (94-109) |
| Housing Plug |
36-51 (46-69) |
| Lower Joint-to-Pinion Bolt |
17-22 (23-30) |
| Pinion Nut |
14-19 (19-26) |
| Rear Housing Lock Nut |
| 300ZX |
58-101 (79-137) |
| Retainer Cover Bolt |
12-15 (16-20) |
| Steering Gear Mount Bracket Bolt |
| 300ZX |
29-36 (39-49) |
| All Others |
54-72 (73-98) |
| Tie Rod Inner Socket |
58-72 (79-98) |
| Tie Rod Lock Nut |
| 300ZX |
58-72 (79-98) |
| All Others |
27-34 (37-46) |
| Tie Rod-to-Steering Knuckle Nut |
| All Others |
22-29 (30-39) |
| Rear Housing Lock Nut |
| 300ZX |
58-101 (79-137) |
| INCH Lbs. (N.m) |
| Adjusting Screw Lock Nut |
| Except 300ZX |
84-132 (9-15) |
| Rear Housing-to-Pinion Housing Bolt |
| 300ZX |
72-108 (8-12) |

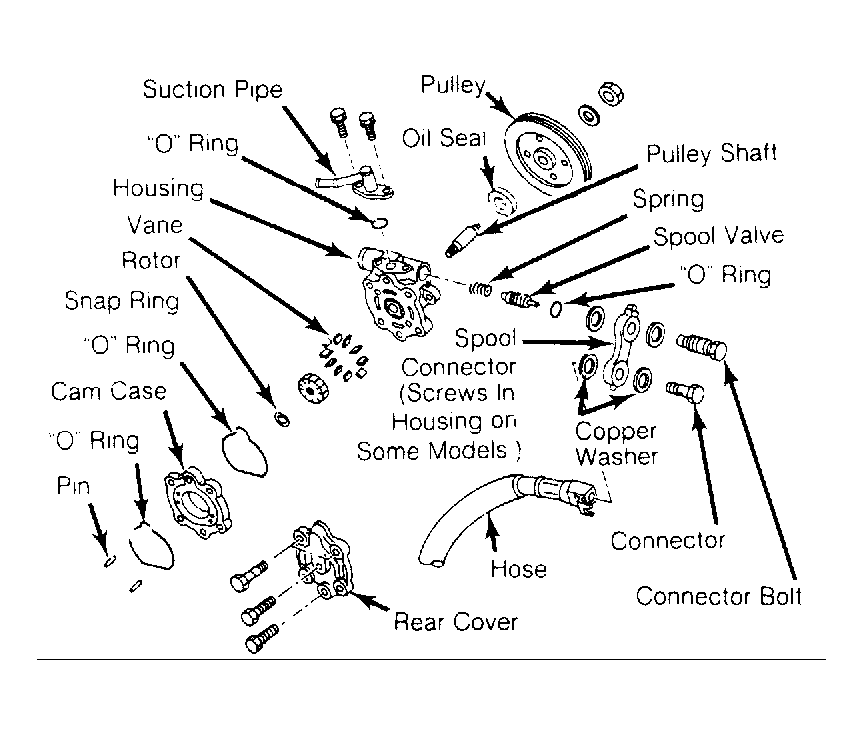

TORQUE SPECIFICATIONS (POWER STEERING PUMP)
| Application |
Ft. Lbs. (N.m) |
| Connector Bolt |
| Maxima & Stanza |
51-58 (69-79) |
| All Others |
36-51 (49-69) |
| Pulley Nut |
| Sentra |
23-31 (31-42) |
| All Others |
40-50 (54-68) |
| Rear Cover Bolt |
| Pulsar NX |
28-38 (38-51) |
| Stanza & 300ZX |
23-31 (31-42) |
| Maxima |
12-15 (16-20) |
| Sentra |
| Bolt No. 1 |
28-38 (38-51) |
| Bolt No. 2 |
12-15 (16-20) |
| Bolt No. 3 |
23-31 (31-42) |
| Reservoir Tank Bolt |
| Pulsar NX & Sentra |
12-15 (16-20) |
| Spool Connector |
51-58 (69-79) |
| Suction Pipe Bolt |
| Pulsar NX, Stanza & Maxima |
10-13 (14-18) |
| INCH Lbs. (N.m) |
| Suction Pipe Bolt |
| 300ZX |
72-108 (8-12) |
