Amplifier (Driver's Window Switch)

Check power source and ground continuity as indicated in test charts. Check input and output signals. See Fig 1 . Replace driver's window switch/amplifier as necessary.

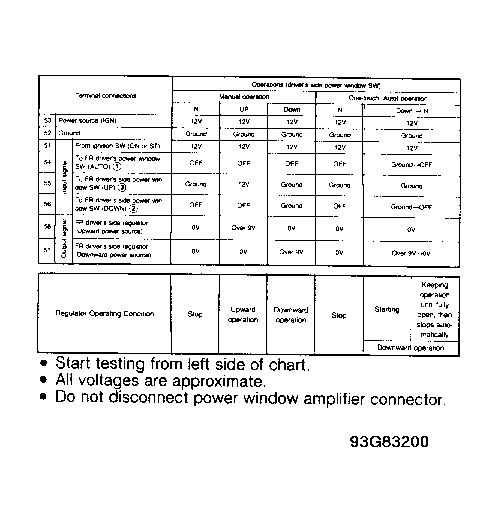

Fig 1: Testing Driver's Window Switch Amplifier

Courtesy of NISSAN MOTOR CO., U.S.A.
