Component Testing: Relays: Notes

Relay (large 5-pin) is mounted actuator. Continuity should not be present between relay terminals No. 30 and 87. See Fig 1 . Apply battery voltage between terminals No. 85 and 86. Continuity should now be present between terminals No. 30 and 87.

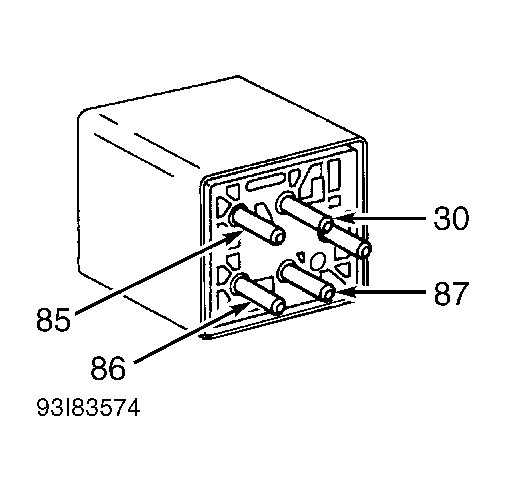

Fig 1: Identifying Actuator Motor Relay Terminals (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.
