Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
ABS Relay Unit On left side of engine compartment.

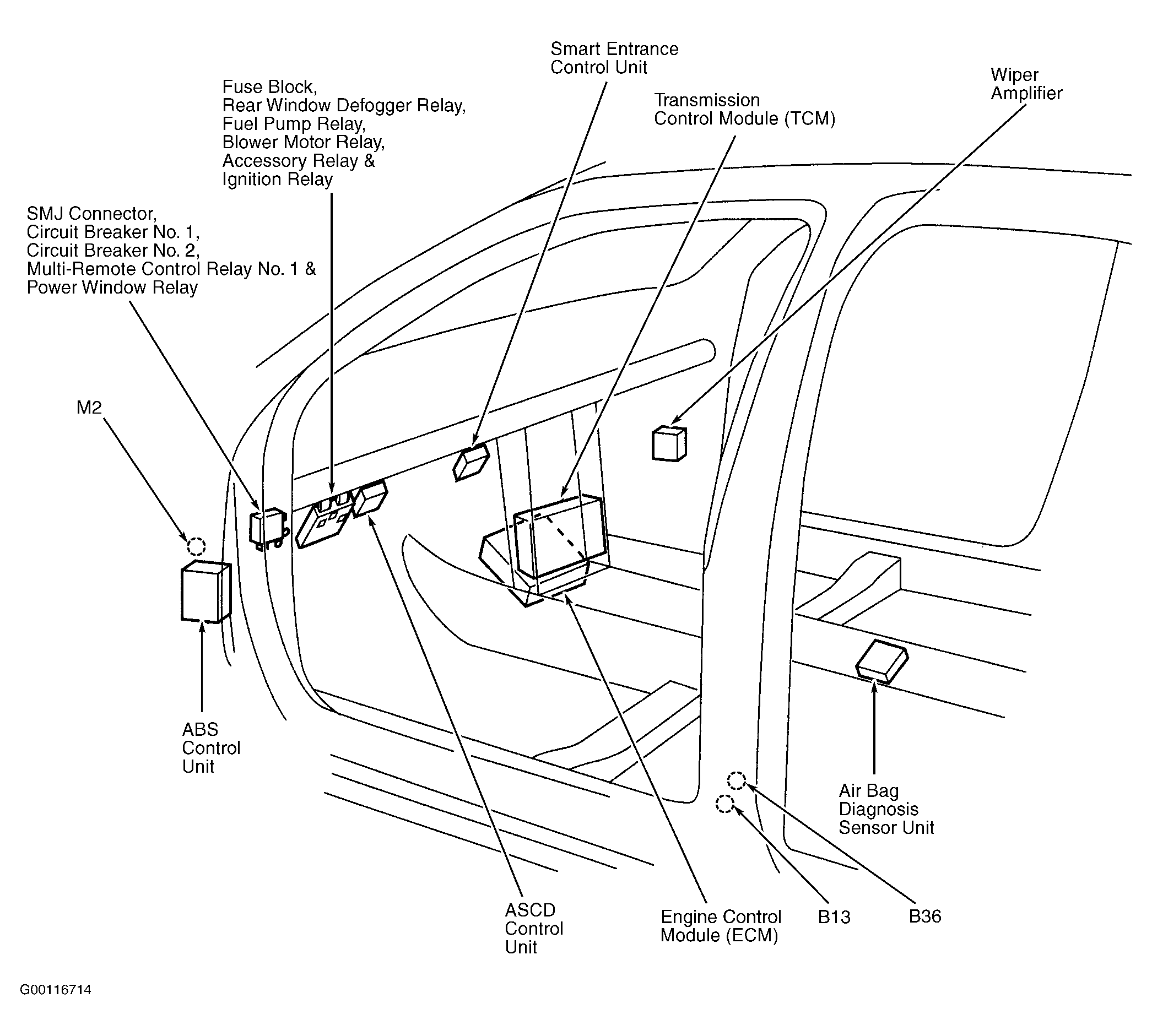

Circuit Breaker No. 1 Behind left side of dash. See Figure.
Circuit Breaker No. 2 Behind left side of dash. See Figure.
Fuse Block Under left side of dash. See Figure.

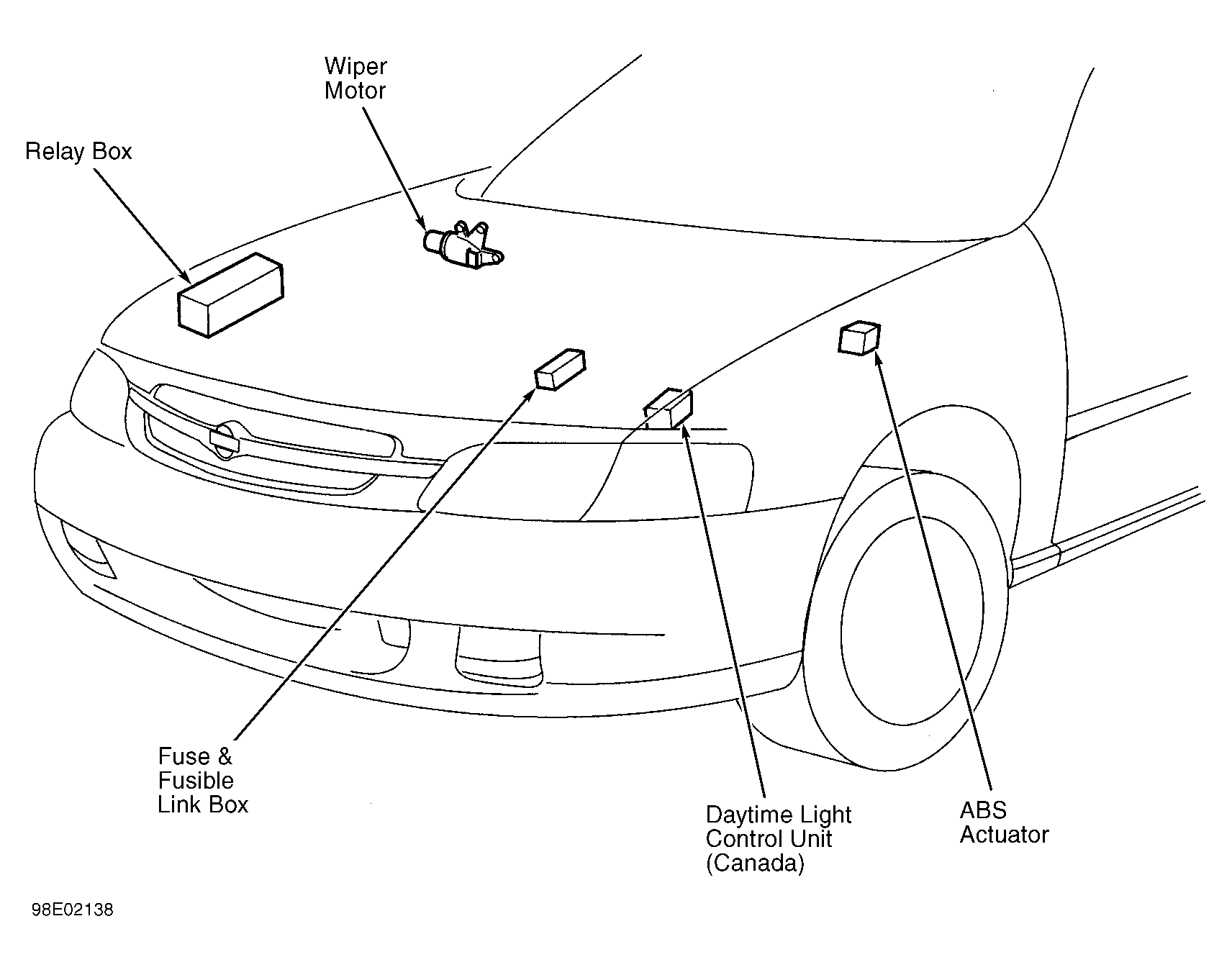

Fuse & Fusible Link Box On left side of engine compartment. See Figure.

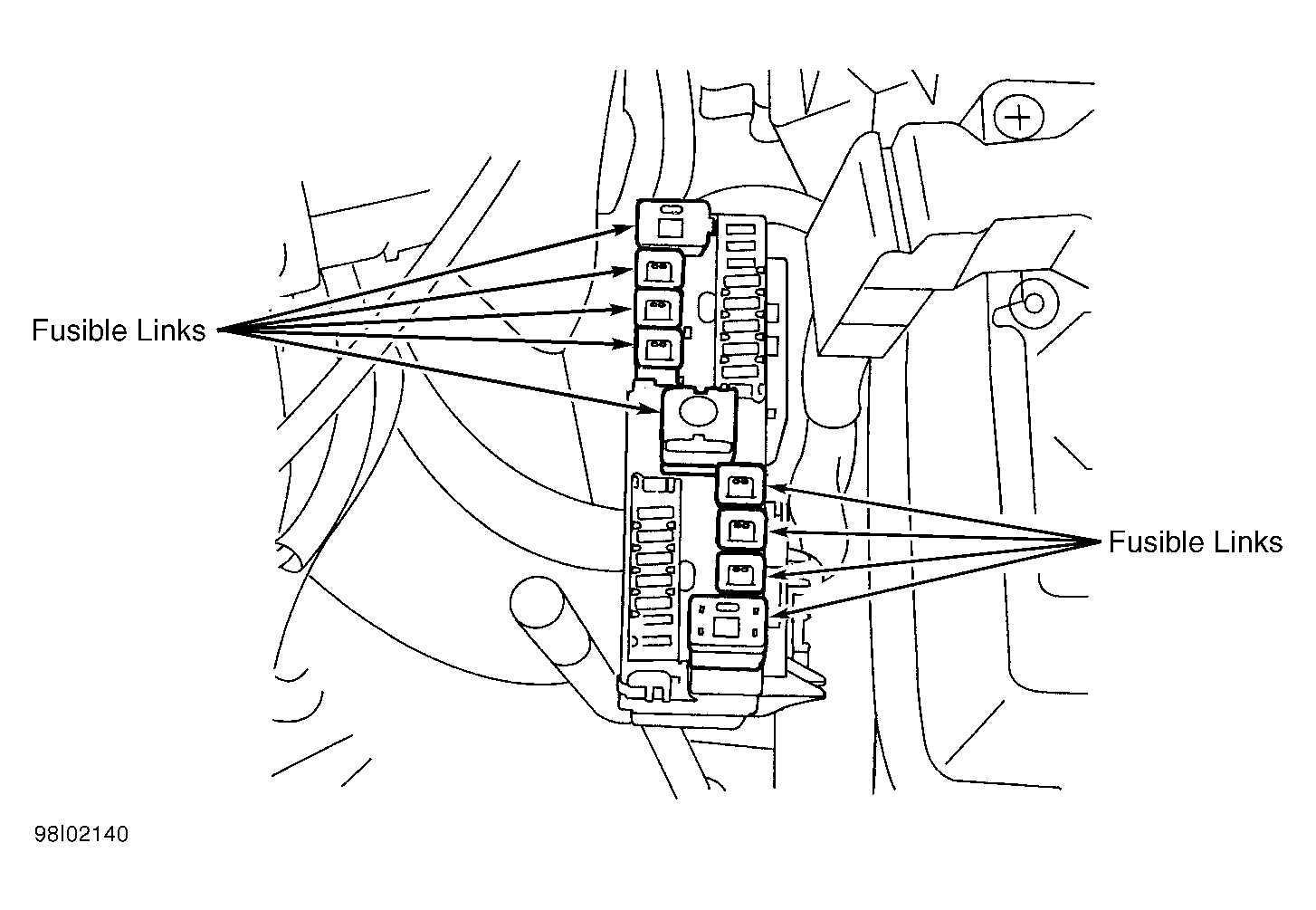

Fusible Links In fuse & fusible link box. See Figure.
Relay Box On right side of engine compartment. See Figure.
