Starters - BOSCH: Overhaul

NOTE: See Fig 1 for overhaul reference.

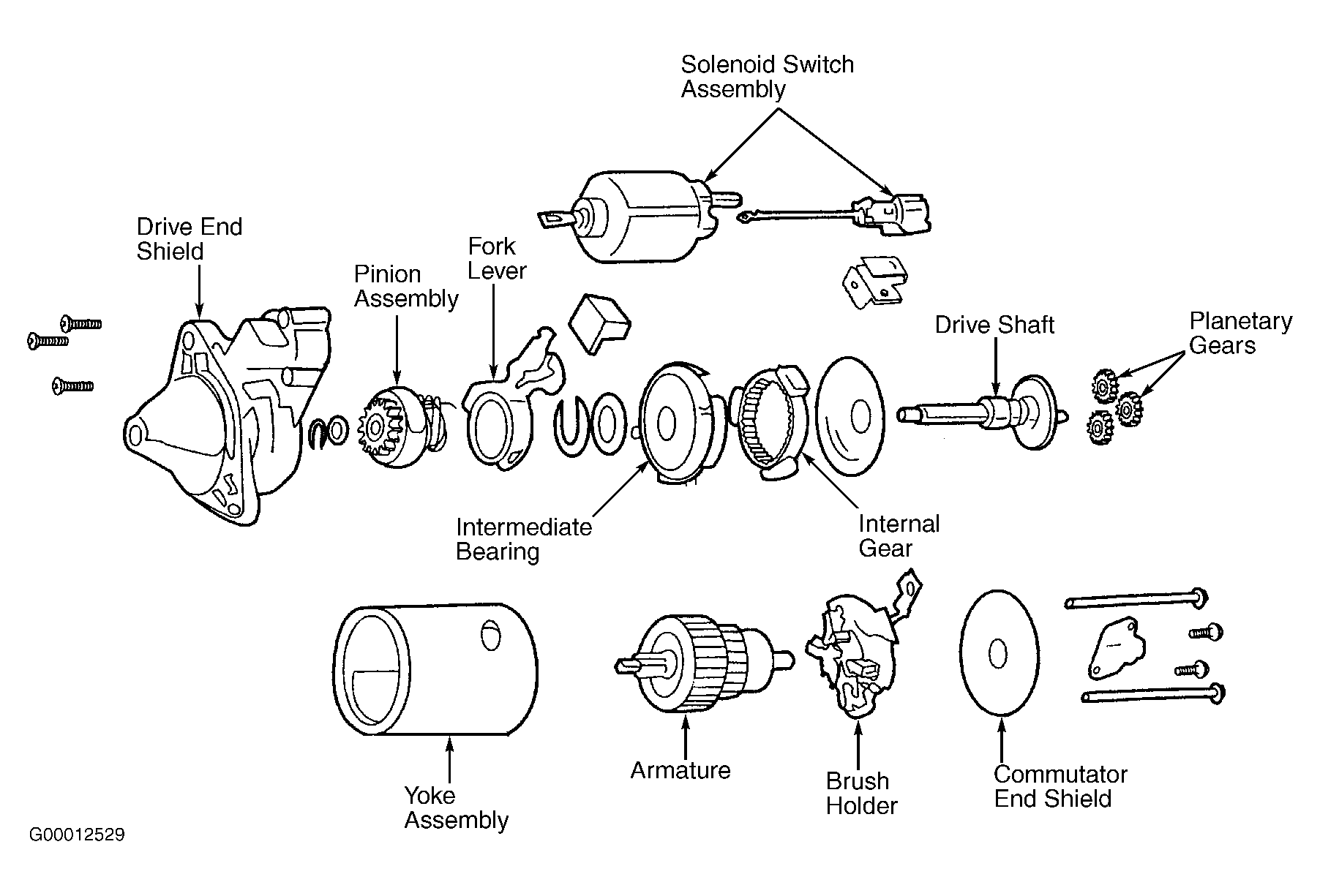

Fig 1: Exploded View Of Starter
G00012529Courtesy of NISSAN MOTOR CO., U.S.A.
