Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground M68	Behind Right Lower Dash Finisher, See Fig 1
Body Ground M105	Behind Left Lower Dash Finisher, See Fig 2
Body Ground M130	Behind Left Rear Lower Side Garnish Finisher, See Fig 3
Circuit Breaker-1 & Power Window Relay	Behind Left Lower Kick Panel, See Fig 4
Fuse Block (J/B)	Behind Left Side Of Dash, See Fig 5
Fuse & Fusible Link Box	Under Hood, In Front Left Corner Of Engine Compartment, See Fig 6
Power Window Main Switch	On Front Left Arm Rest, See Fig 7
Smart Entrance Control Unit	Behind Left Side Of Dash, See Fig 8

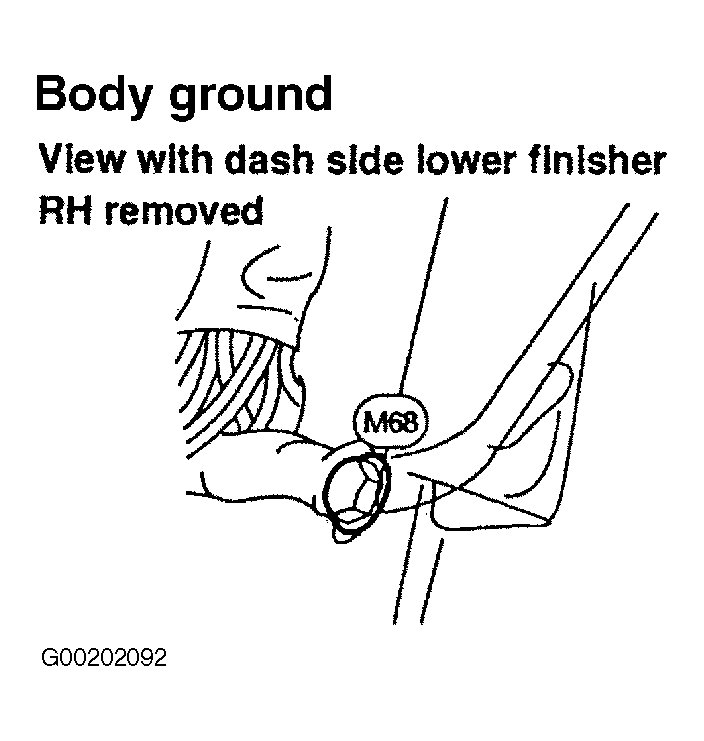

Fig 1: Locating Body Ground M68

G00202092

Courtesy of NISSAN MOTOR CO., U.S.A.

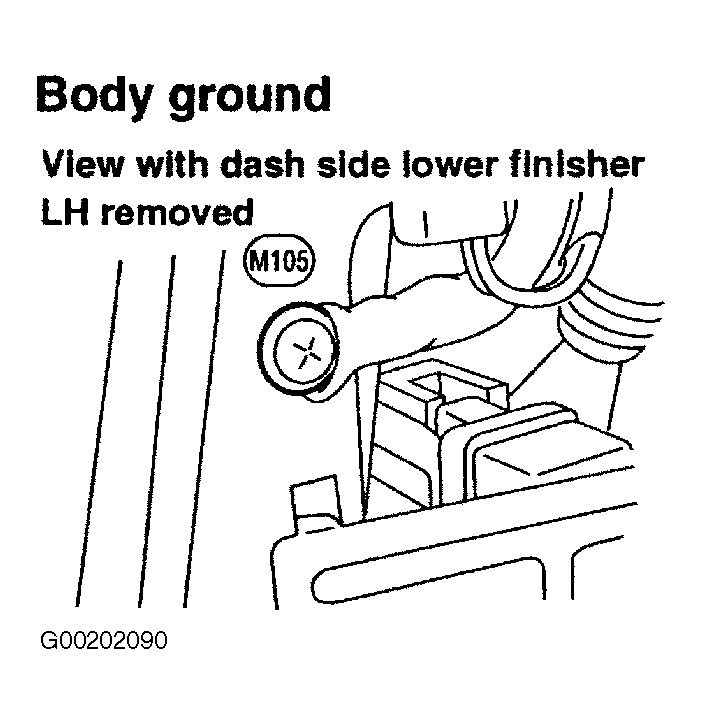

Fig 2: Locating Body Ground M105

G00202090

Courtesy of NISSAN MOTOR CO., U.S.A.

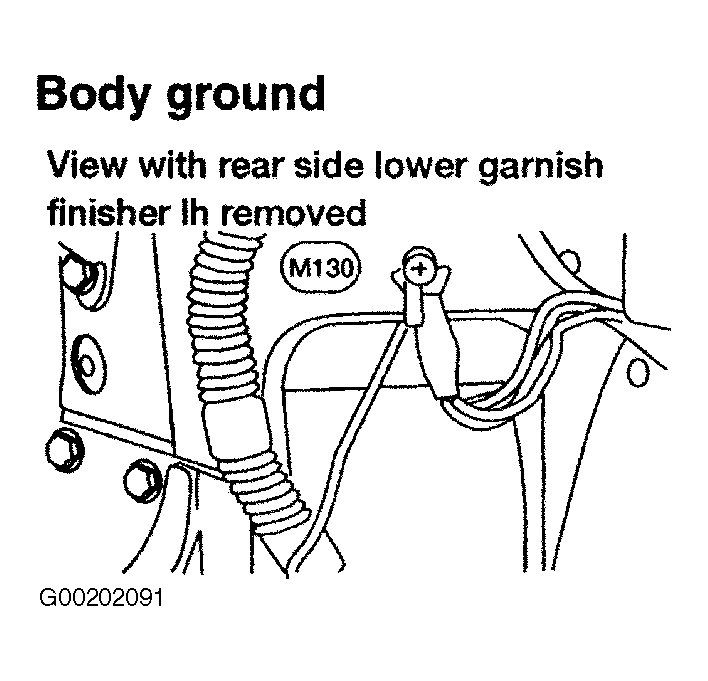

Fig 3: Locating Body Ground M130

G00202091

Courtesy of NISSAN MOTOR CO., U.S.A.

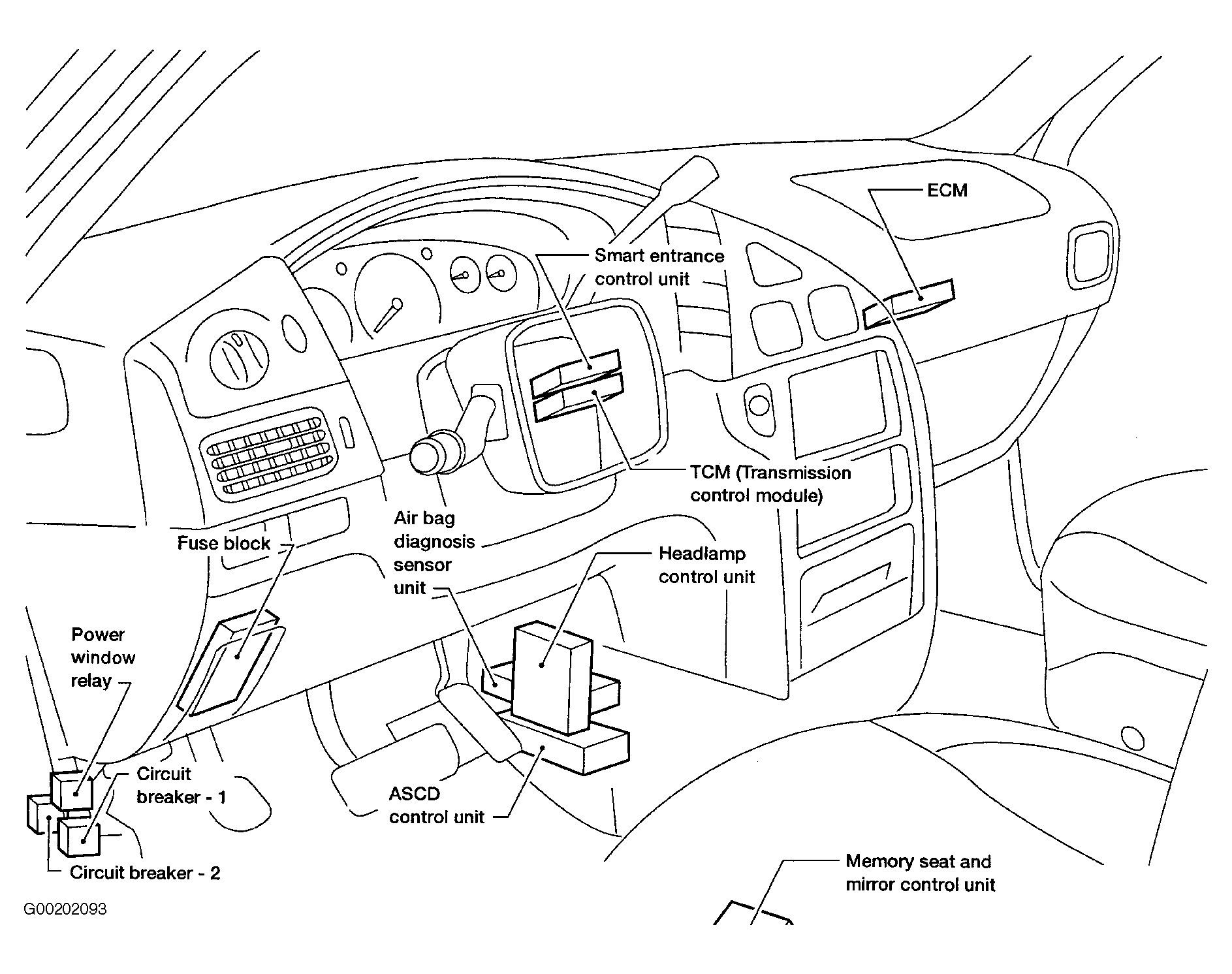

Fig 4: Locating Circuit Breaker-1 & Power Window Relay

G00202093

Courtesy of NISSAN MOTOR CO., U.S.A.

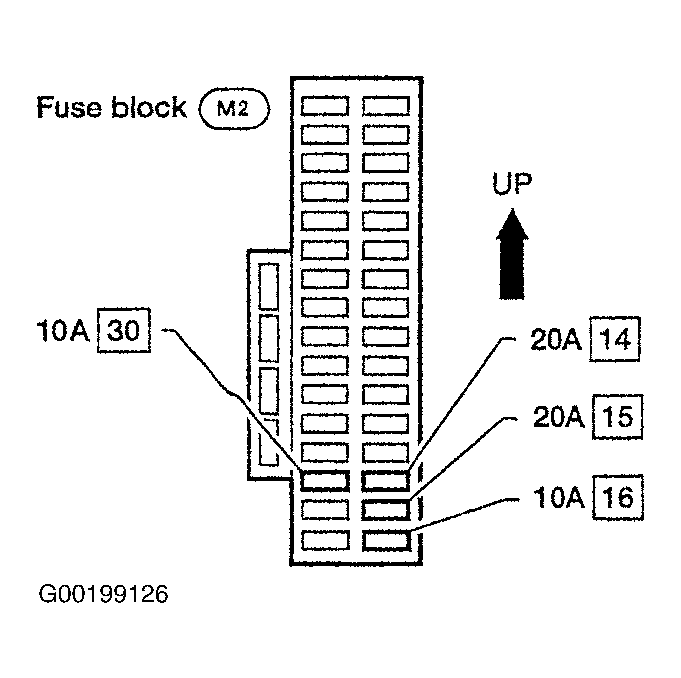

Fig 5: Locating & Identifying Fuse Block Fuse Locations

G00199126

Courtesy of NISSAN MOTOR CO., U.S.A.

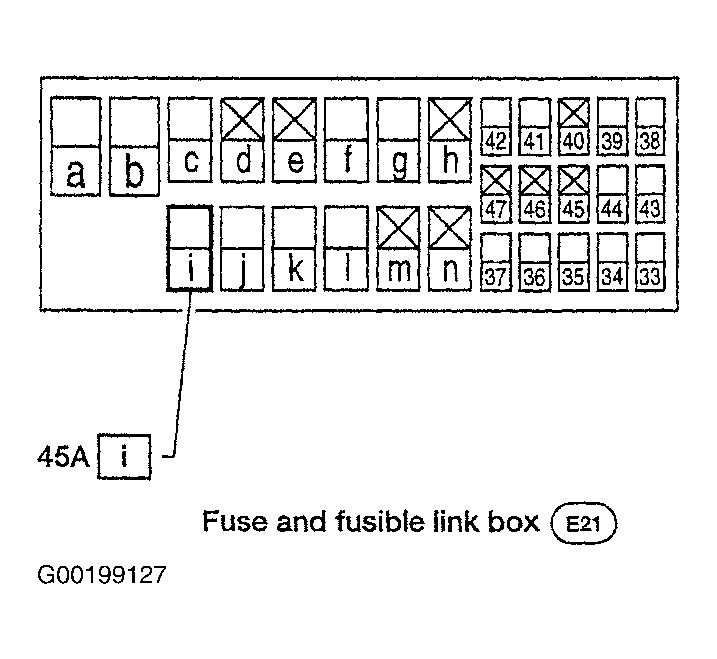

Fig 6: Locating & Identifying Fuse & Fusible Link Locations

G00199127

Courtesy of NISSAN MOTOR CO., U.S.A.

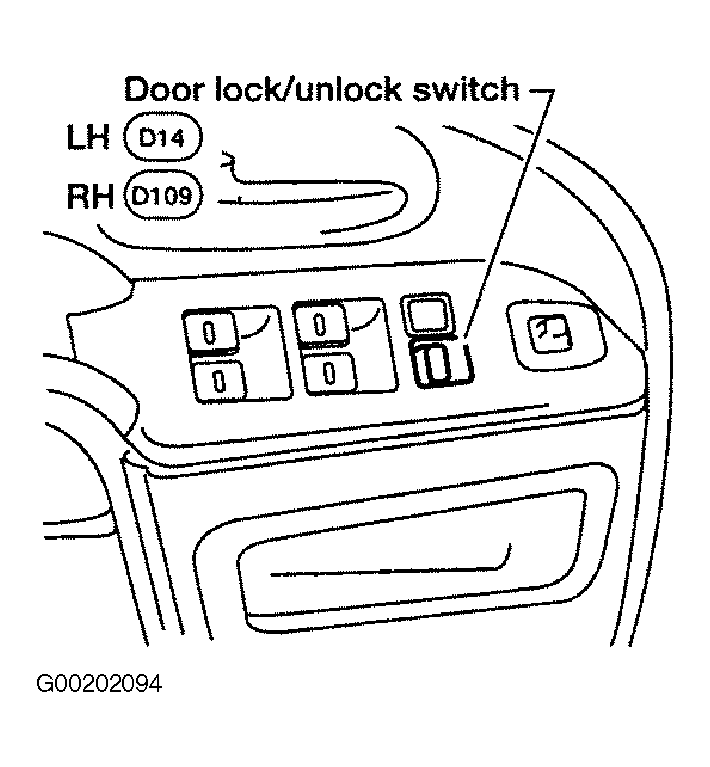

Fig 7: Locating Power Window Main Switch

G00202094

Courtesy of NISSAN MOTOR CO., U.S.A.

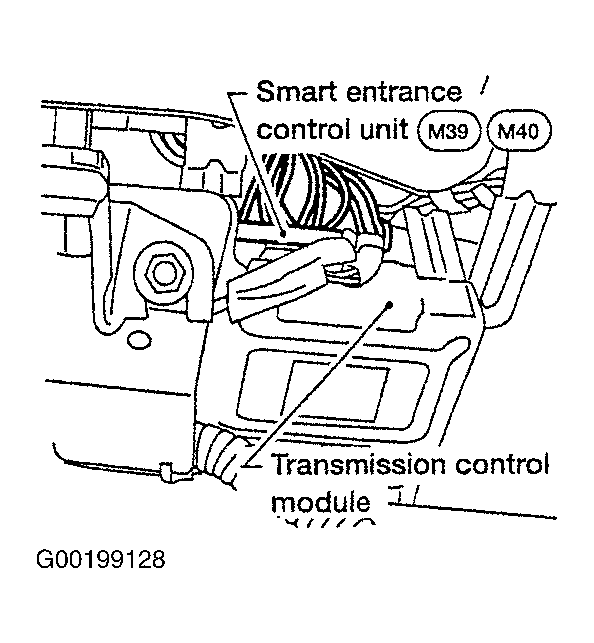

Fig 8: Locating Smart Entrance Control Unit

G00199128

Courtesy of NISSAN MOTOR CO., U.S.A.
