Component Locations

For engine compartment and engine preformance component locations, see Fig 1-Fig 6 .

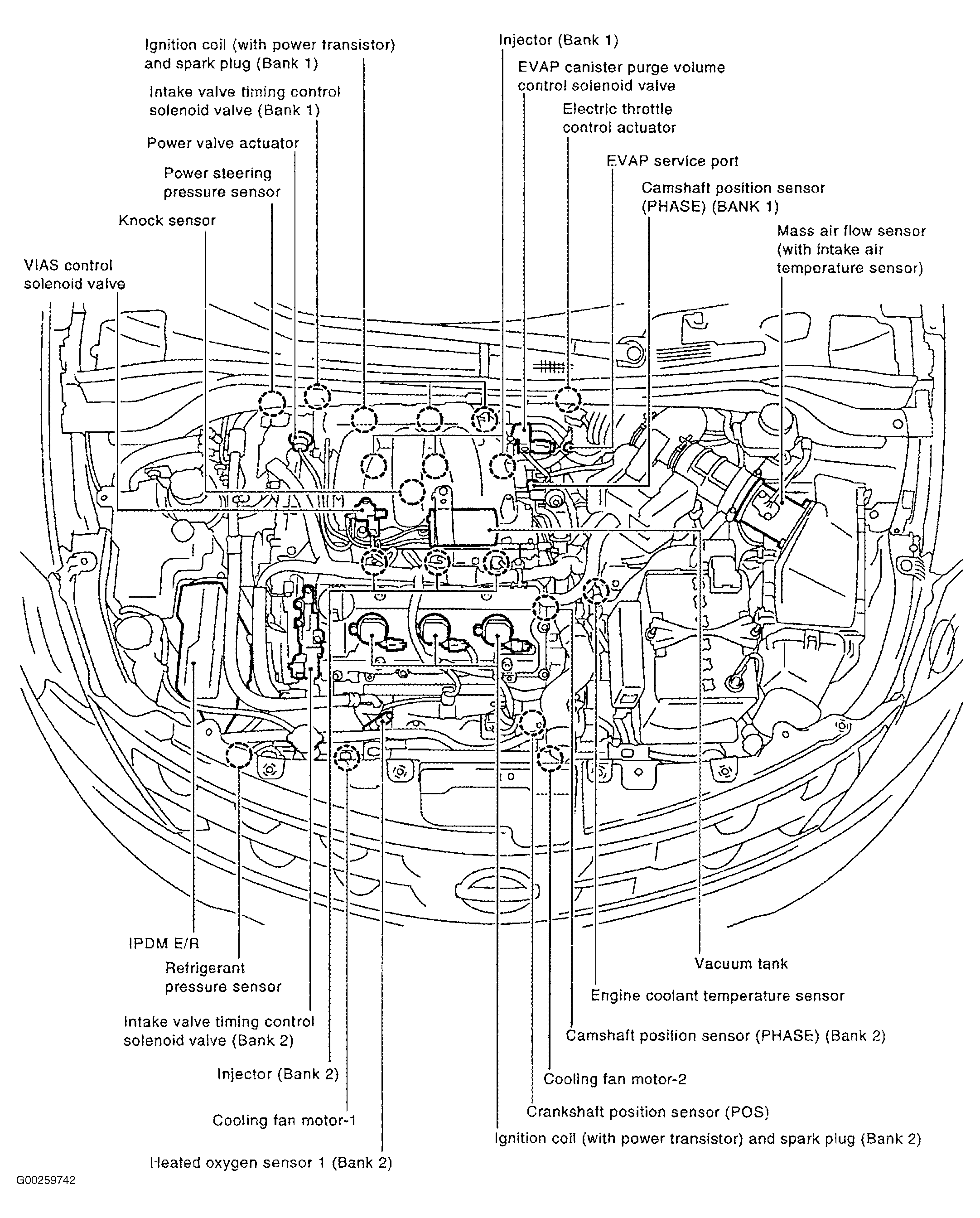

Fig 1: Locating Engine Compartment Components

Courtesy of NISSAN MOTOR CO., U.S.A.

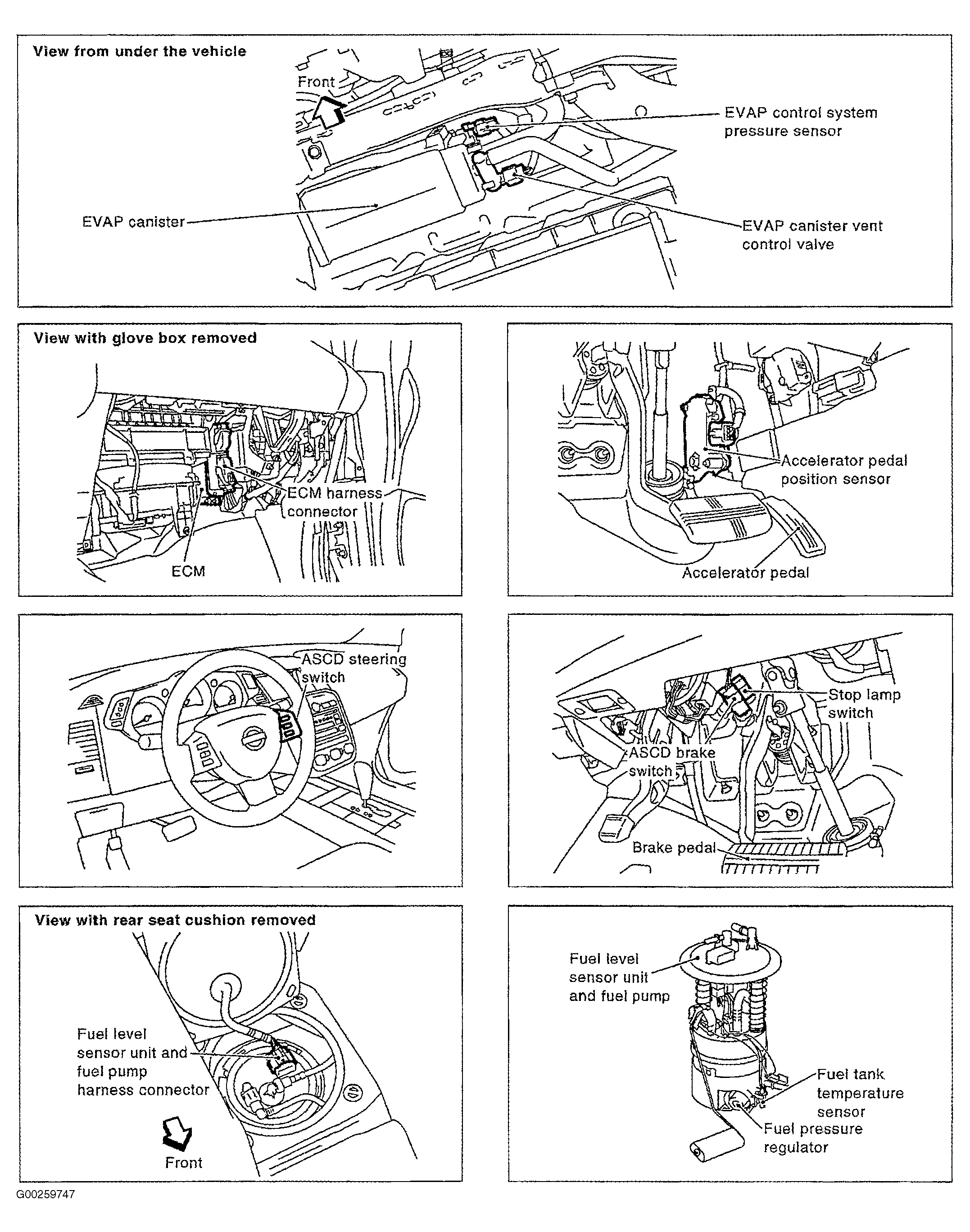

Fig 2: Locating Engine Performance Components (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

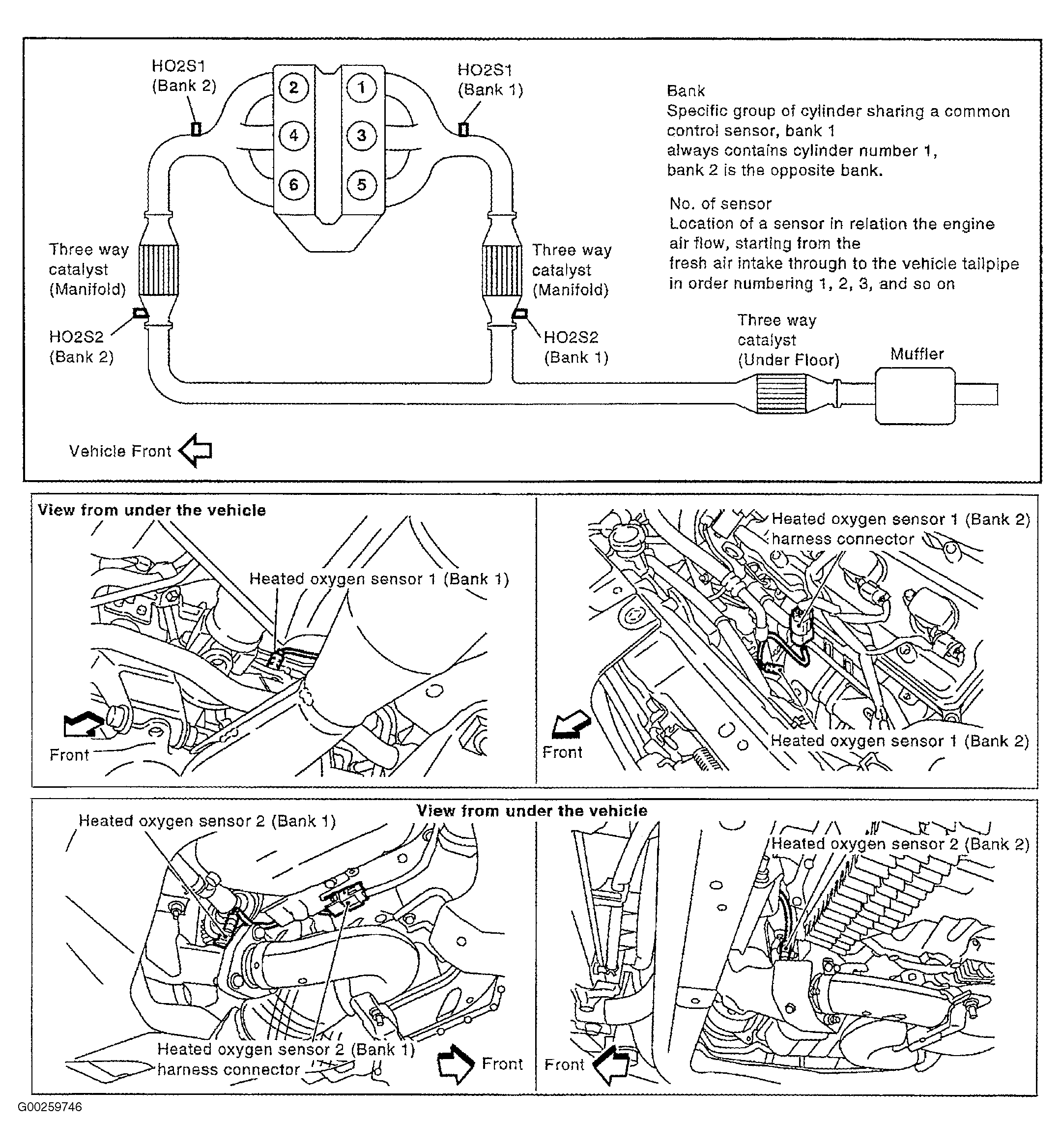

Fig 3: Locating Engine Performance Components (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

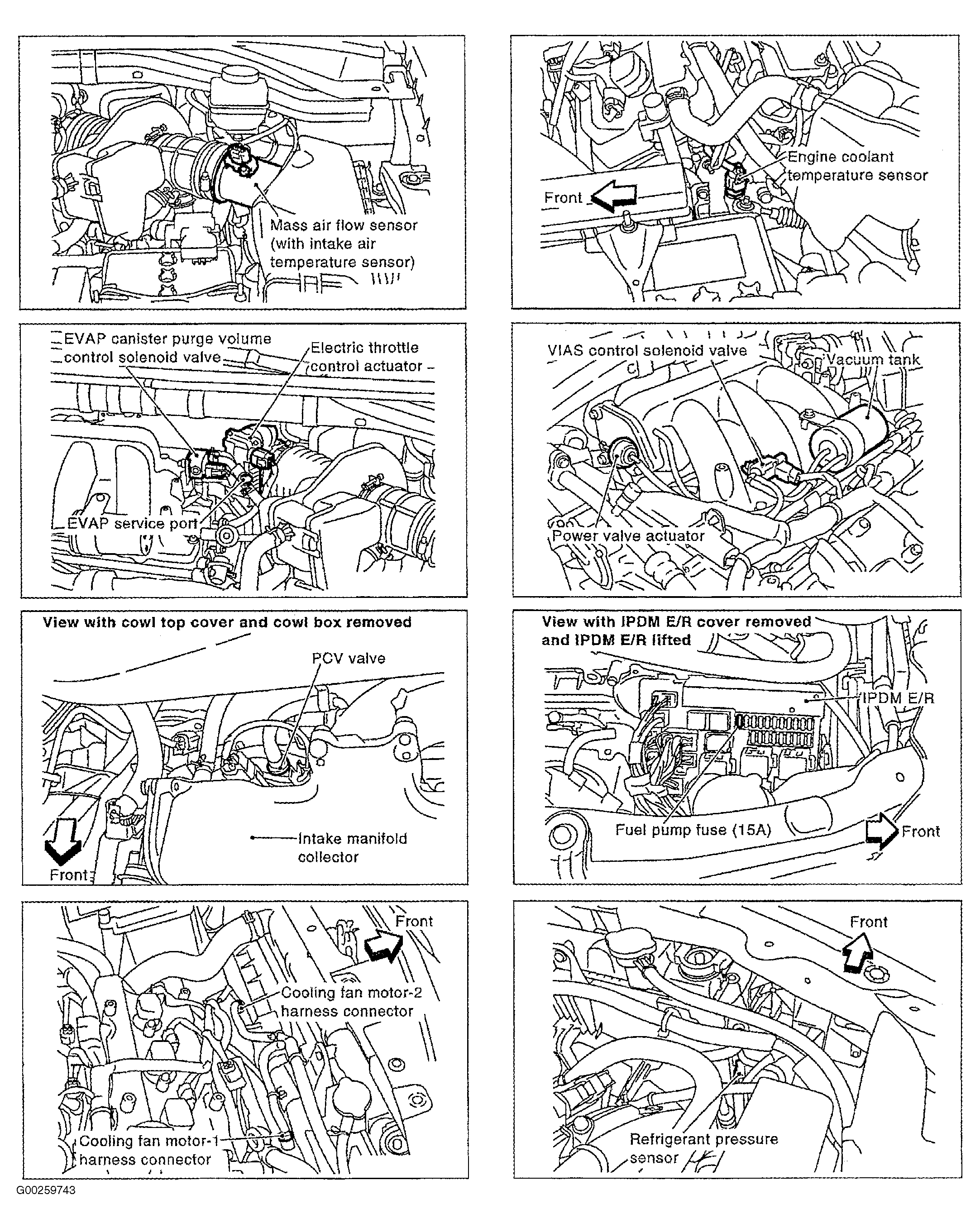

Fig 4: Locating Engine Performance Components (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

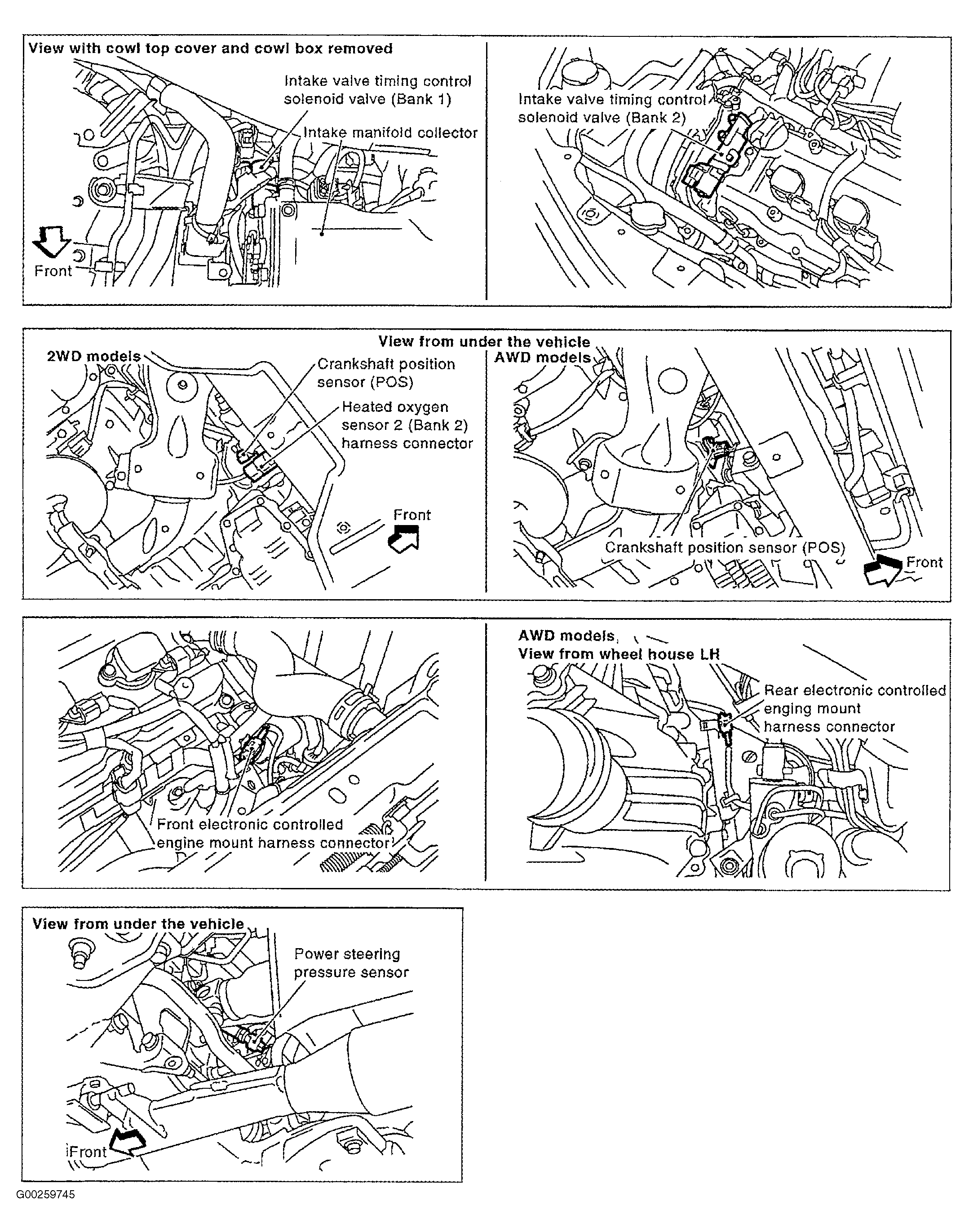

Fig 5: Locating Engine Performance Components (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

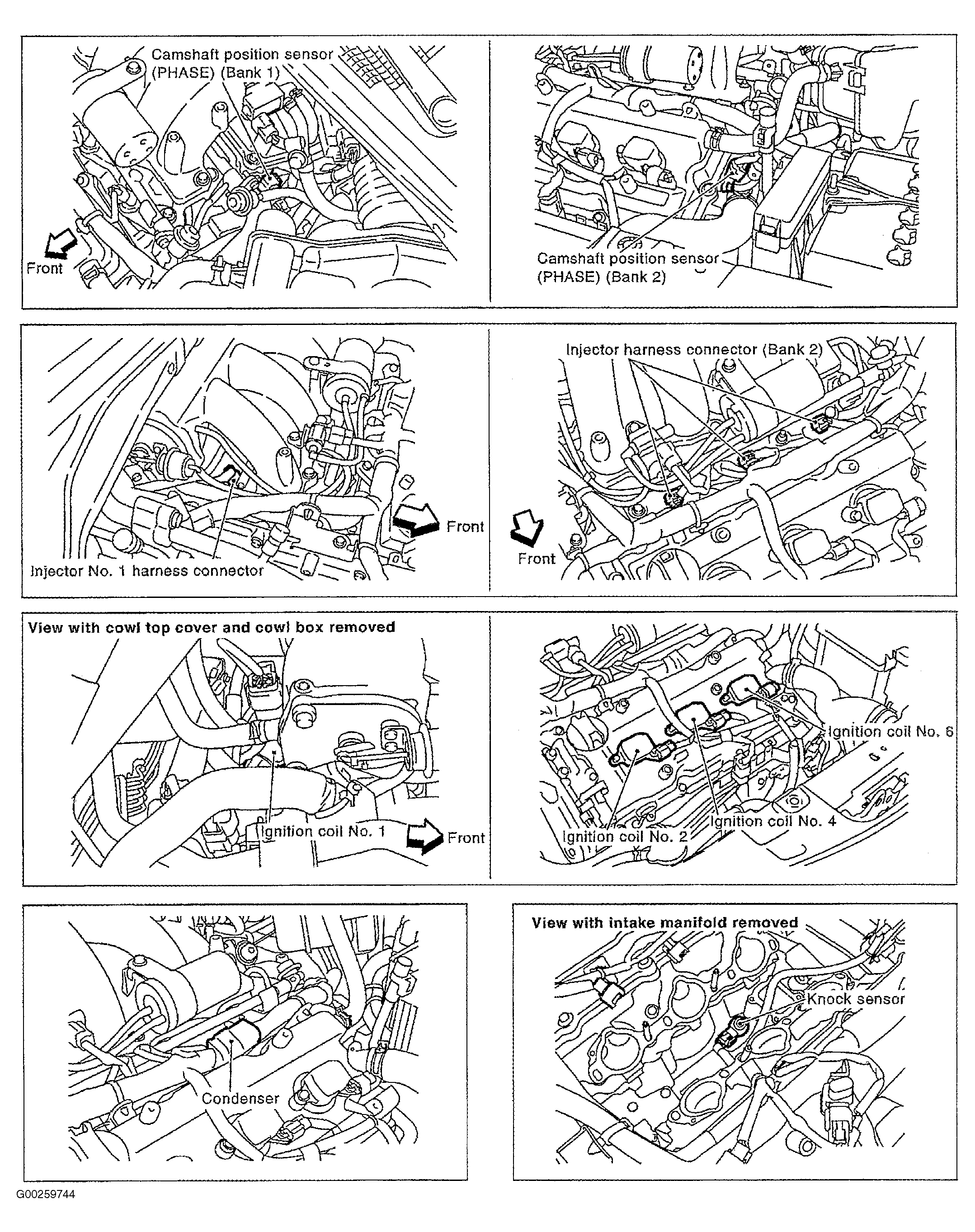

Fig 6: Locating Engine Performance Components (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
