Vehicle Signals
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

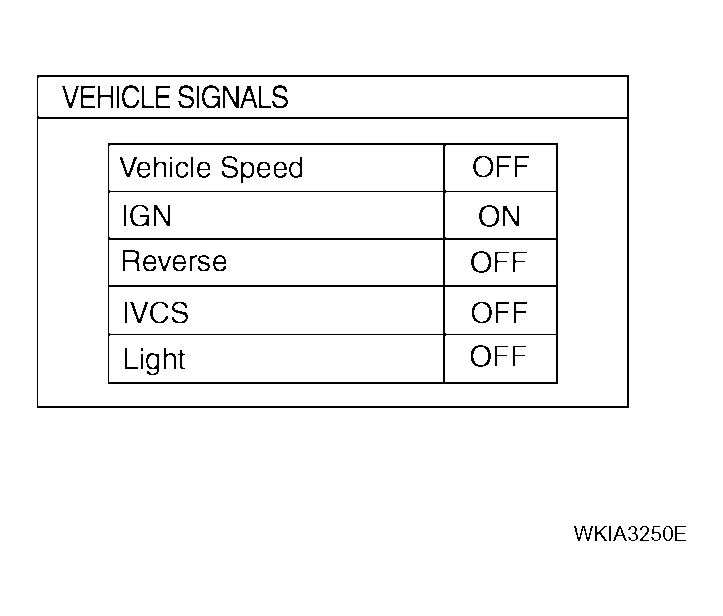

- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
CAUTION:
In case of confirming light signal, set D/N mode to ON/OFF of lighting switch (normal setting).
Unless above setting, light signal (ON/OFF) may not be accurately displayed.
- OFF: D (Day mode)
- ON: N (Night mode)
Unless above setting, light signal (ON/OFF) may not be accurately displayed.
DIAGNOSIS ITEM CONDITION CHART
| Diagnosis item | Display | Condition | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| - | Ignition switch in ACC position | ||
| Light | ON | Lighting switch ON | - |
| OFF | Lighting switch OFF | ||
| IGN | ON | Ignition switch ON | - |
| OFF | Ignition switch ACC |
DIAGNOSIS ITEM CONDITION CHART
| Diagnosis item | Display | Condition | Remarks |
|---|---|---|---|
| Reverse | ON OFF |
Selector lever in R position Selector lever in other than R position |
Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| - | Ignition switch in ACC position | ||
| IVCS | OFF | Not used | - |
- If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR DISPLAY CONTROL UNIT "
- If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT "
- If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR DISPLAY CONTROL UNIT "
- If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR DISPLAY CONTROL UNIT "

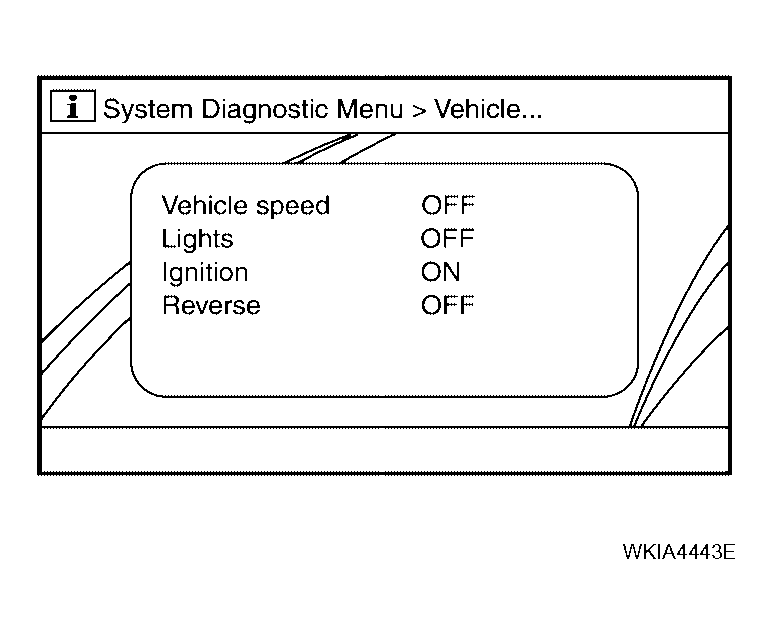

- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
CAUTION:
In case of confirming light signal, set D/N mode to ON/OFF of light switch (normal setting).
Unless mode is in above setting, light signal (ON/OFF) may not be accurately displayed.
- OFF: D (Day mode)
- ON: N (Night mode)
Unless mode is in above setting, light signal (ON/OFF) may not be accurately displayed.
DIAGNOSIS ITEM CONDITION CHART
| Diagnosis item | Display | Condition | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| - | Ignition switch in ACC position | ||
| Lights | ON | Lighting switch ON | - |
| OFF | Lighting switch OFF | ||
| Ignition | ON | Ignition switch ON | - |
| OFF | Ignition switch ACC | ||
| Reverse | ON | Selector lever in R position | Changes in indication may be delayed by approx. 1.5 seconds. This is normal. |
| OFF | Selector lever in other than R position | ||
| - | Ignition switch in ACC position |
- If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR NAVI CONTROL UNIT "
- If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR NAVI CONTROL UNIT "
- If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR NAVI CONTROL UNIT "
- If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR NAVI CONTROL UNIT "
