DTC Confirmation Test (Using Generic Scan Tool)

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: To avoid damage to EVAP system, do not use compressed air. Do not start engine. Do not exceed .6 psi (4.12 kPa).
NOTE: Use the following test to check overall function of EVAP very small leak function. During this test, DTC may not be confirmed.

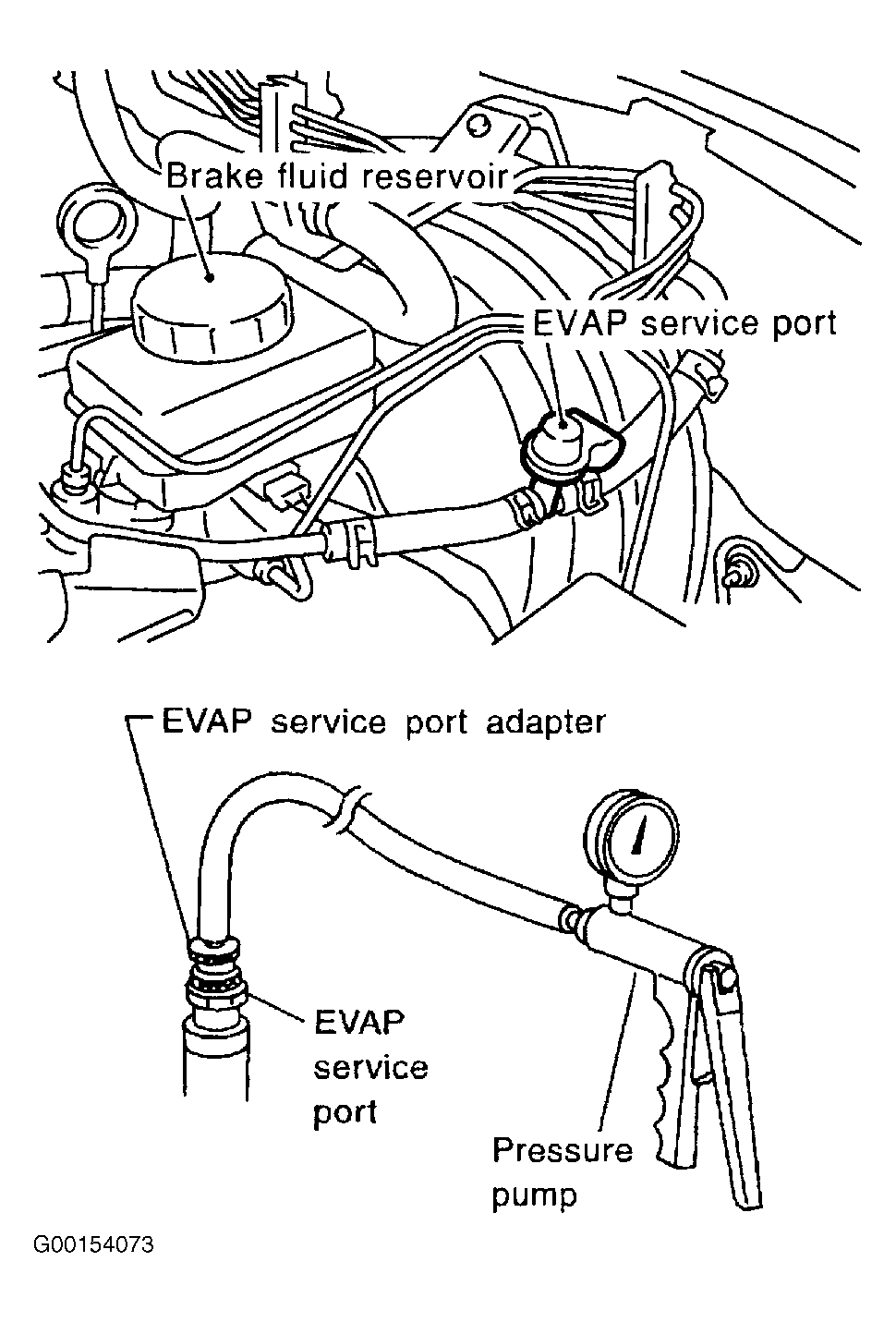

  1. Connect EVAP Service Port Adapter (J41413-OBD) to EVAP service port. See Figure. Connect a suitable pressure pump with hose and gauge to adapter.
  2. Turn ignition on. Using scan tool, select MODE 8 to close EVAP-CVCV and open vacuum cut valve by-pass valve. Apply .79 in. Hg (2.7 kPa) to EVAP system.
  3. Observe gauge for 60 seconds. If pressure drops more than 0.12 in. Hg (.4 kPa), go to DIAGNOSTIC PROCEDURE . If pressure does not drop more than 0.06 psi (.4 kPa), system is okay at this time.
