Component Locations

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for component locations. See Fig 1 .

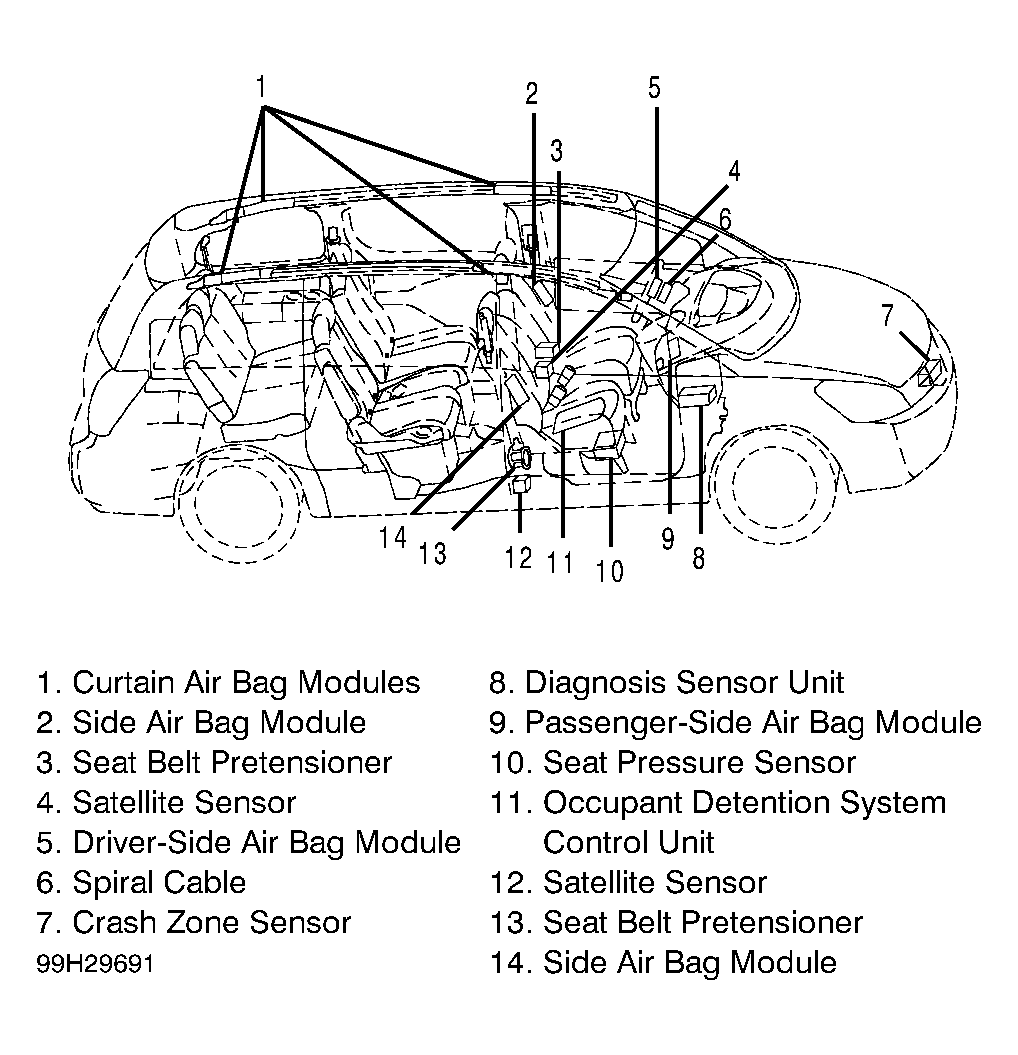

Fig 1: Locating Restraint System Components

Courtesy of NISSAN MOTOR CO., U.S.A.
