DTC P0442: EVAP Control System Small Leak Detected (Negative Pressure)

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If DTC P0441 is also set, perform diagnosis for DTC P0441 first. See DTC P0441: EVAP CONTROL SYSTEM INCORRECT PURGE FLOW .
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 9 .

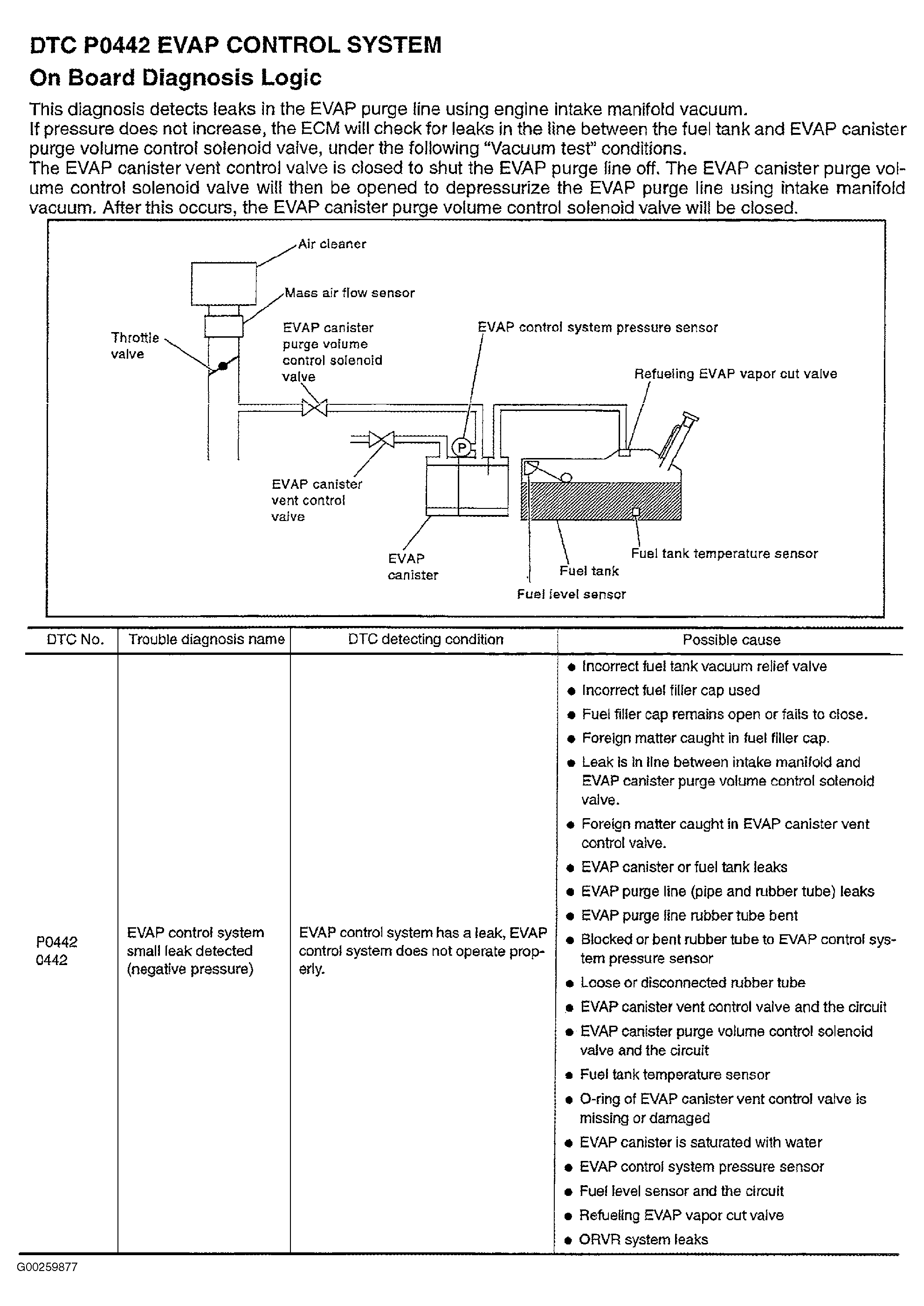

Fig 1: DTC P0442 (1 Of 9)
G00259877Courtesy of NISSAN MOTOR CO., U.S.A.

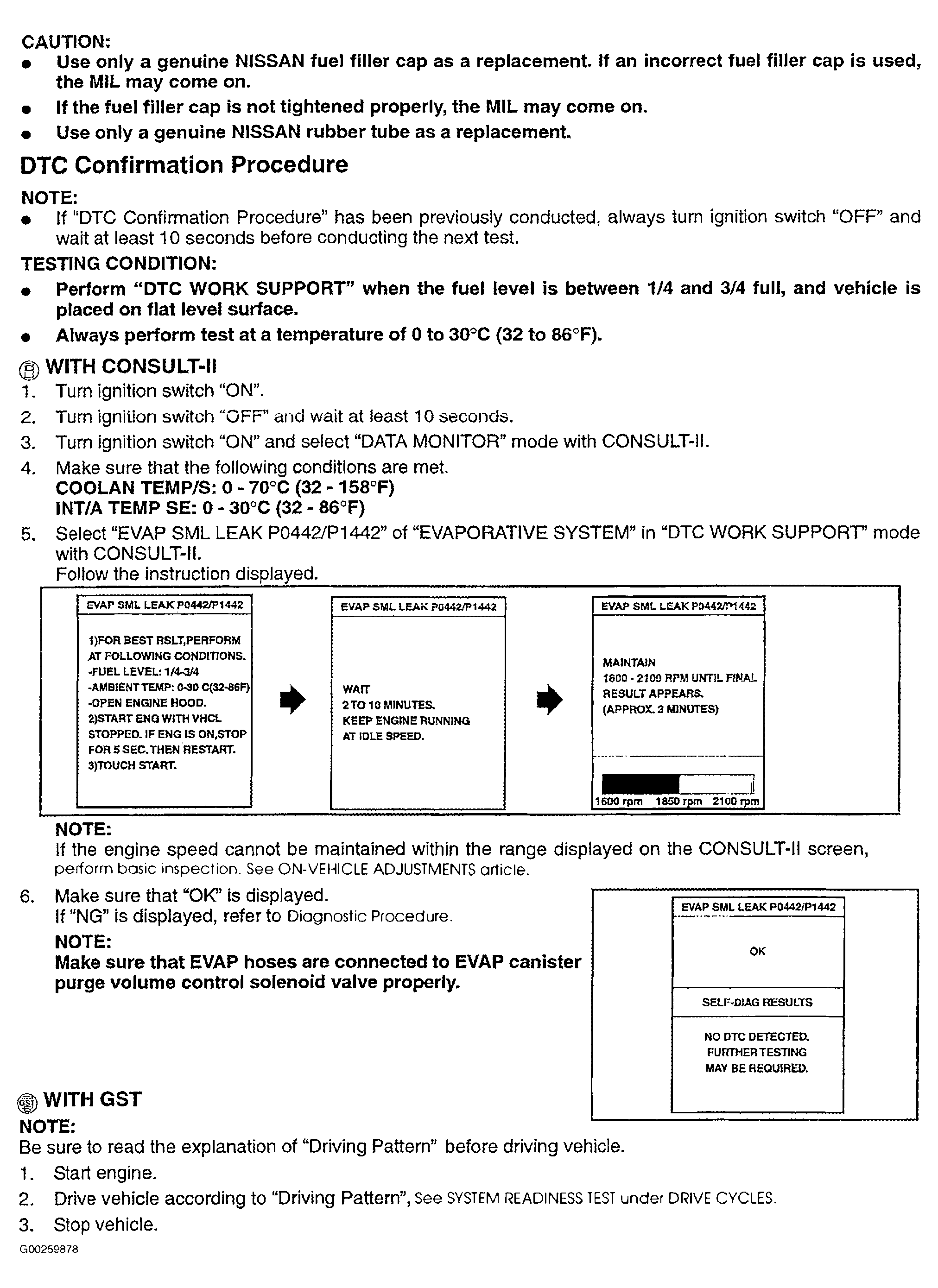

Fig 2: DTC P0442 (2 Of 9)
G00259878Courtesy of NISSAN MOTOR CO., U.S.A.

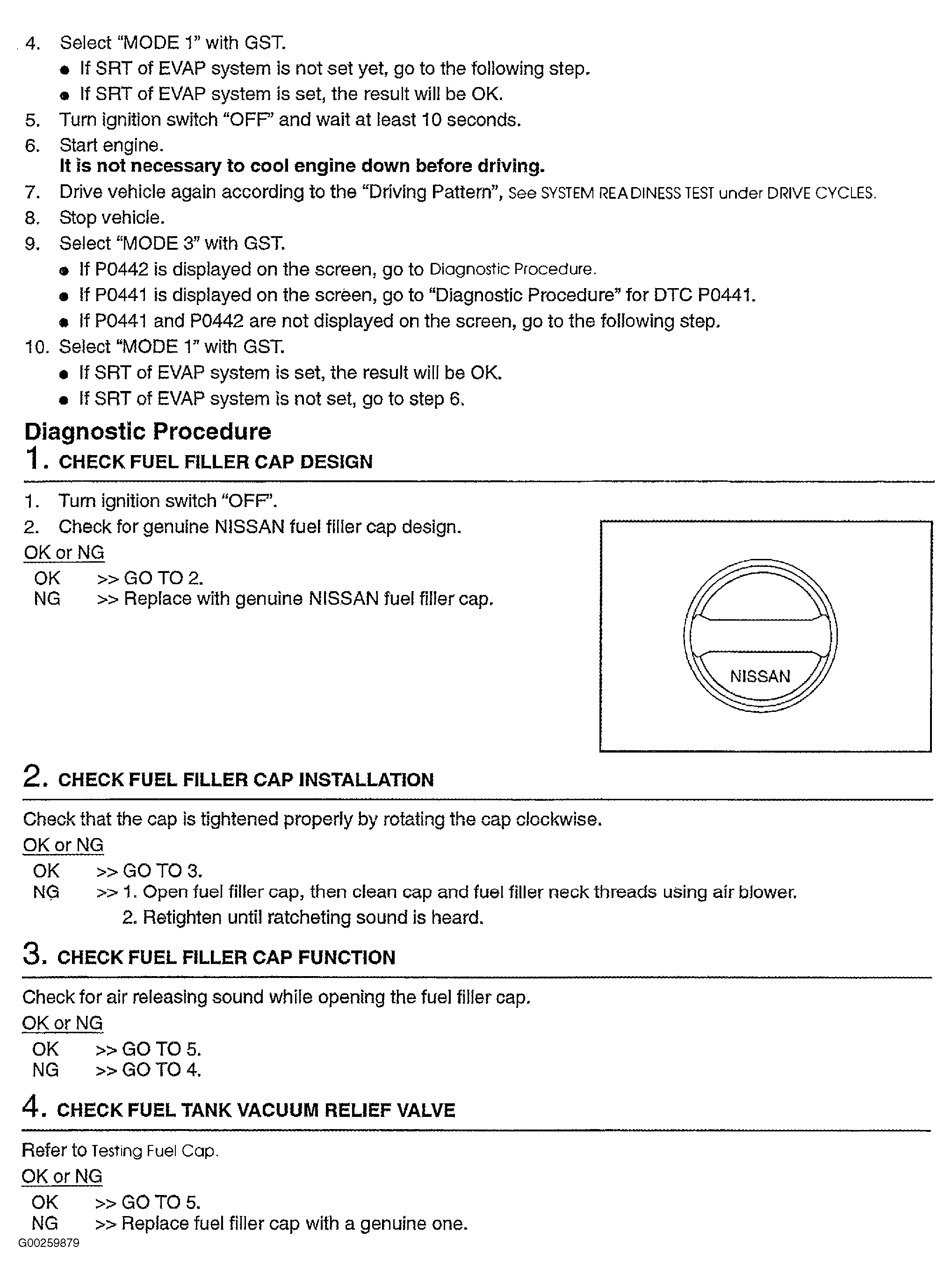

Fig 3: DTC P0442 (3 Of 9)
G00259879Courtesy of NISSAN MOTOR CO., U.S.A.

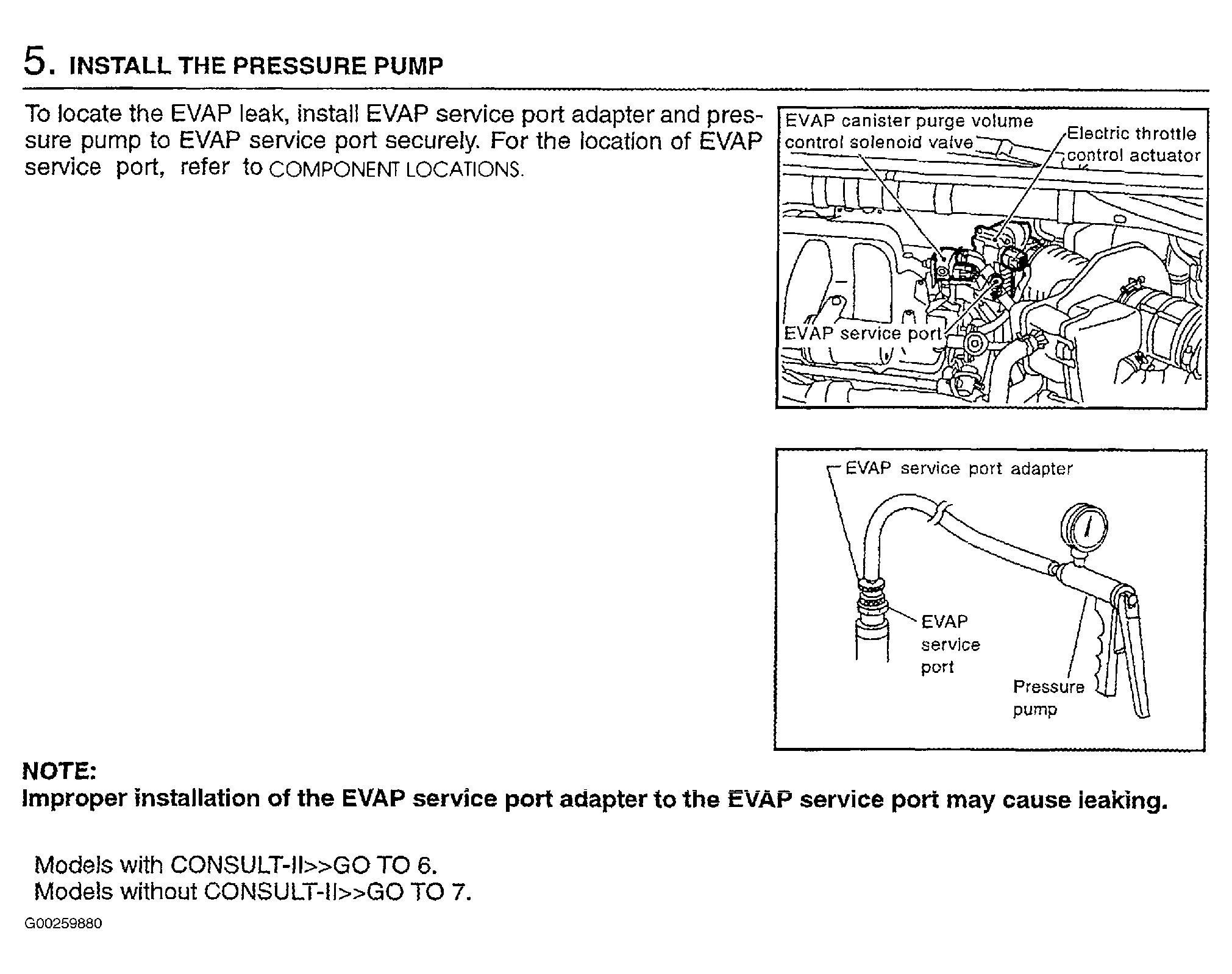

Fig 4: DTC P0442 (4 Of 9)
G00259880Courtesy of NISSAN MOTOR CO., U.S.A.

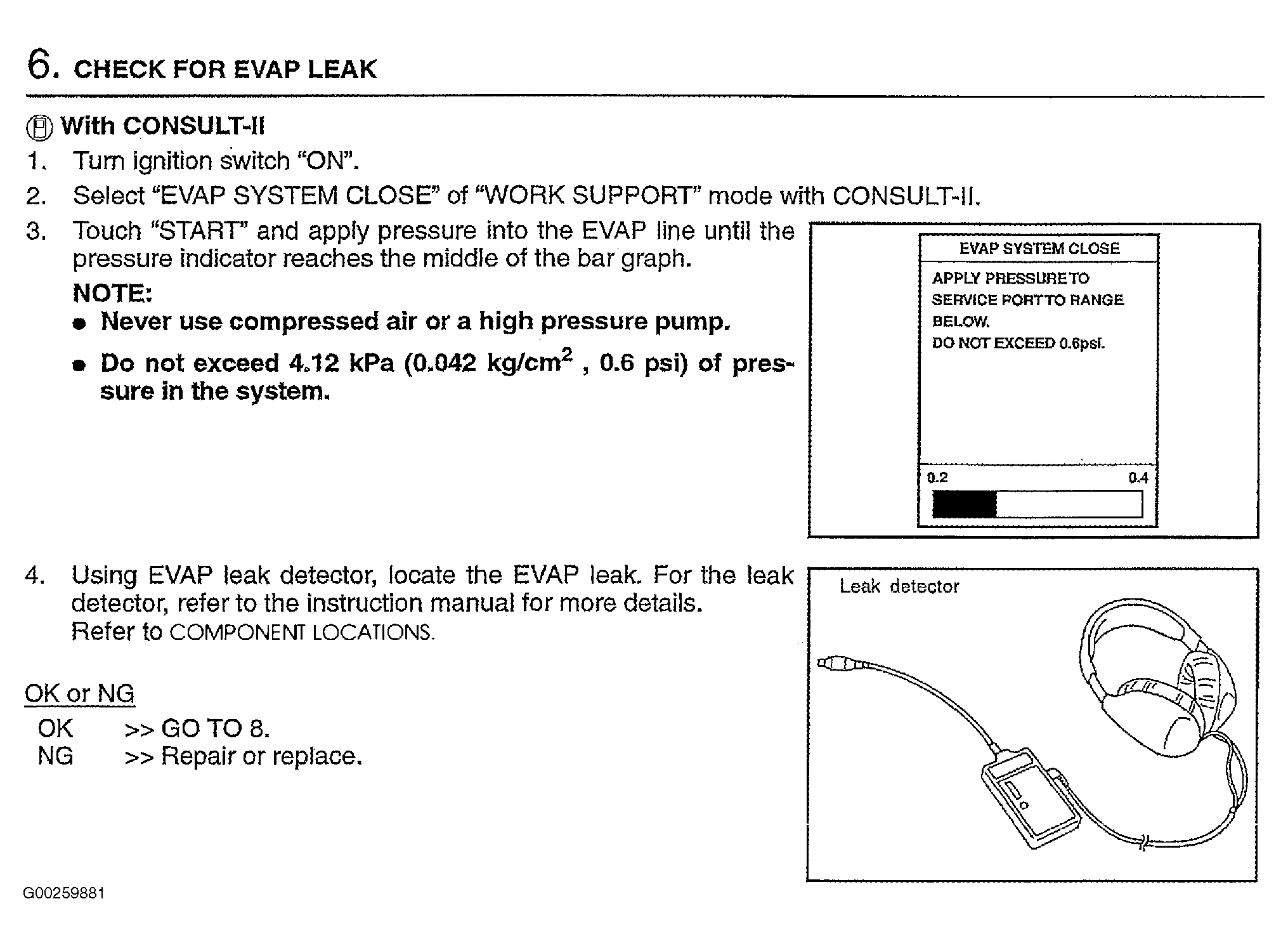

Fig 5: DTC P0442 (5 Of 9)
G00259881Courtesy of NISSAN MOTOR CO., U.S.A.

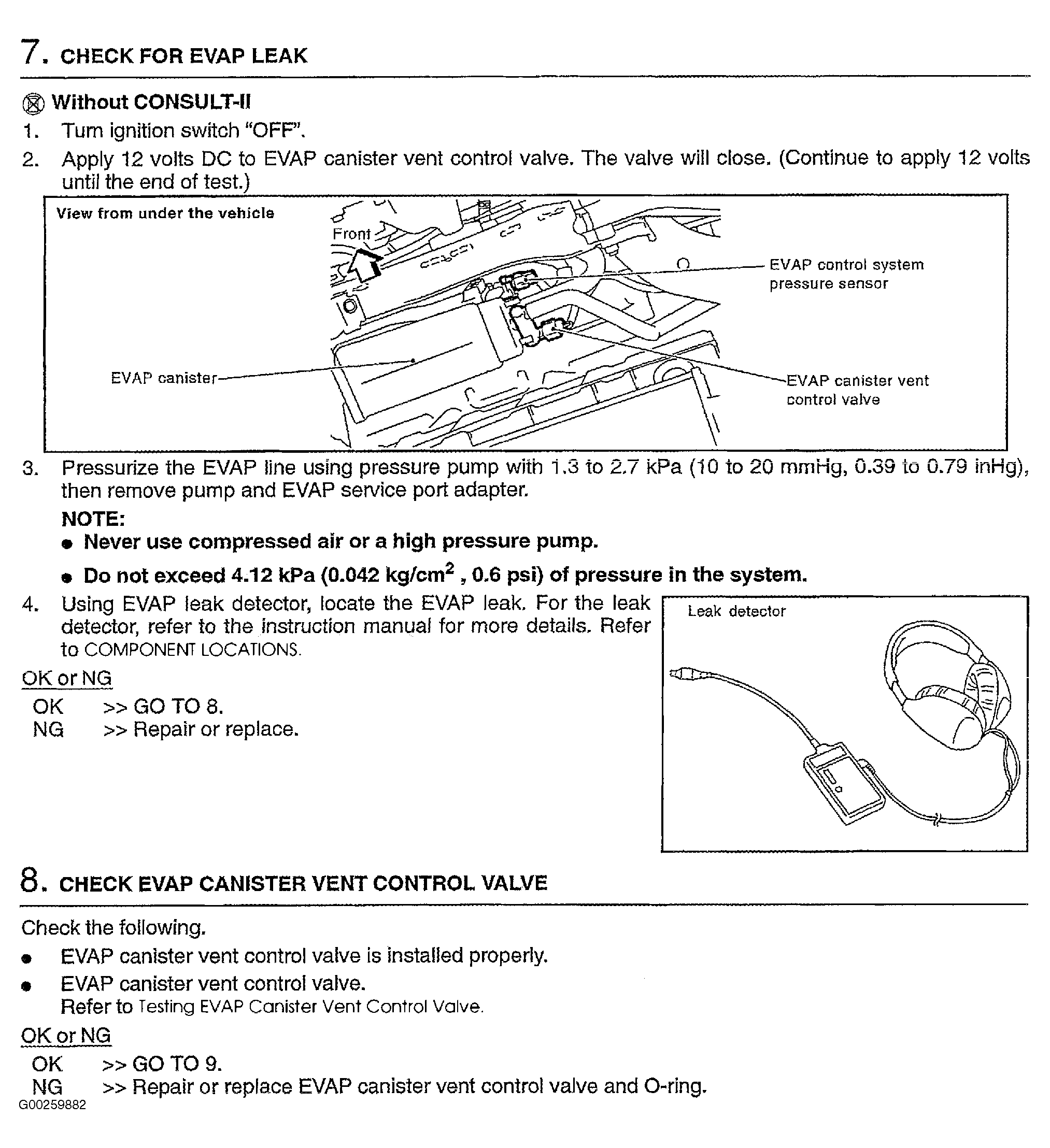

Fig 6: DTC P0442 (6 Of 9)
G00259882Courtesy of NISSAN MOTOR CO., U.S.A.

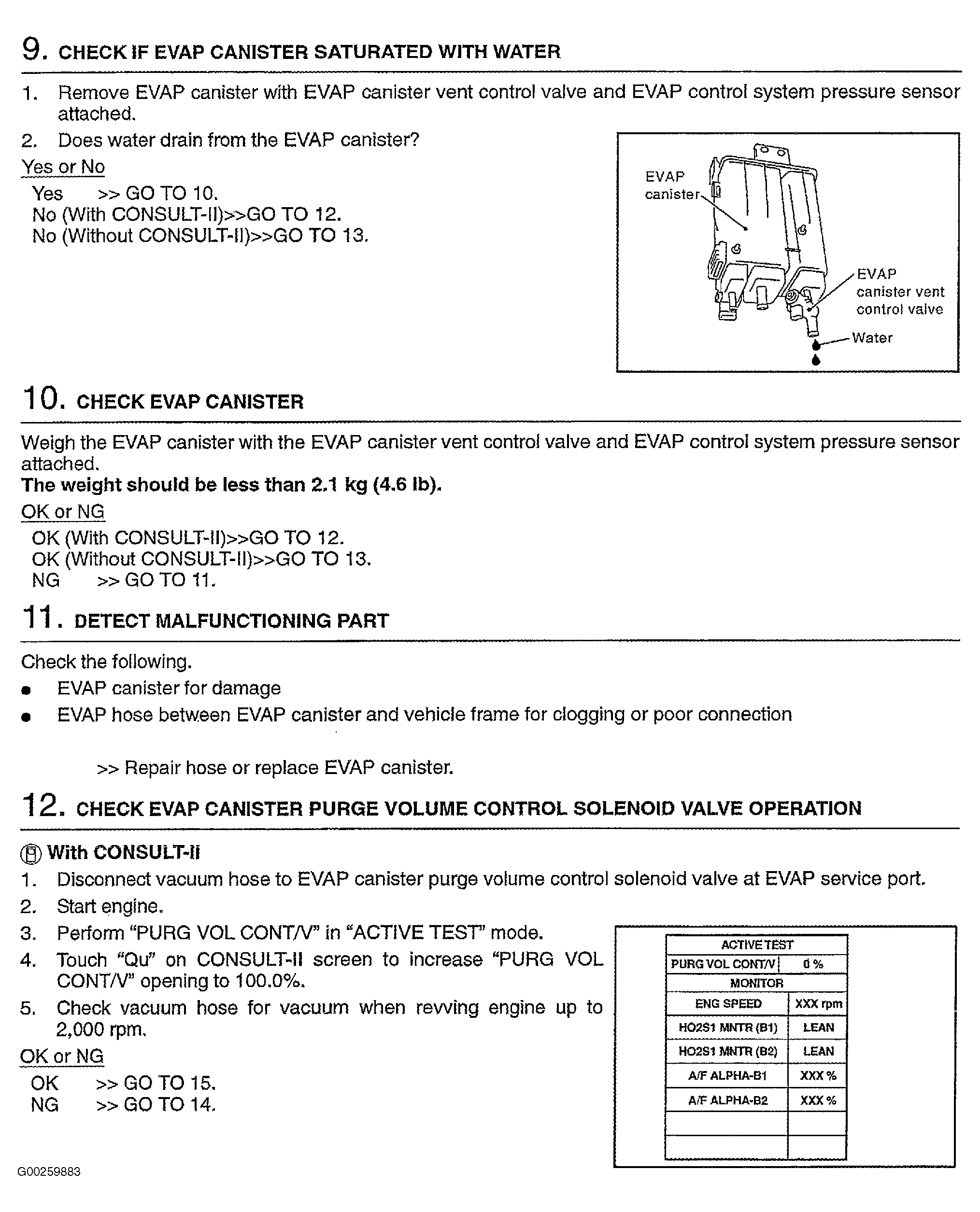

Fig 7: DTC P0442 (7 Of 9)
G00259883Courtesy of NISSAN MOTOR CO., U.S.A.

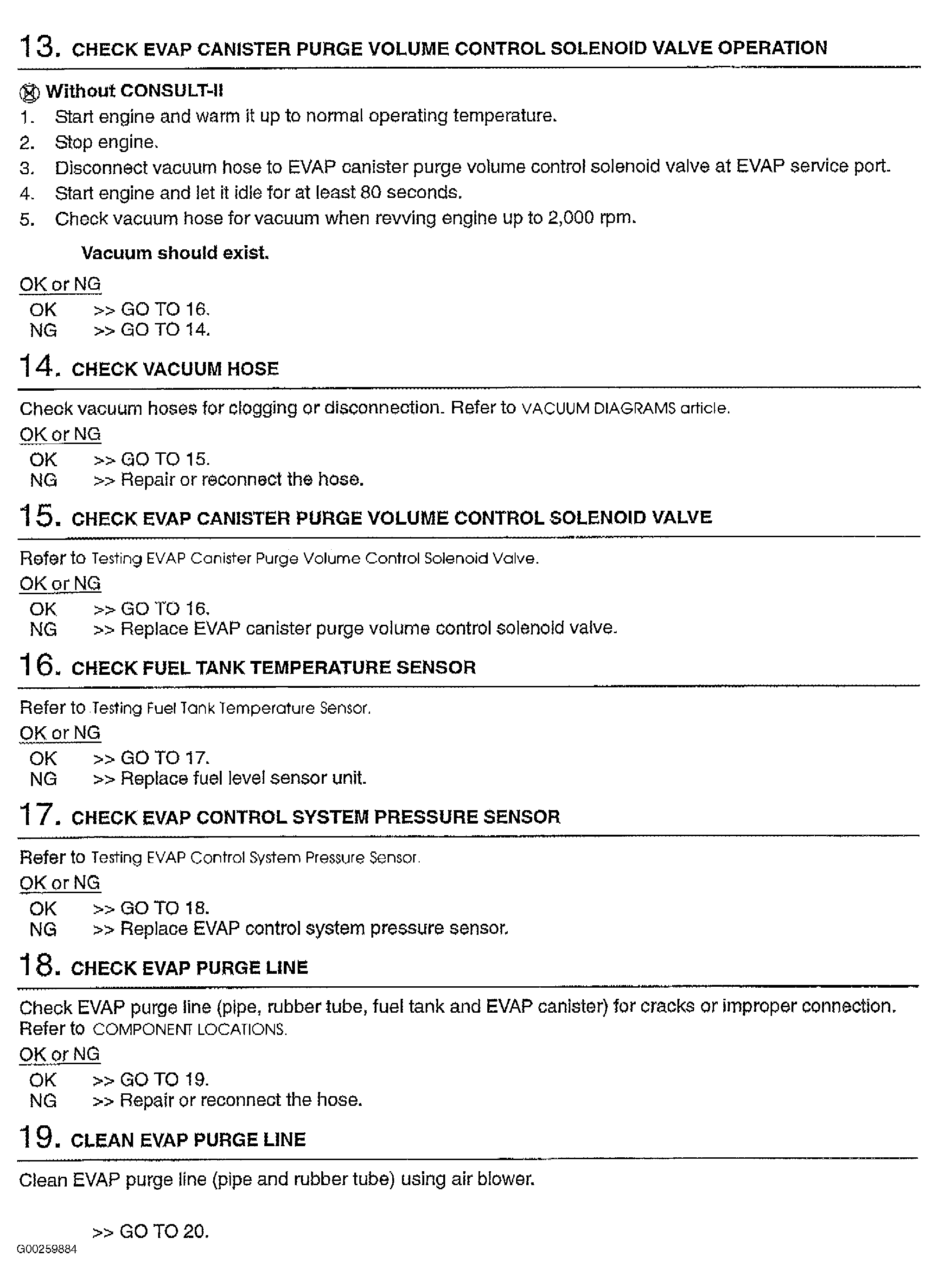

Fig 8: DTC P0442 (8 Of 9)
G00259884Courtesy of NISSAN MOTOR CO., U.S.A.

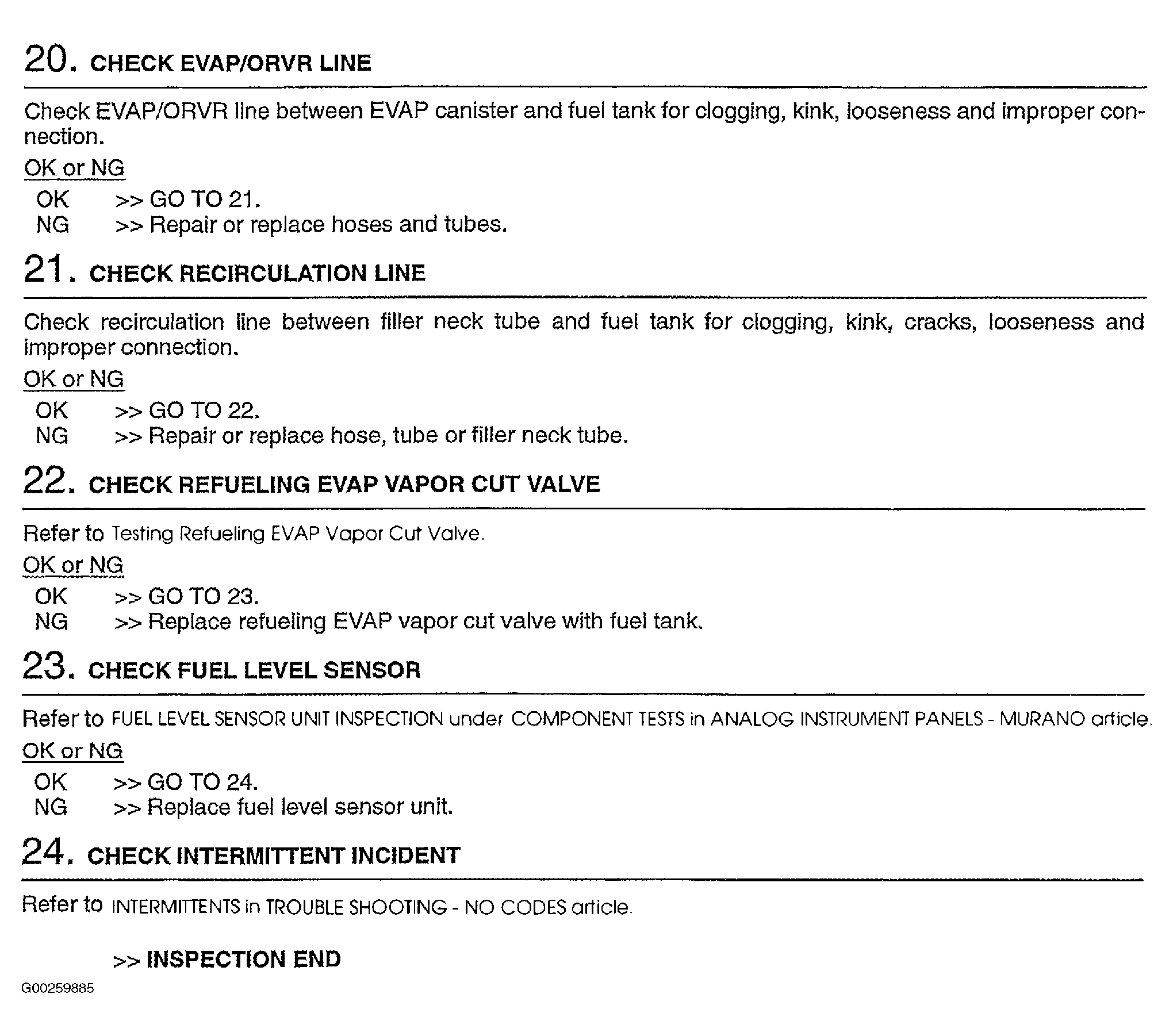

Fig 9: DTC P0442 (9 Of 9)
G00259885Courtesy of NISSAN MOTOR CO., U.S.A.
