DTC P0441: EVAP Control System Incorrect Purge Flow

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If DTC P2122, DTC P2123, DTC P2127, DTC P2128 or DTC P2138 is also present, perform diagnosis for that code first. See DTC P2122: ACCELERATOR PEDAL POSITION SENSOR 1 CIRCUIT LOW INPUT &/OR DTC P2123: ACCELERATOR PEDAL POSITION SENSOR 1 CIRCUIT HIGH INPUT , DTC P2127: ACCELERATOR PEDAL POSITION SENSOR 2 CIRCUIT LOW INPUT OR DTC P2128: ACCELERATOR PEDAL POSITION SENSOR 2 CIRCUIT HIGH INPUT  and/or DTC P2138: ACCELERATOR PEDAL POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM  .
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 5 .

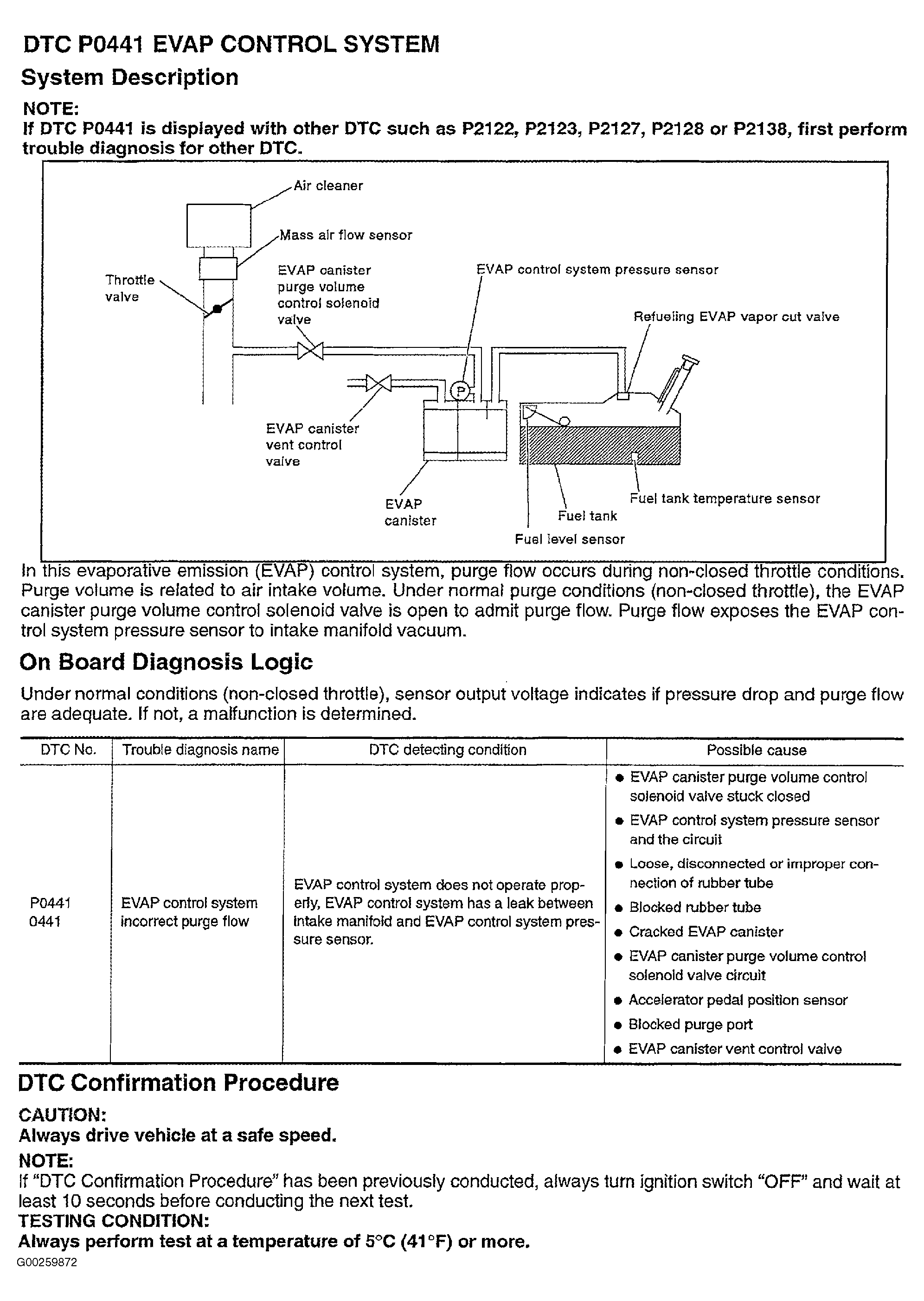

Fig 1: DTC P0441 (1 Of 5)
G00259872Courtesy of NISSAN MOTOR CO., U.S.A.

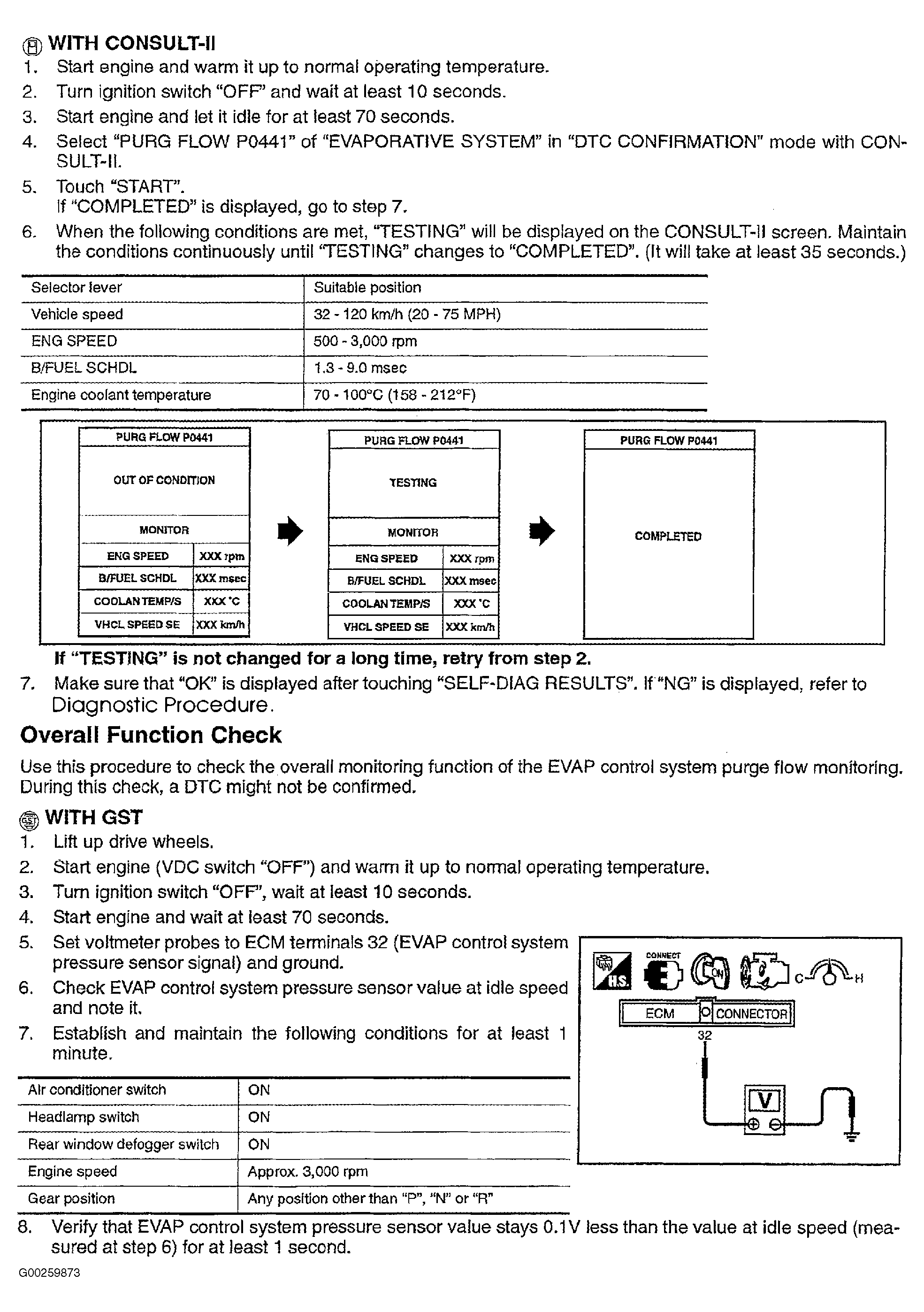

Fig 2: DTC P0441 (2 Of 5)
G00259873Courtesy of NISSAN MOTOR CO., U.S.A.

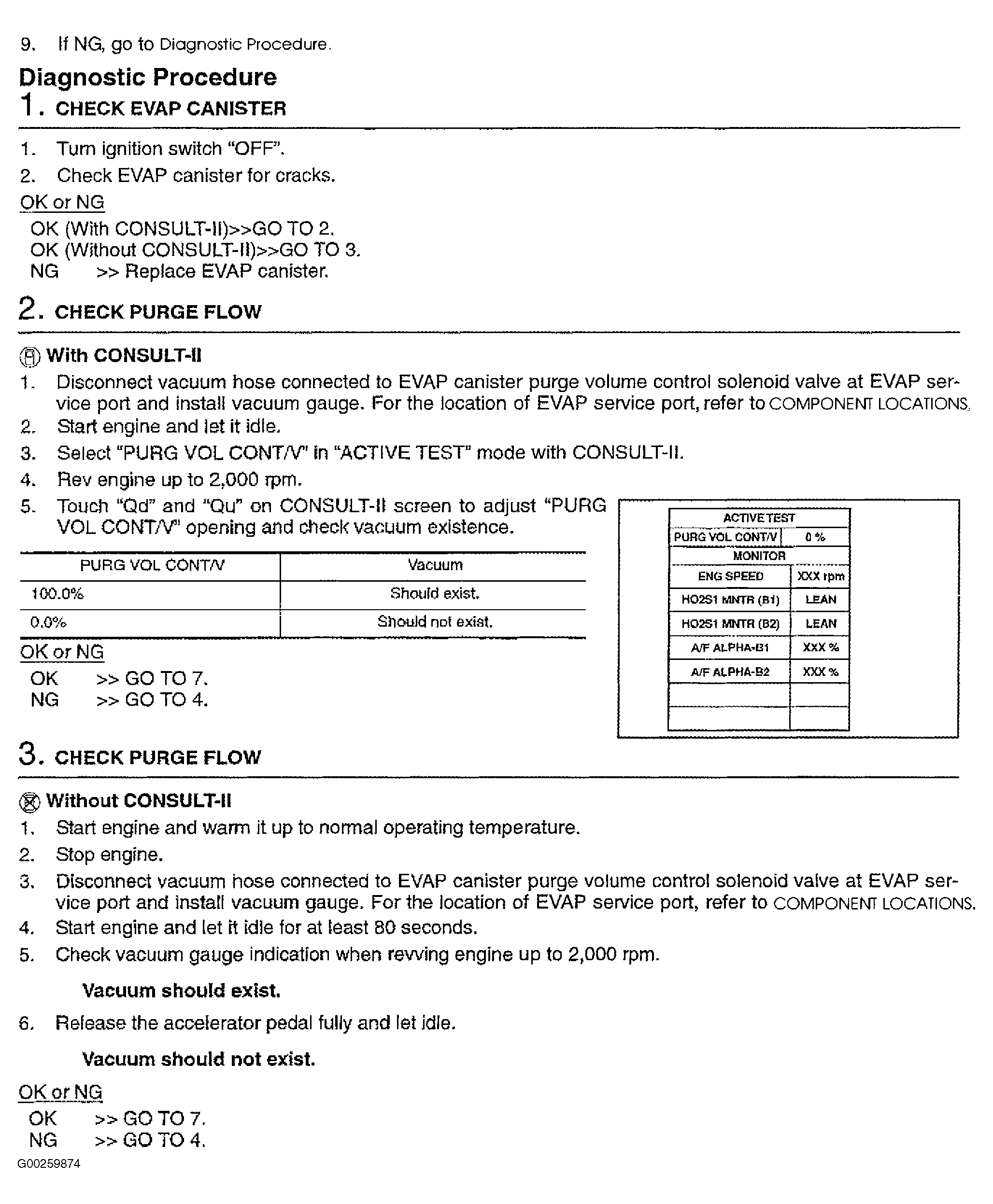

Fig 3: DTC P0441 (3 Of 5)
G00259874Courtesy of NISSAN MOTOR CO., U.S.A.

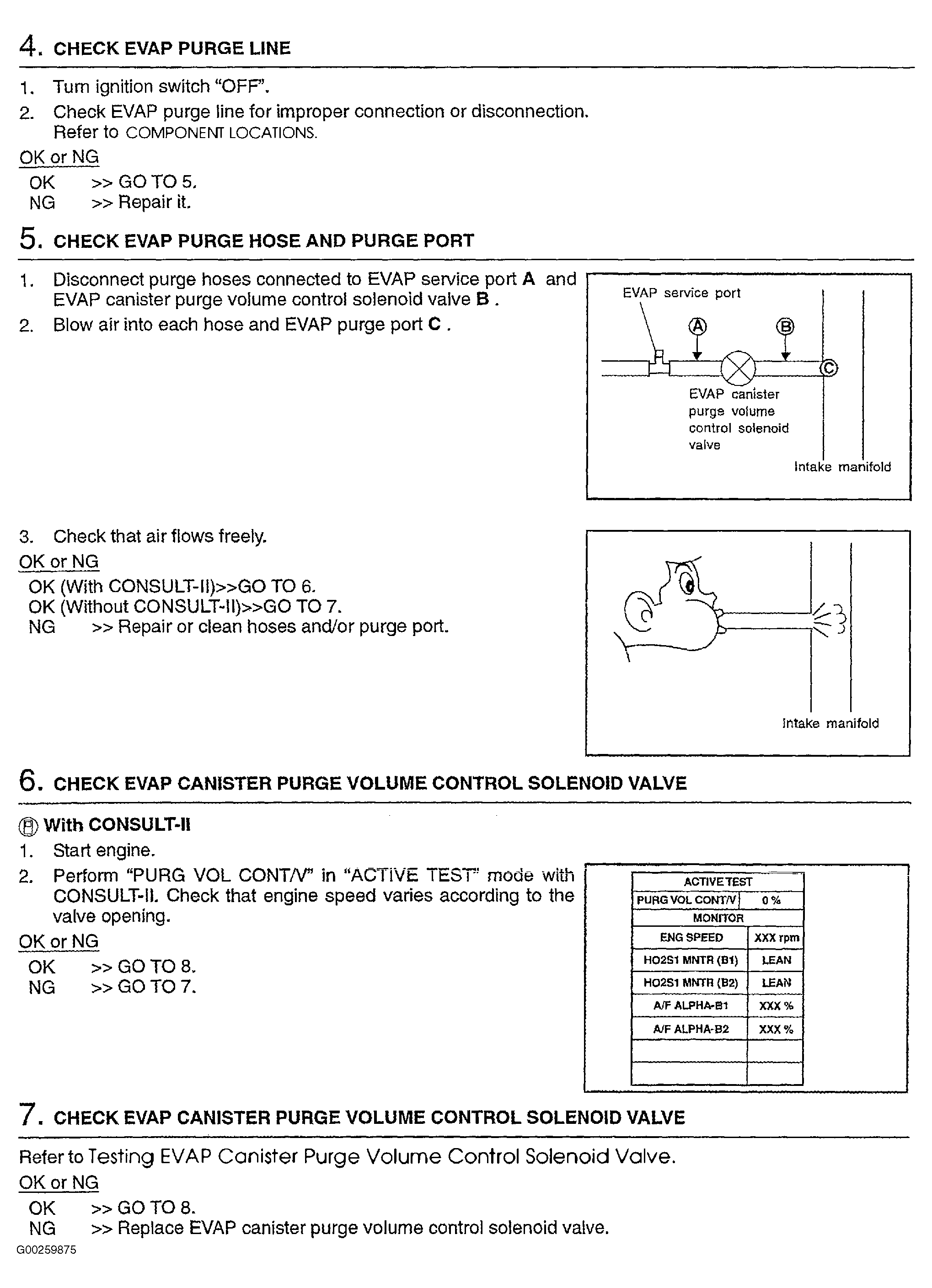

Fig 4: DTC P0441 (4 Of 5)
G00259875Courtesy of NISSAN MOTOR CO., U.S.A.

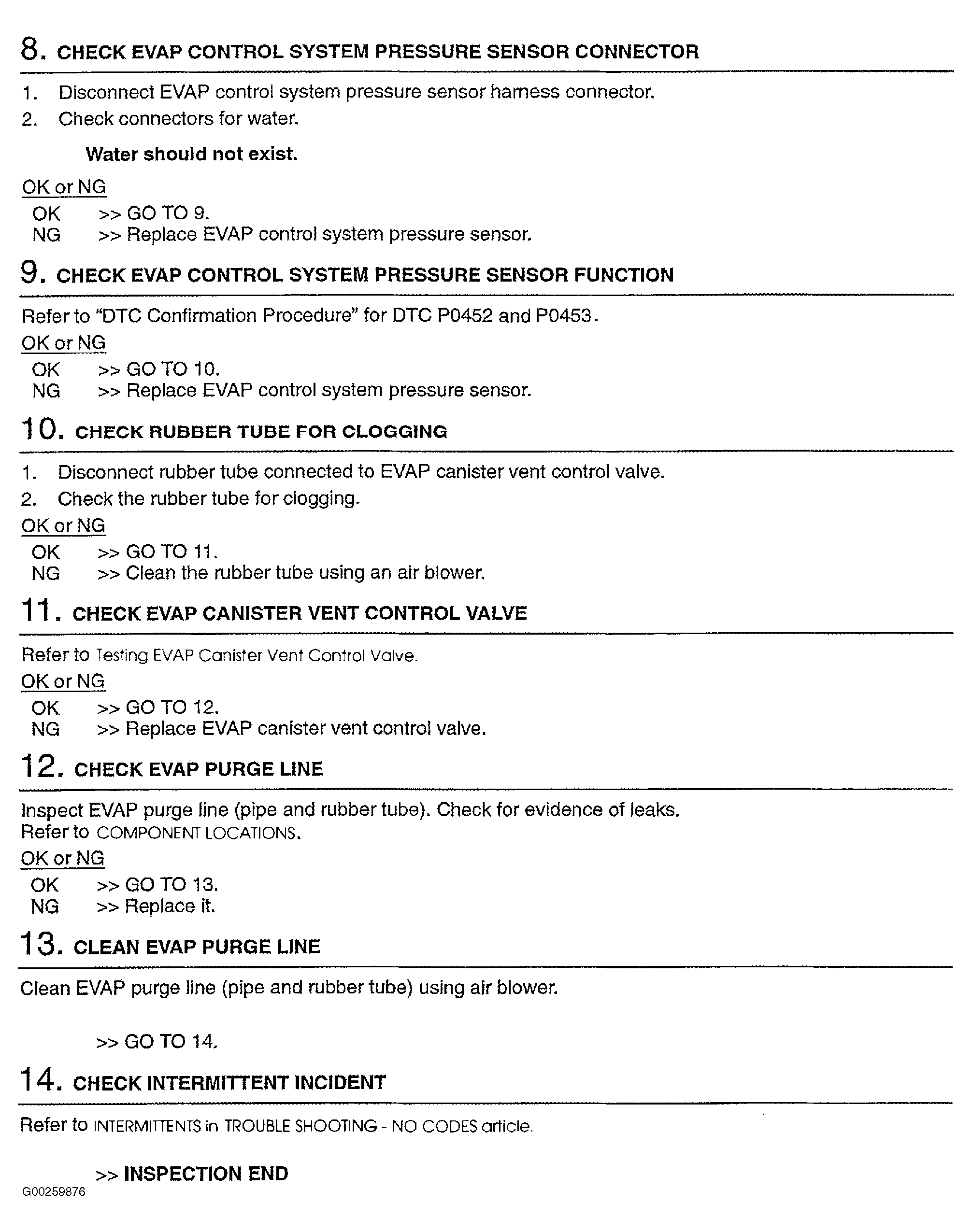

Fig 5: DTC P0441 (5 Of 5)
G00259876Courtesy of NISSAN MOTOR CO., U.S.A.
