Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

  1. CHECK DISPLAY UNIT POWER SUPPLY AND GROUND CIRCUIT

    Check display unit power supply and ground circuit. Refer to "DISPLAY UNIT: DIAGNOSIS PROCEDURE ".

    Is inspection result OK?

    YES: GO TO 2

    NO: Repair malfunctioning parts.

  2. CHECK CONTINUITY OF COMMUNICATION CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect display unit connector and AV control unit connector.
    3. Check continuity between display unit harness connector M93 (A) terminals 11, 22 and AV control unit harness connector M133 (B) terminals 56, 44.
      A B Continuity
      Connector Terminal Connector Terminal
      M93 11 M133 56 Yes
      22 44
    4. Check continuity between display unit harness connector M93 (A) terminals 11, 22 and ground.

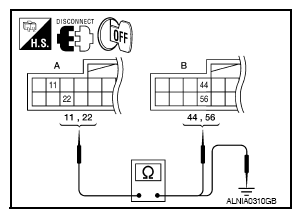

    Fig 1: Checking Continuity Between Display Unit Connector M93 (A) Terminals And AV Control Unit Connector M133 (B) Terminals
    G08169434Courtesy of NISSAN NORTH AMERICA, INC.
    A - Continuity
    Connector Terminal
    M93 11 Ground No
    22

    Are continuity results as specified?

    YES: GO TO 3

    NO: Repair harness or connector.

  3. CHECK COMMUNICATION SIGNAL
    1. Connect display unit connector and AV control unit connector.
    2. Turn ignition switch ON.
    3. Check signal between display unit harness connector M93 terminal 11 and ground with an oscilloscope or CONSULT.
      (+) (-) Reference signal
      Connector Terminal
      M93 11 Ground
      G08169435

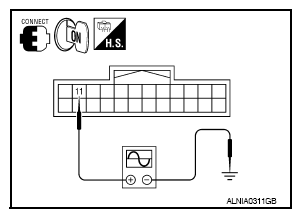

    Fig 2: Checking Signal Between Display Unit Harness Connector M93 Terminal 11 And Ground Using Oscilloscope
    G08169436Courtesy of NISSAN NORTH AMERICA, INC.

    Are voltage readings as specified?

    YES: GO TO 4

    NO: Replace AV control unit. Refer to "REMOVAL AND INSTALLATION ".

  4. CHECK COMMUNICATION SIGNAL

    Check signal between display unit harness connector M93 terminal 22 and ground with an oscilloscope or CONSULT.

    (+) (-) Reference signal
    Connector Terminal
    M93 22 Ground
    G08169437

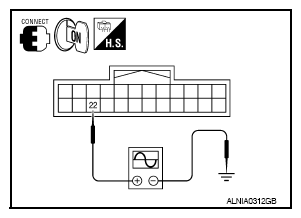

    Fig 3: Checking Signal Between Display Unit Harness Connector M93 Terminal 22 And Ground Using Oscilloscope
    G08169438Courtesy of NISSAN NORTH AMERICA, INC.

    Are voltage readings as specified?

    YES: Inspection End.

    NO: Replace display unit. Refer to "REMOVAL AND INSTALLATION ".
