GST Inspection Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.

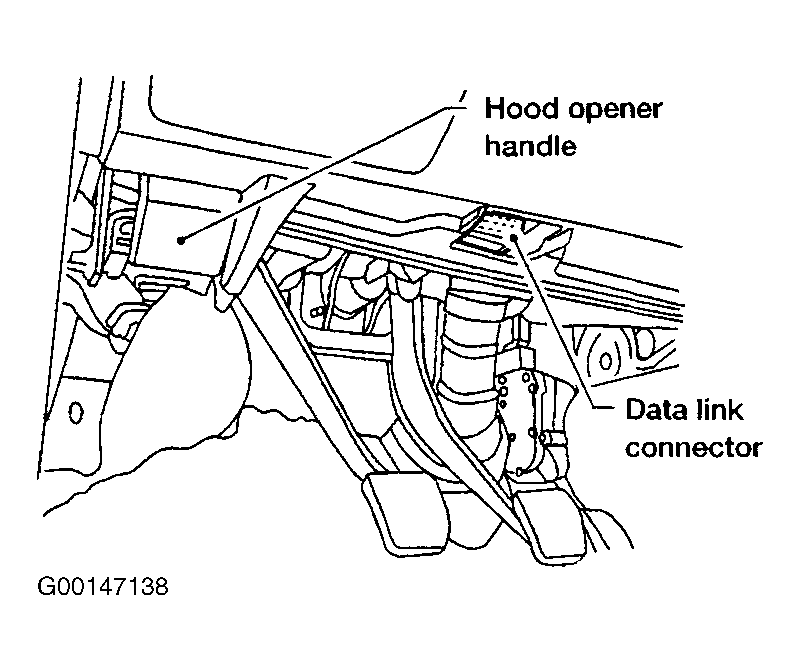

Connect GST to data link connector, which is located under left dash panel near the fuse box cover. See Figure.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
Perform each diagnostic mode according to each service procedure. See Fig 1. For further information, see the GST operation manual of the tool maker.

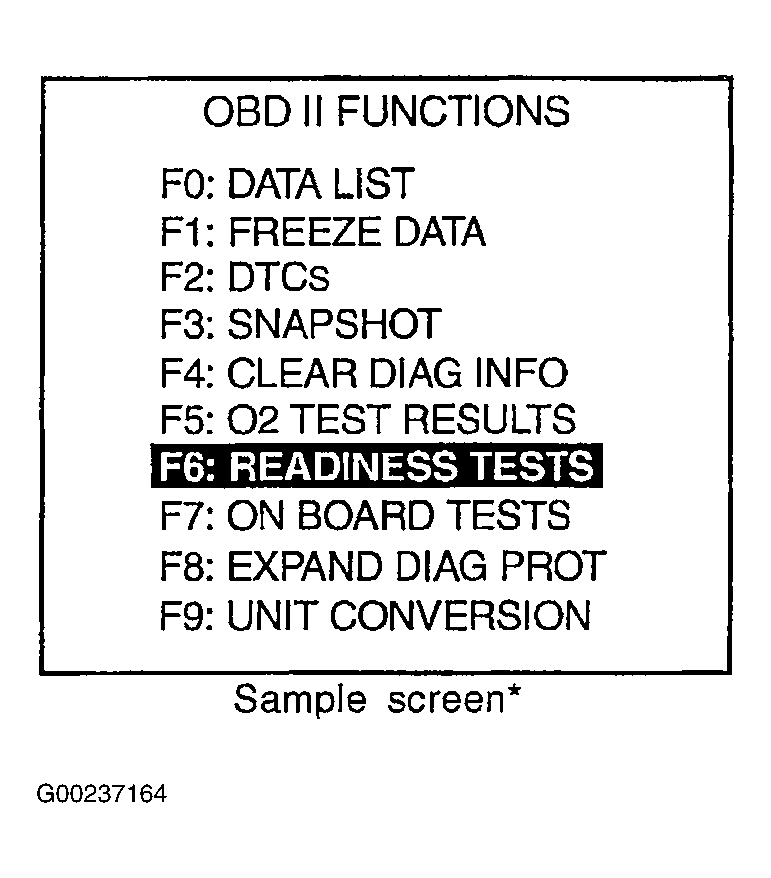

Fig 1: Identifying Diagnostic Modes For GST

Courtesy of NISSAN MOTOR CO., U.S.A.
