COMPONENT LOCATIONS

Component

Location

Automatic Light Control Sensor

⁽¹⁾

Control Link

⁽²⁾

Door Courtesy Lamp

⁽³⁾

Door Courtesy Lamp Switch

⁽³⁾

Engine Room Relay Block

⁽¹⁾

Glove Box Lamp

⁽¹⁾

Hazard Warning Signal Switch

⁽¹⁾

Headlight Beam Level Control Actuator

⁽¹⁾⁽²⁾

Headlight Beam Level Control ECU

⁽²⁾

Headlight Control Computer

⁽¹⁾

Headlight Components

⁽⁴⁾

Headlight Dimmer Switch

⁽¹⁾

Headlight Light Control Computer

⁽⁴⁾

Headlight Leveling Computer

⁽¹⁾

HEAD Relay

⁽⁵⁾

Instrument Panel Junction Block

⁽¹⁾

Key Cylinder Lamp (Transponder Key Amplifier)

⁽¹⁾

Rear Height Control Sensor

⁽²⁾

Skid Control ECU

⁽²⁾

Step Lamp

⁽¹⁾

Turn Signal Flasher

⁽¹⁾

⁽¹⁾	See Fig 1.

⁽²⁾	See Fig 2.

⁽³⁾	See Fig 3.

⁽⁴⁾	See Fig 4.

⁽⁵⁾	Located in engine room junction block in the left engine compartment.

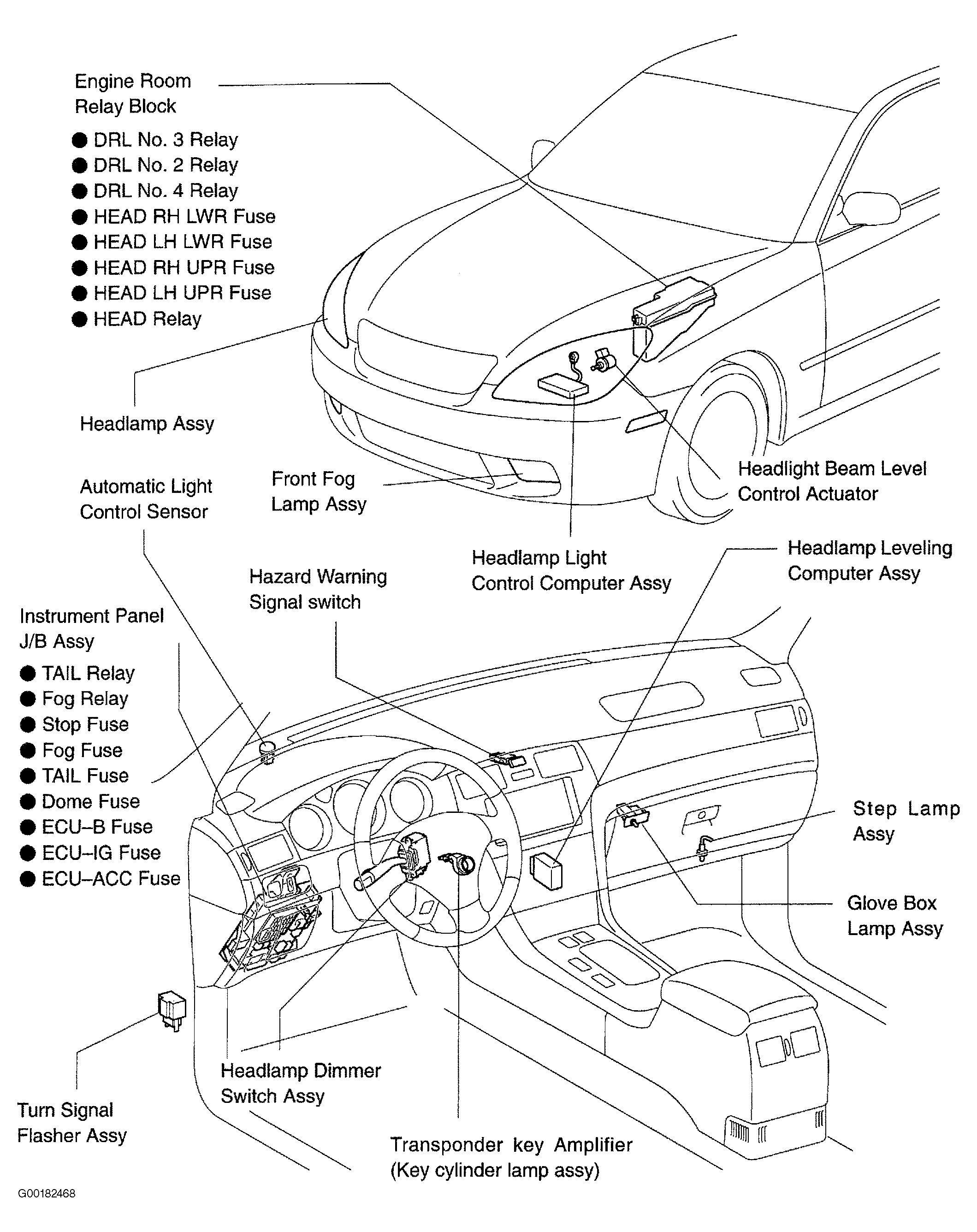

Fig 1: Identifying Lighting System Instrument Panel & Engine Compartment Component Locations

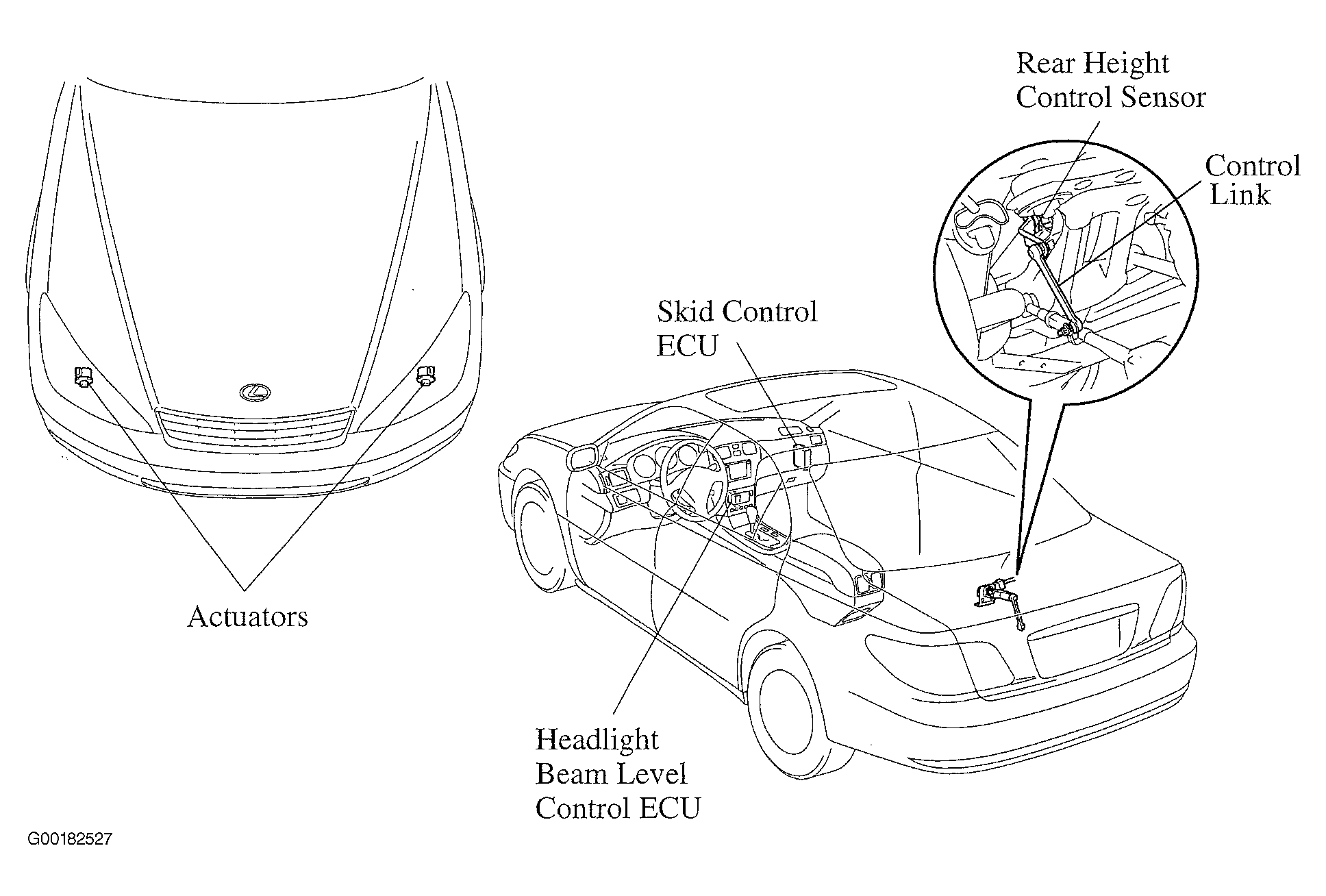

Fig 2: Identifying Automatic Headlight Beam Level Component Locations

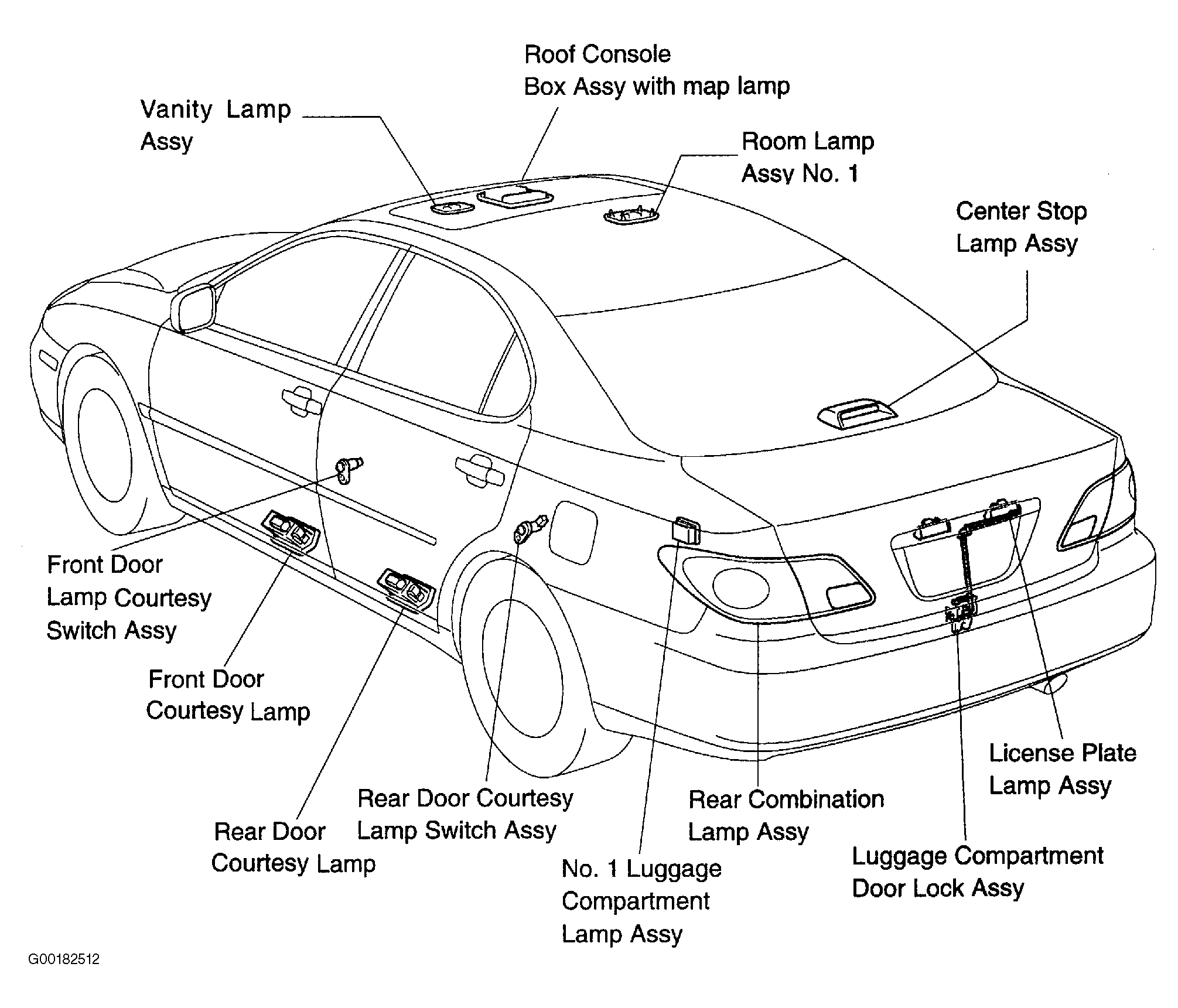

Fig 3: Identifying Lighting System Component Locations

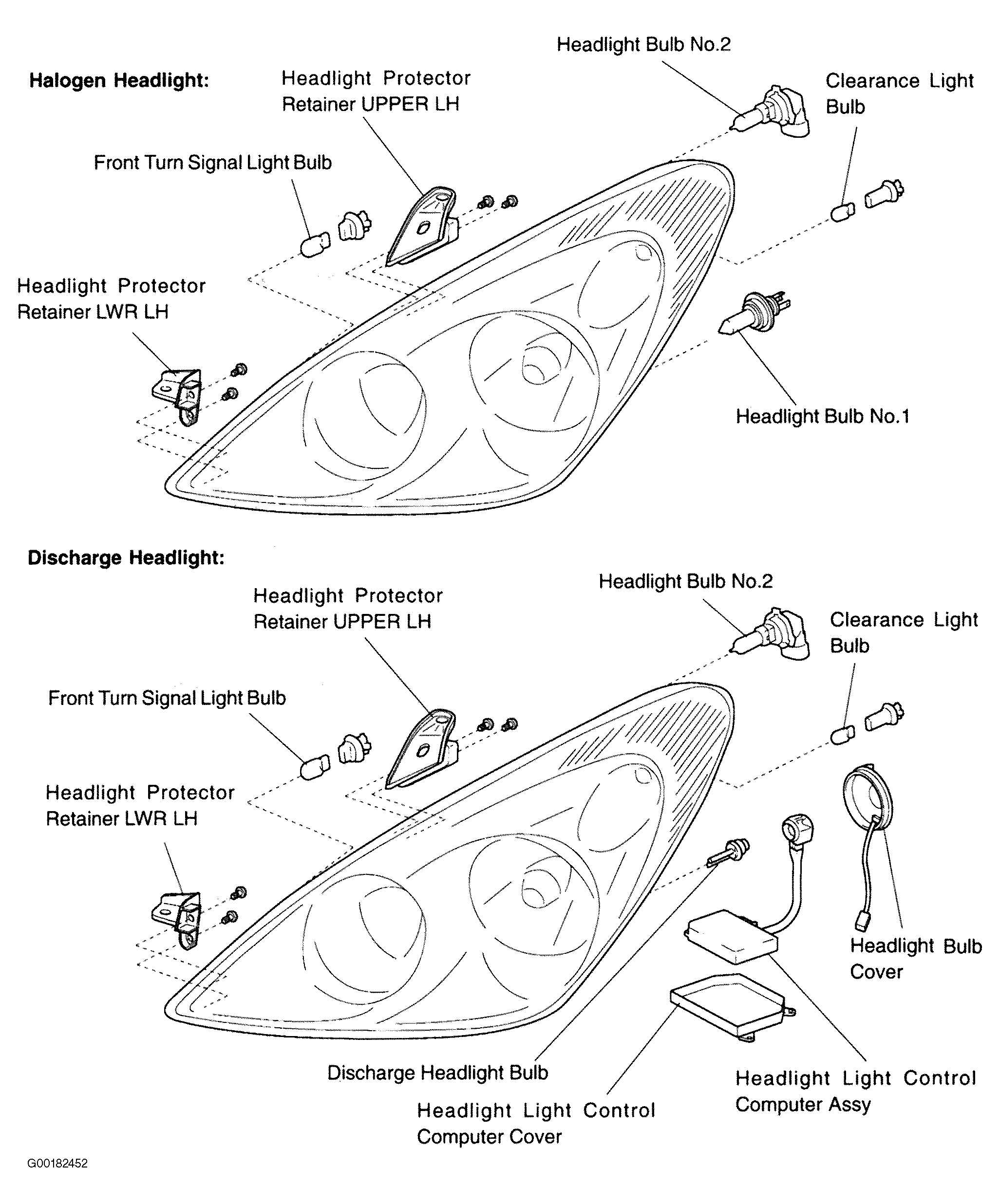

Fig 4: Identifying Headlight Components
