Blower Unit: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BLOWER ASSEMBLY
    1. Install the blower assembly with the claw in the order shown in the illustration.

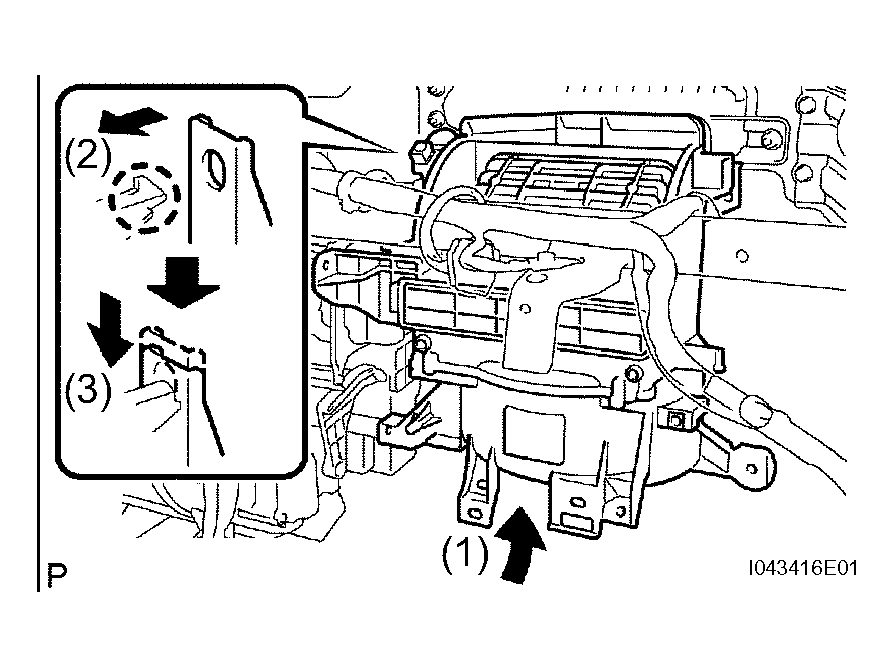

      Fig 1: Installing Blower Assembly With Claw
      G04223585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the blower assembly with the bolt and 3 screws.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf) for bolt

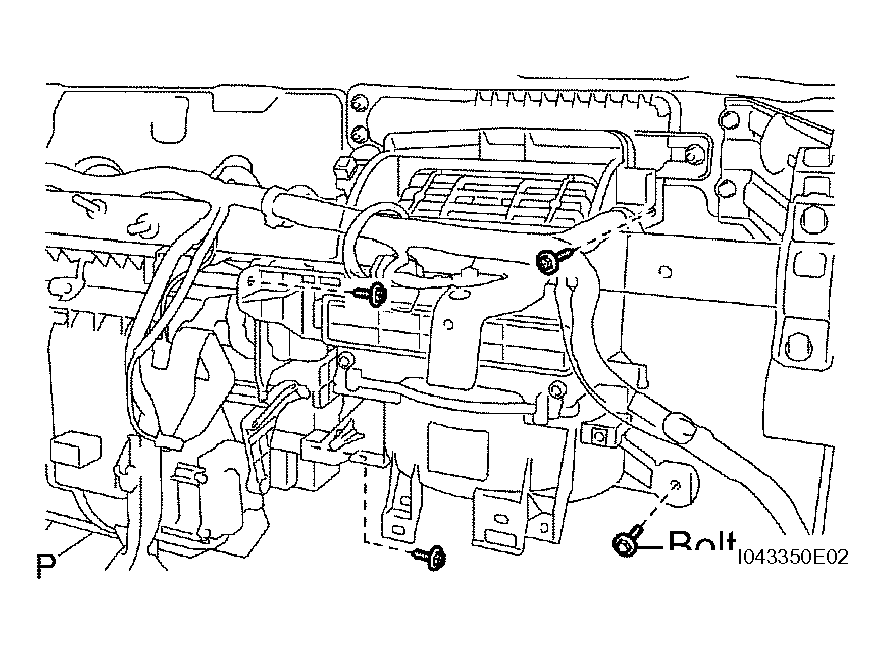

      Fig 2: Installing Blower Assembly With Bolt And Screws
      G04223586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 3 connectors.
  2. INSTALL AIR DUCT (See INSTALLATION  )
  3. INSTALL ECM (See  INSTALLATION  )
  4. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
    1. Install the instrument panel sub-assembly lower (see INSTALLATION ).
  5. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER
    1. Install the instrument panel sub-assembly upper (see INSTALLATION ).

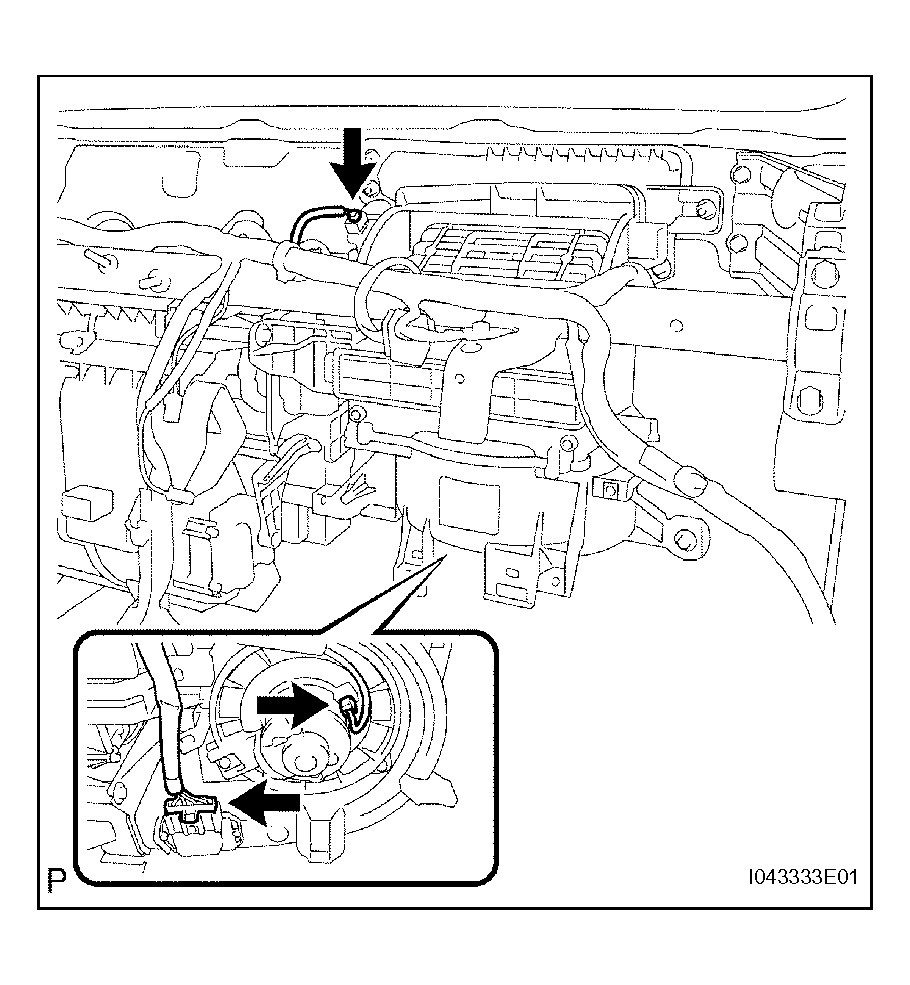

    Fig 3: Installing Instrument Panel Sub-Assembly Upper
    G04223587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
  8. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
