Center Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see PRECAUTION ).

INSTALL CENTER AIRBAG SENSOR ASSEMBLY
1. Install the airbag sensor with the 3 bolts.
  Torque: 17.5 N*m (179 kgf*cm, 13 ft.*lbf)
  NOTE:
  - If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
  - When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

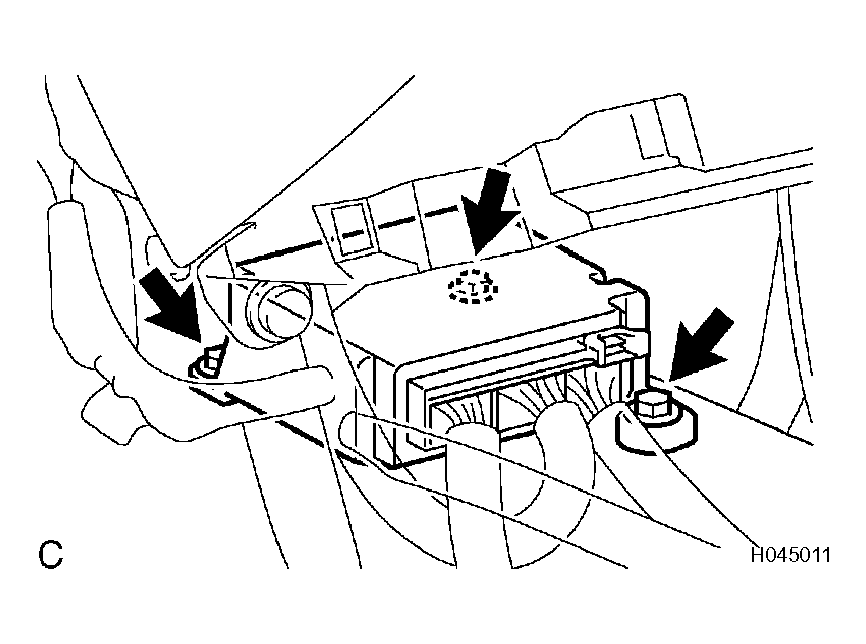

  Fig 1: Installing Airbag Sensor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the airbag sensor connectors.
INSTALL REAR CONSOLE BOX ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE UPPER REAR PANEL SUBASSEMBLY (See INSTALLATION )
REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (Manual Transaxle) (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
