Vehicle Speed Signal Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

VEHICLE SPEED OPERATION CHECK
Does speed meter is operated normally?

YES or NO
- YES: GO TO 2.
- NO: Check combination meter trouble diagnosis. Refer to SELF-DIAGNOSIS MODE OF COMBINATION METER .
HARNESS CHECK
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and combination meter connector.
3. Check continuity between NAVI control unit harness connector M58 terminal 28 (W/G) and combination meter harness connector M19 terminal 14(W/G).
  Continuity should exist.
4. Check continuity NAVI control unit harness connector M58 terminal 28 (W/G) and ground.
  Continuity should not exist.

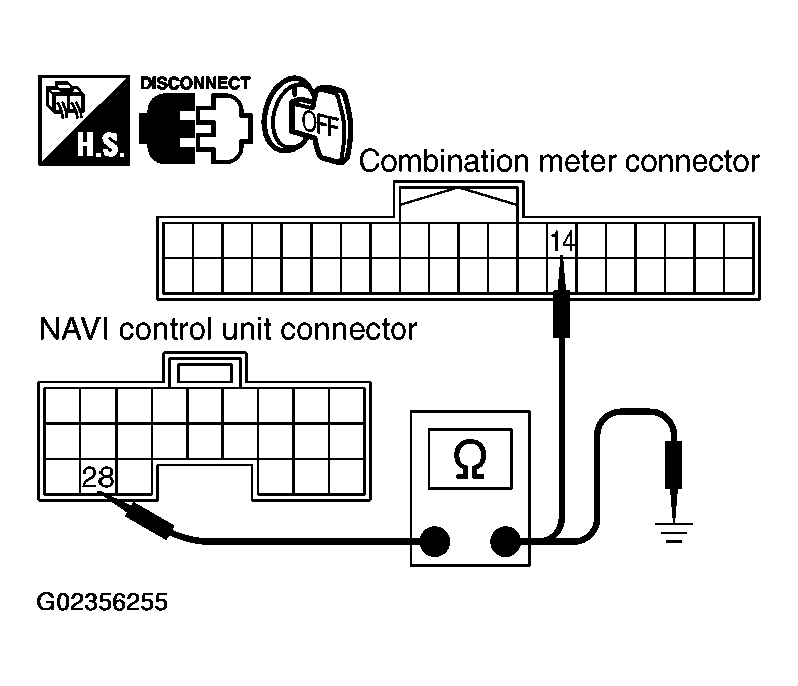

  Fig 1: Navi Control Unit Connector M58 Terminal 28 & Combination Meter Connector M19 Terminal 14 & Ground Continuity Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 3.
- NG:
  - Check harness for open or short between NAVI control unit and combination meter.
  - Check connector housings for disconnected or loose terminals.
VEHICLE SPEED SIGNAL CHECK
1. Connect NAVI control unit connector and combination meter connector.
2. Drive vehicle at a constant speed.
3. Check the signal between NAVI control unit harness connector M58 terminal 28 (W/G) and ground with CONSULT-ll or oscilloscope.
  (W/G) - Ground : Refer to "TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT ".

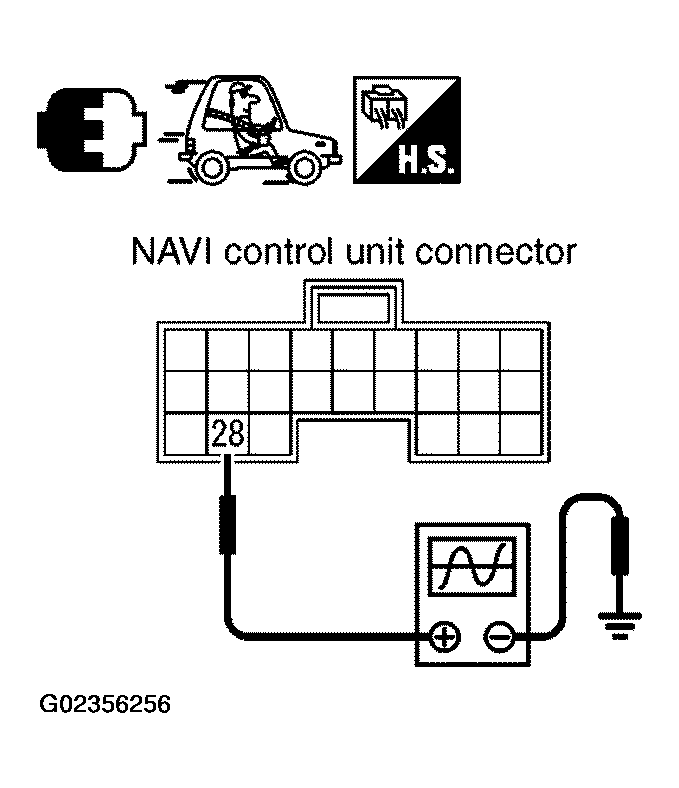

  Fig 2: Navi Control Unit Harness Connector M58 Terminal 28 (W/G) & Ground Signal Test
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace NAVI control unit.
- NG: Check combination meter system. Refer to SELF-DIAGNOSIS MODE OF COMBINATION METER .
