Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM - WITH NAVIGATION SYSTEM ".

CHECK CONTINUITY RGB SYNCHRONIZING SIGNAL CIRCUIT

Turn ignition switch OFF.
Disconnect display unit connector M92 and AV control unit connector M37.

Check continuity between display unit harness connector M92 (A) terminal 19 and AV control unit harness connector M37 (B) terminal 25.

A		B		Continuity
Connector	Terminal	Connector	Terminal	Continuity
M92	19	M37	25	Yes

Check continuity between display unit harness connector M92 (A) terminal 19 and ground.

A		-	Continuity
Connector	Terminal	-	Continuity
M92	19	Ground	No

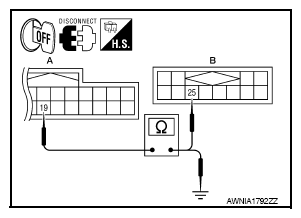

Fig 1: Checking Continuity Between Display Unit Connector M92 (A) Terminal 19 And AV Control Unit Connector M37 (B) Terminal 25

Courtesy of NISSAN NORTH AMERICA, INC.

Are continuity results as specified?

YES: GO TO 2

NO: Repair harness or connector.

CHECK RGB SYNCHRONIZING SIGNAL

Connect display unit connector M92 and AV control unit connector M37.
Turn ignition switch ON.

Check signal between display unit harness connector M92 terminal 19 and ground.

(+)		(-)	Condition	Reference signal
Connector	Terminal	(-)	Condition	Reference signal
M92	19	Ground	Receive audio signal

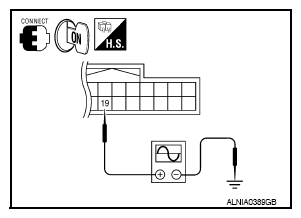

Fig 2: Checking Signal Between Display Unit Connector M92 Terminal 19 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

Are voltage readings as specified?

YES: Replace display unit. Refer to "REMOVAL AND INSTALLATION ".

NO: Replace AV control unit. Refer to "REMOVAL AND INSTALLATION ".
