Vehicle Signals

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

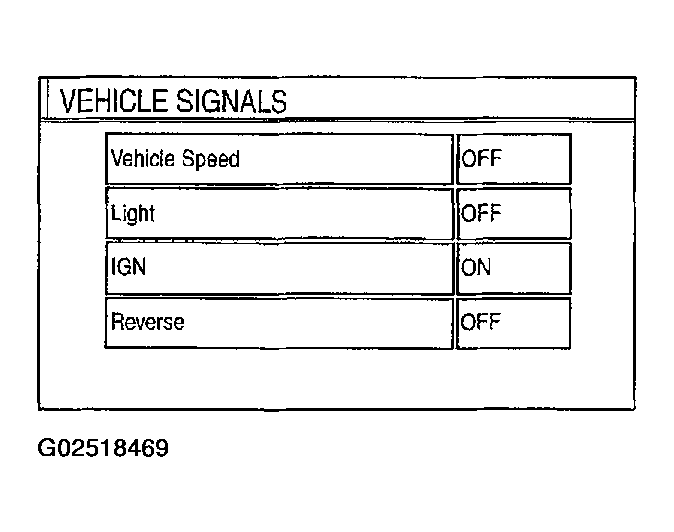

Fig 1: Display Screen - Vehicle Signals
Courtesy of NISSAN MOTOR CO., U.S.A.

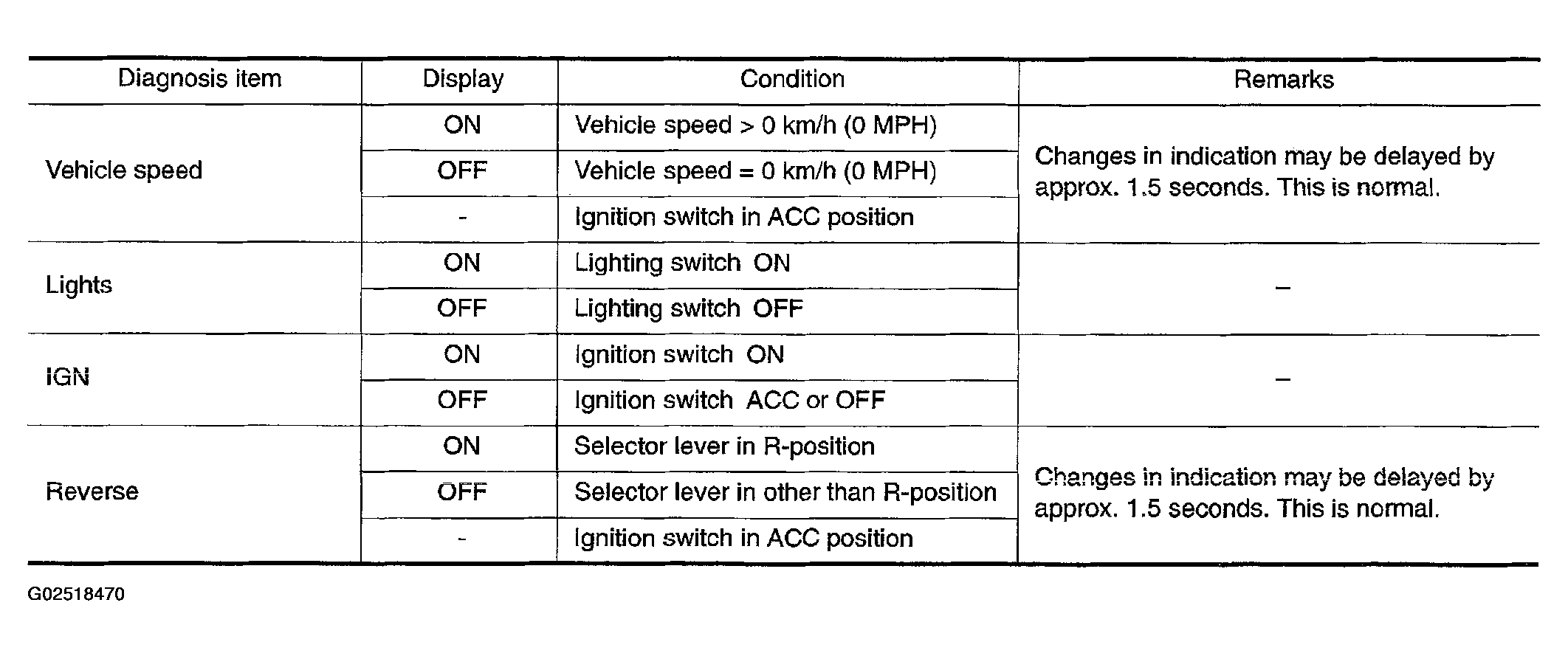

Fig 2: Diagnosis Results Table
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to "Vehicle Speed Signal Check ".
If lights is NG, refer to Illumination Signal Check .
If IGN is NG, refer to Ignition Signal Check .
If reverse is NG, refer to Reverse Signal Check (With A/T) . Reverse Signal Check (With M/T) .
