RGB Screen Is Rolling

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS
1. Disconnect AV control unit and display connector.
2. Check continuity between AV control unit and ground.

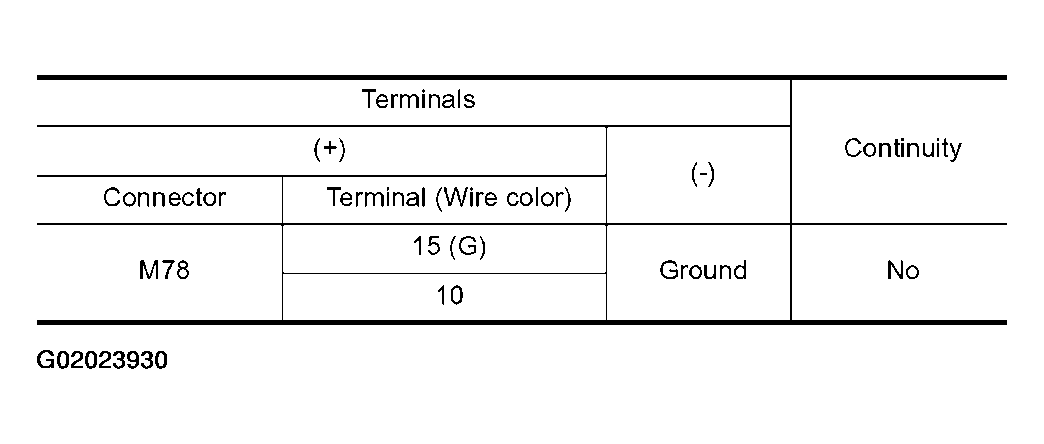

  Fig 1: Identifying Terminal Continuity Table (RGB Screen Is Rolling)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between AV control unit and display.

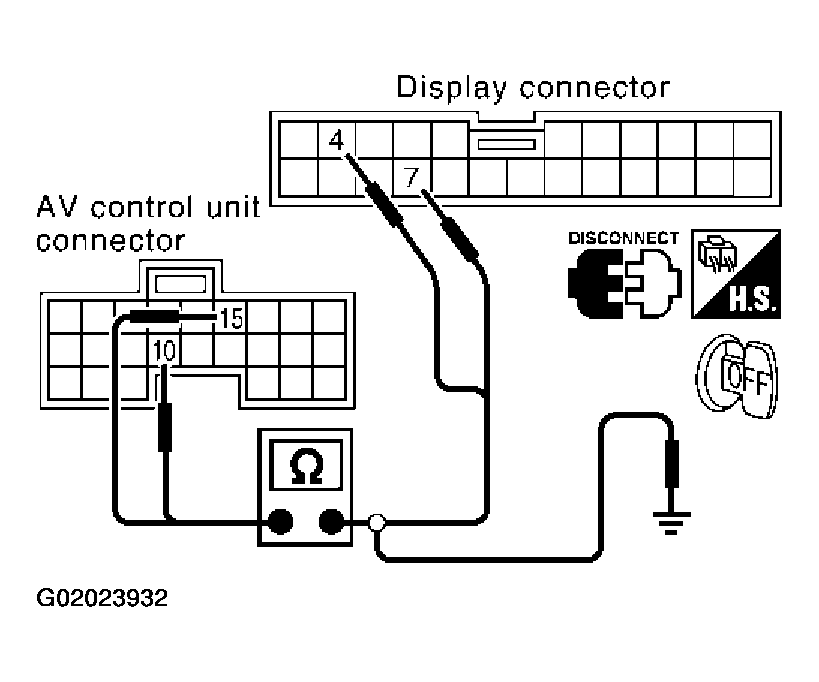

  Fig 2: Identifying Checking Harness (RGB Screen Is Rolling)
  Courtesy of NISSAN MOTOR CO., U.S.A.

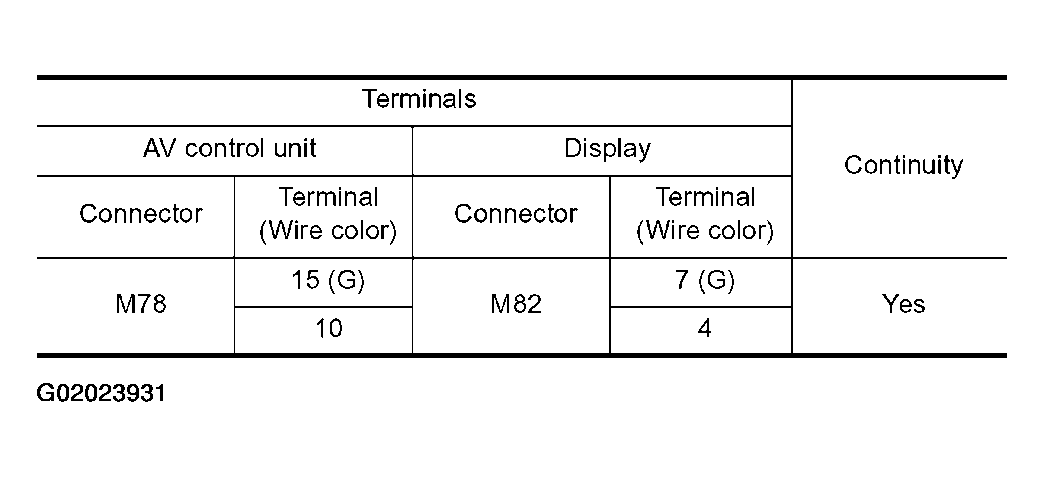

  Fig 3: Checking Harness (RGB Screen Is Rolling)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK >> GO TO 2.

NG >>
- Check connector housings for disconnected or loose terminals.
- Repair harness or connector.
CHECK RGB SYNCHRONIZING SIGNAL
1. Connect AV control unit and display connector.
2. Turn ignition switch ON.
3. Check voltage between AV control unit harness connector M78 terminal 15 (G) and 10.
  1. 15 (G) - 10 : Refer to " TERMINALS AND REFERENCE VALUE FOR AV CONTROL UNIT ".

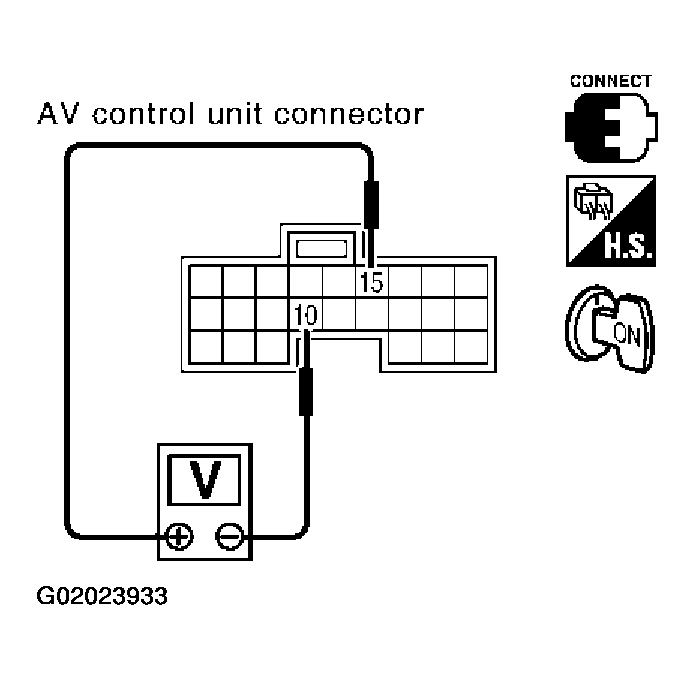

Fig 4: Checking RGB Synchronizing Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Replace display.

NG >> Replace AV control unit.
