Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER LOWER CLUSTER FINISH PANEL (See Figure )
REMOVE INTEGRATION CONTROL PANEL
Remove the 4 bolts and pull out the panel, then disconnect the connector.

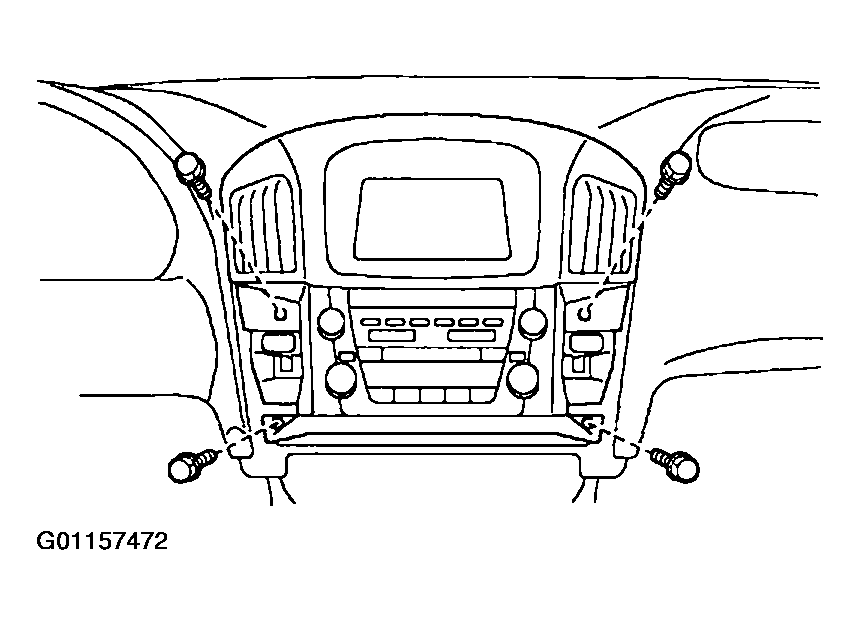

Fig 1: Removing Integration Control Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI DISPLAY
Remove the 3 screws and multi display.
REMOVE RADIO
Remove the 4 screws and radio.
REMOVE PANEL ECU
Remove the 6 screws and ECU.
HEATER CONTROL
Remove the 15 screws and heater control.
REMOVE KNOBS
REMOVE PLATE
