Section 841 (Automatic Transmission): Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

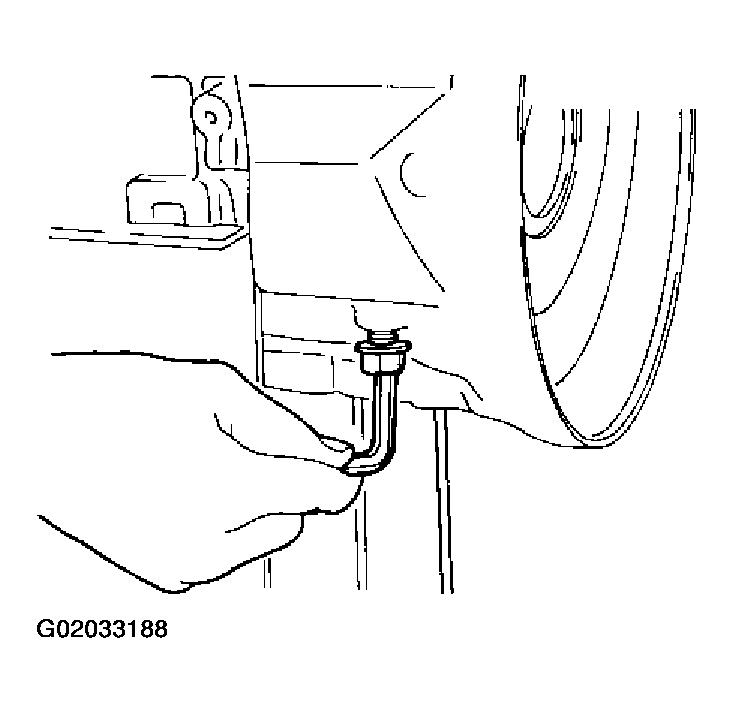

Drain ATF through drain plug.
Remove turbine revolution sensor.

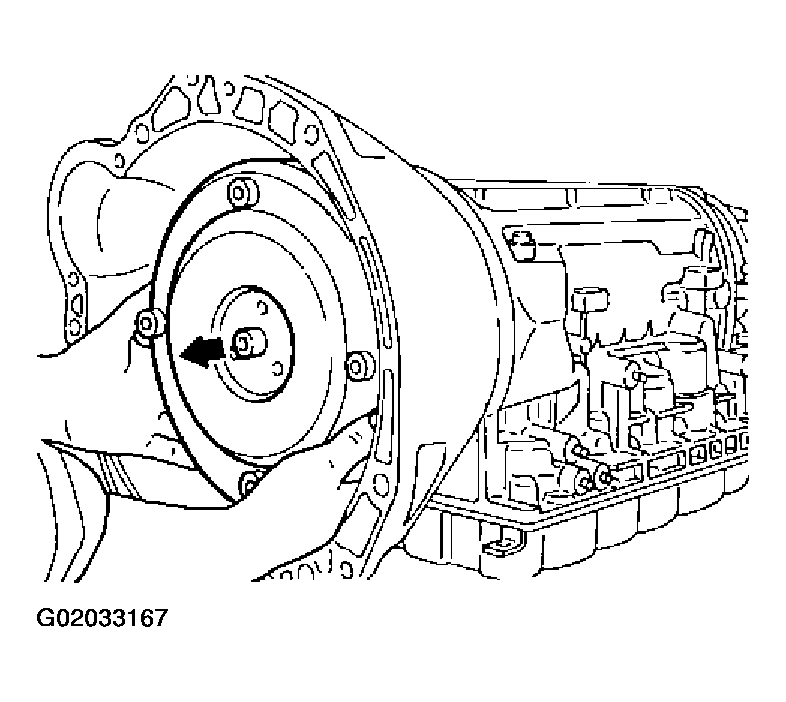

Remove torque converter by holding it firmly and turning while pulling straight out.

Fig 1: Removing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

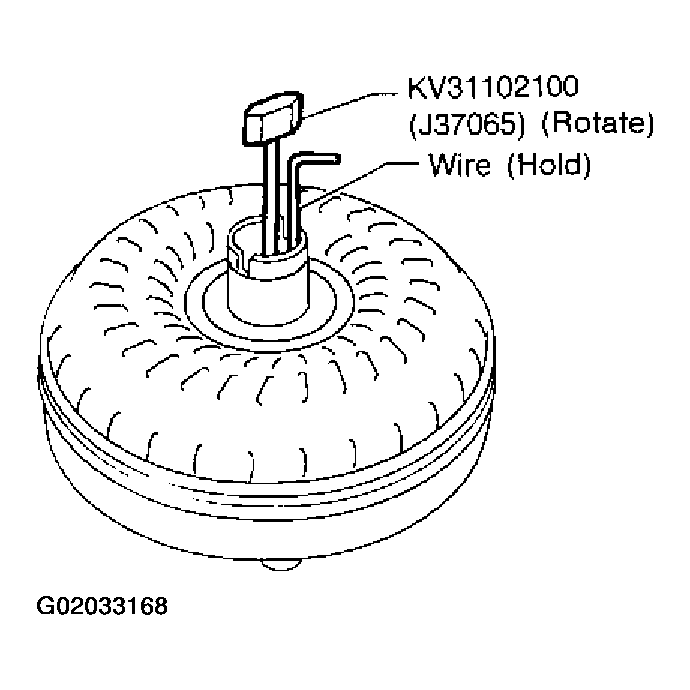

Check torque converter one-way clutch.
1. Insert Tool into spline of one-way clutch inner race.
2. Hook bearing support unitized with one-way clutch outer race with suitable wire.
3. Check that one-way clutch inner race rotates only clockwise with Tool while holding bearing support with wire.

  Fig 2: Checking That One-Way Clutch Inner Race Rotates Only Clockwise
  Courtesy of NISSAN MOTOR CO., U.S.A.

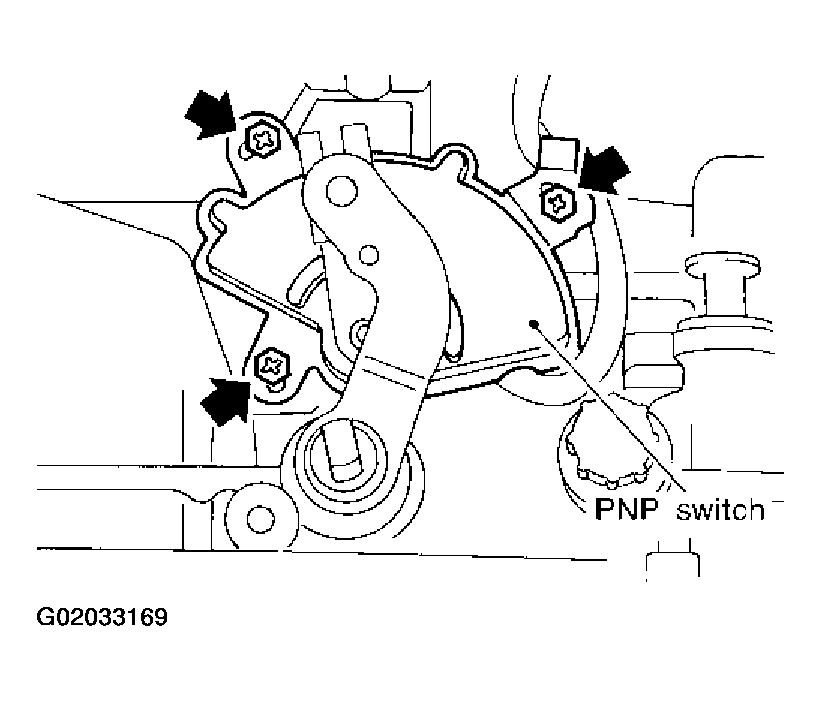

Remove PNP switch from transmission case.

Fig 3: Removing PNP Switch From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

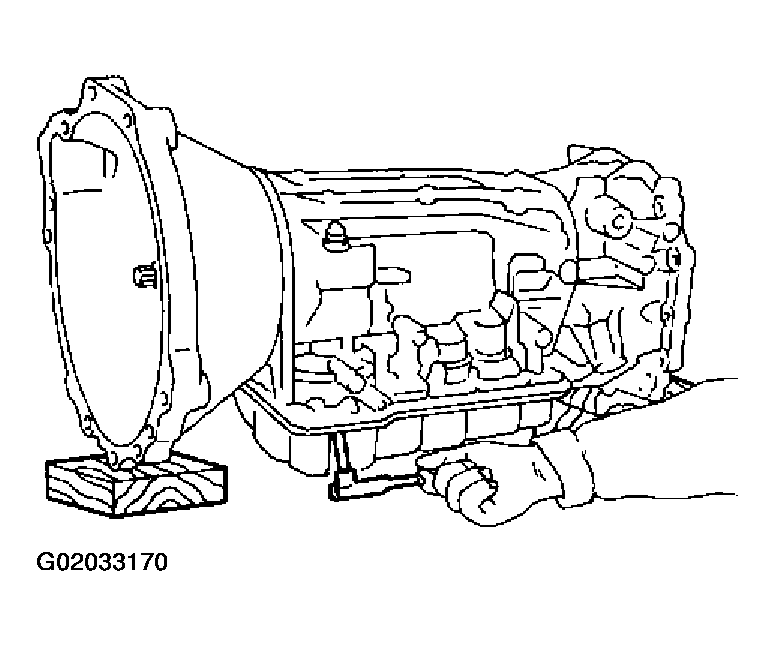

Remove oil pan.
- Always place oil pan straight down so that foreign particles inside will not move.

  Fig 4: Removing Oil Pan
  Courtesy of NISSAN MOTOR CO., U.S.A.

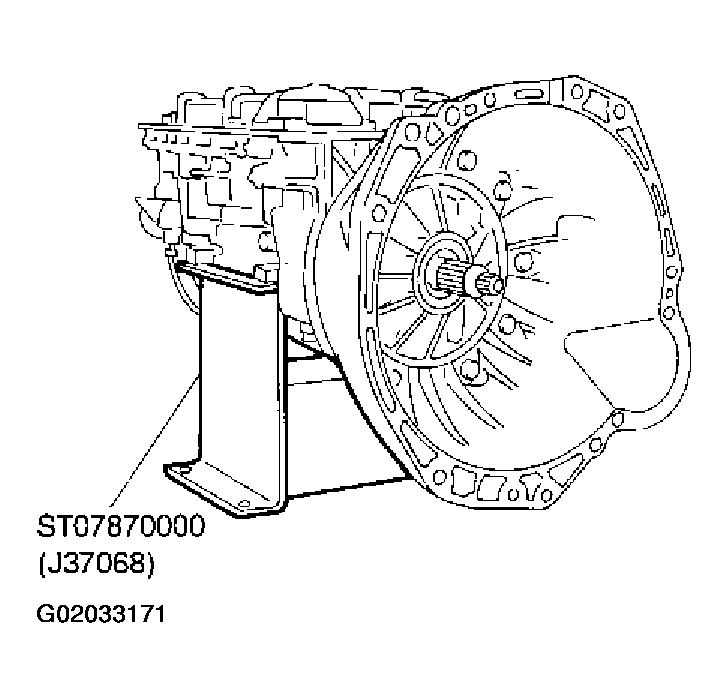

Place transmission into Tool with the control valve facing up.

Fig 5: Placing Transmission Into Tool With Control Valves Facing Up
Courtesy of NISSAN MOTOR CO., U.S.A.

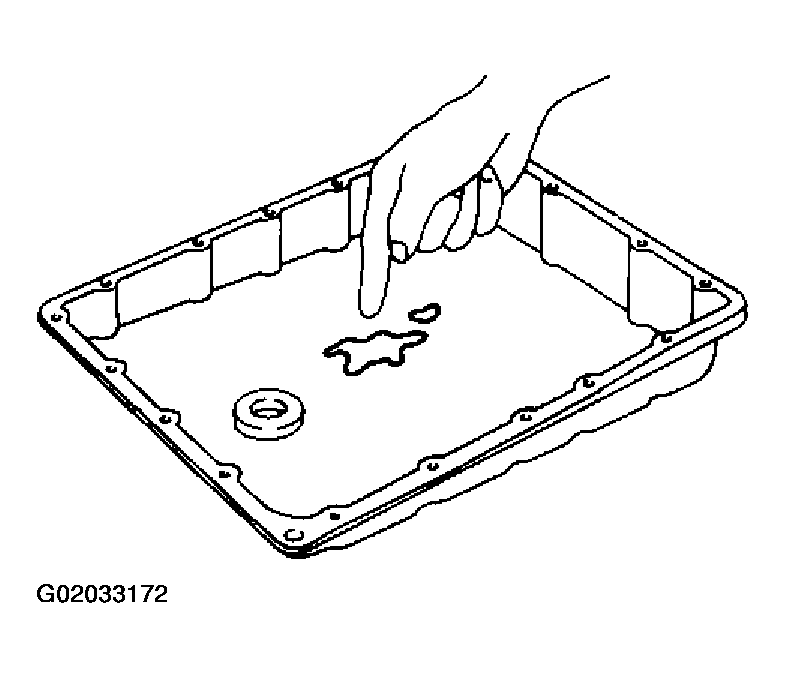

Check foreign materials in oil pan to help determine cause of malfunction. If the fluid is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and may inhibit pump pressure.
- If frictional material is detected, replace radiator after repair of A/T. Refer to " REMOVAL AND INSTALLATION ".

  Fig 6: Checking Foreign Materials In Oil Pan To Determine Cause Of Malfunction
  Courtesy of NISSAN MOTOR CO., U.S.A.

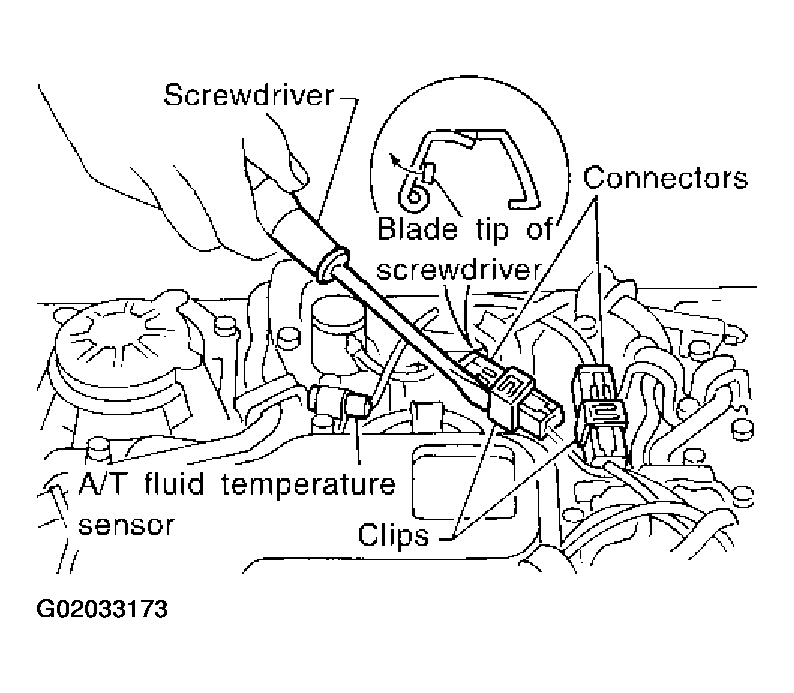

Remove torque converter clutch solenoid valve and A/T fluid temperature sensor connectors.
- Be careful not to damage connector.

  Fig 7: Removing Torque Converter Clutch Solenoid Valve And A/T Fluid Temperature Sensor Connectors
  Courtesy of NISSAN MOTOR CO., U.S.A.

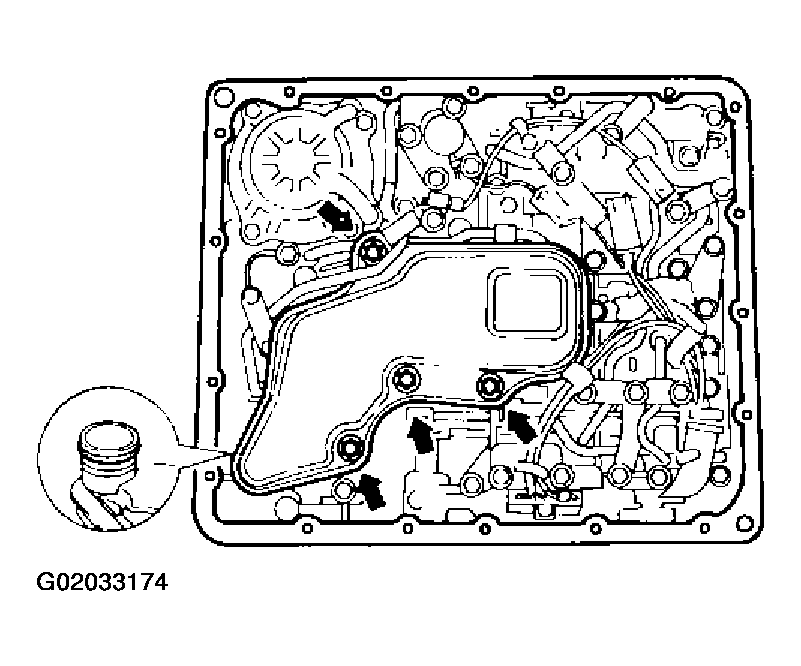

Remove oil strainer.
1. Remove oil strainer from control valve assembly. Then remove O-ring from oil strainer.

  Fig 8: Removing Oil Strainer
  Courtesy of NISSAN MOTOR CO., U.S.A.

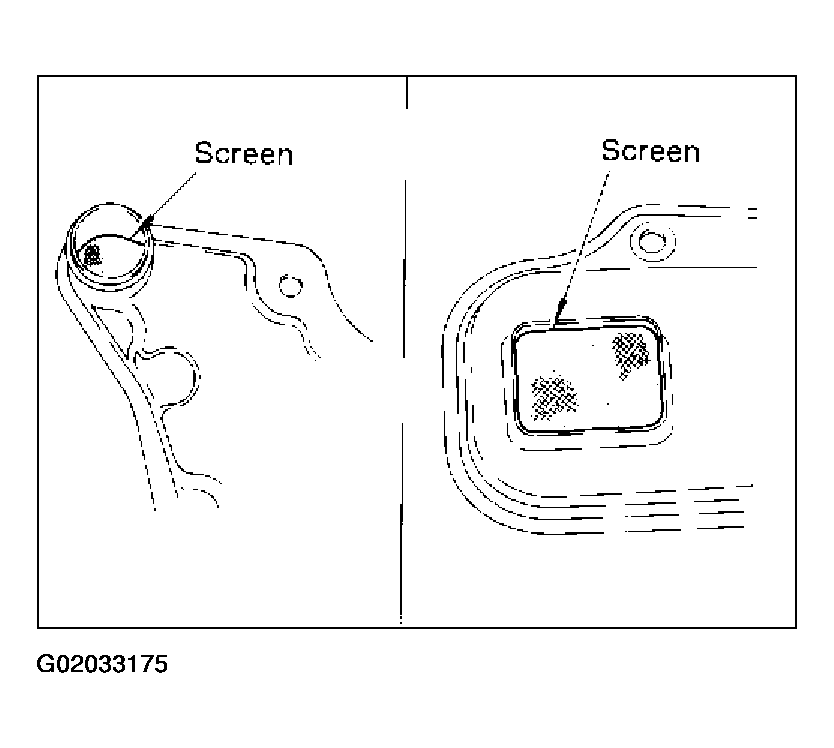

2. Check oil strainer screen for damage.

  Fig 9: Checking Oil Strainer Screen For Damage
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control valve assembly.

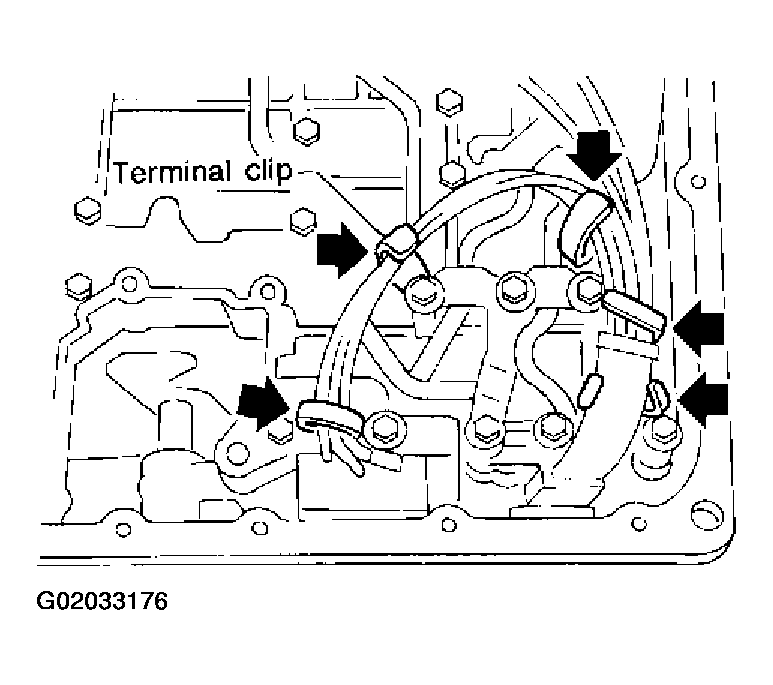

1. Straighten terminal clips to free terminal cords then remove terminal clips.

  Fig 10: Straightening Terminal Clips To Free Terminal Cords, Removing Terminal Clips
  Courtesy of NISSAN MOTOR CO., U.S.A.

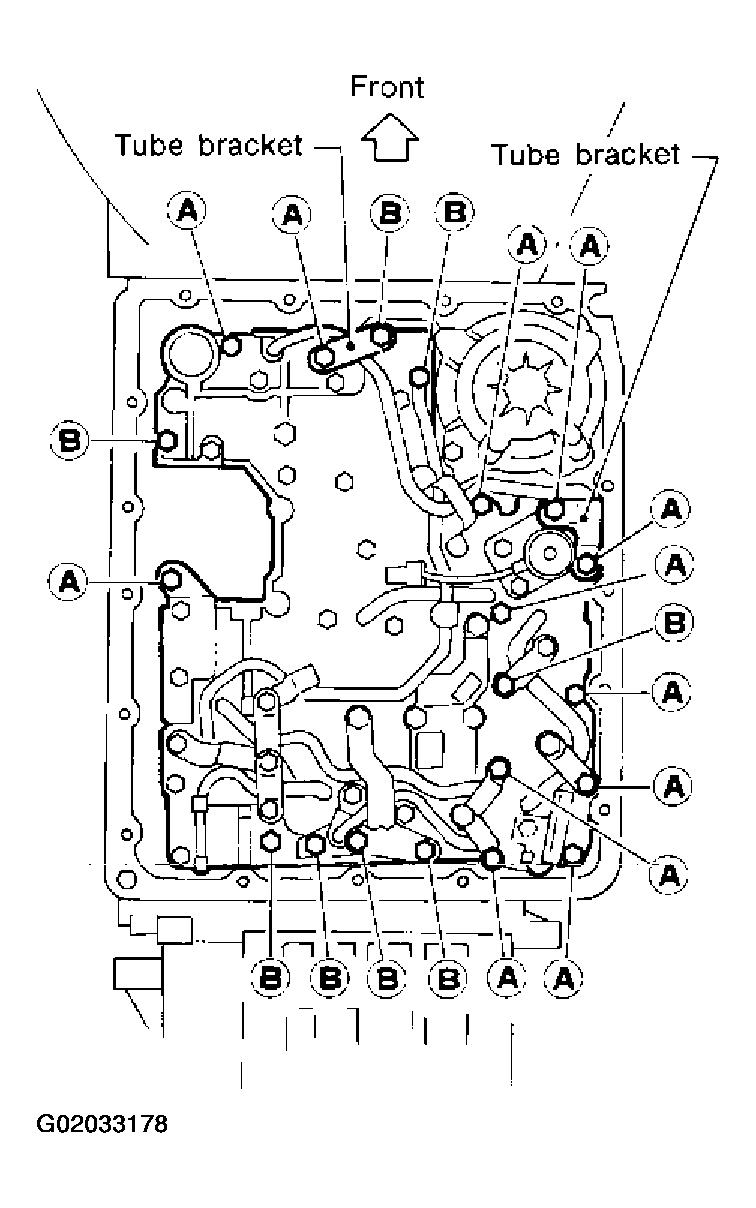

2. Remove bolts A and B, and remove control valve assembly from transmission.

  Fig 11: Identifying Control Valve Assembly Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

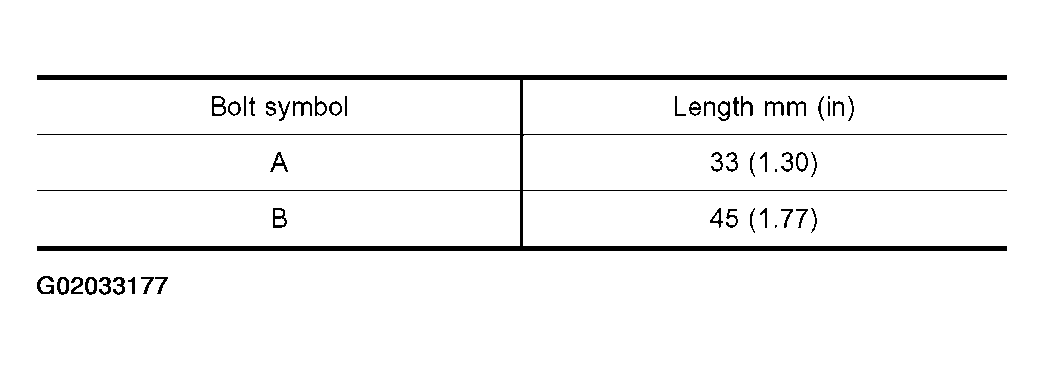

  Fig 12: Control Valve Assembly Bolts Positioning
  Courtesy of NISSAN MOTOR CO., U.S.A.

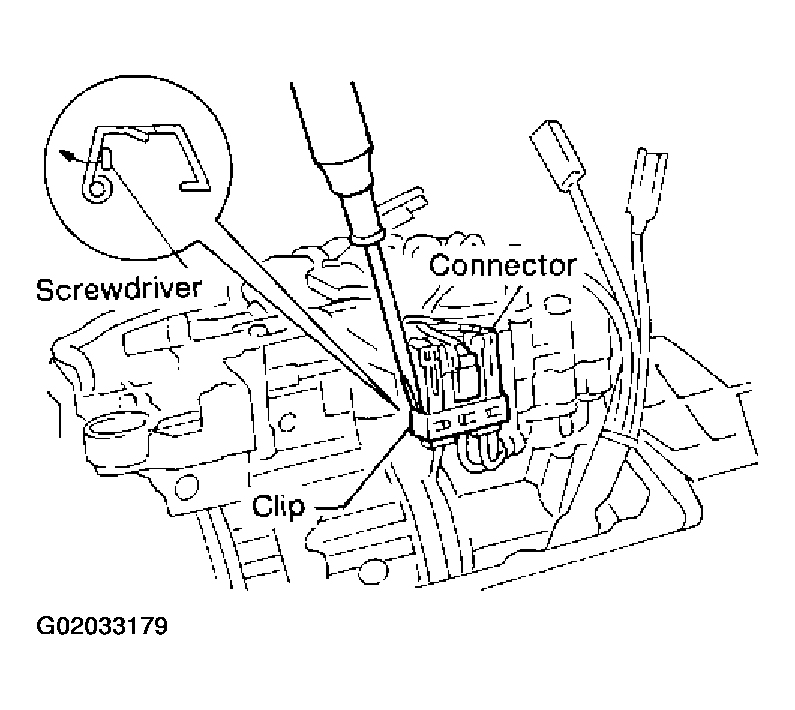

3. Remove solenoid connector.
  - Be careful not to damage connector.

    Fig 13: Removing Solenoid Connector
    Courtesy of NISSAN MOTOR CO., U.S.A.

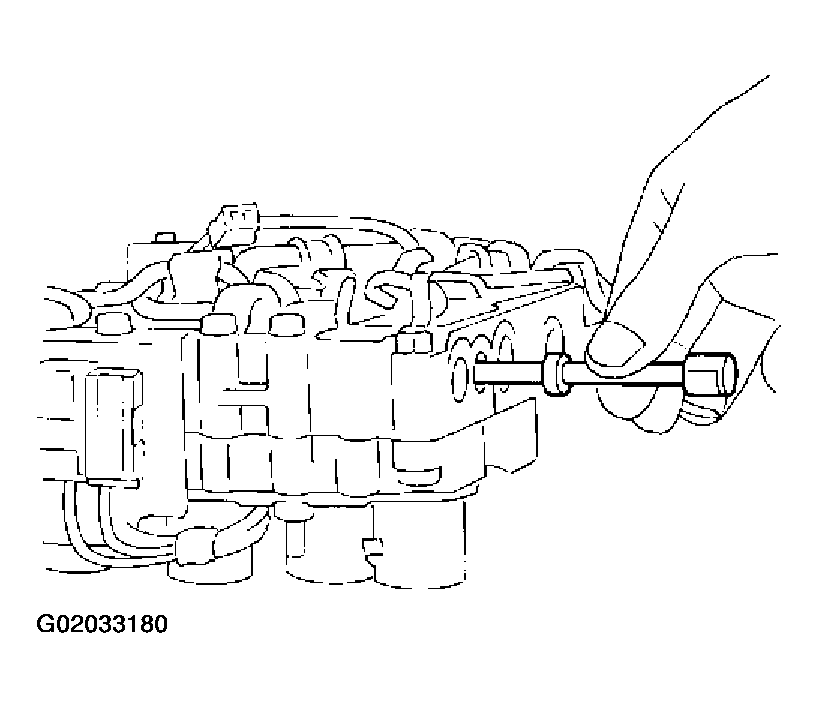

4. Remove manual valve from control valve assembly.

  Fig 14: Removing Manual Valve From Control Valve Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove terminal cord assembly from transmission case while pushing on stopper.
- Be careful not to damage cord.
- Do not remove terminal cord assembly unless it is damaged.

  Fig 15: Removing Terminal Cord Assembly From Transmission Case While Pushing On Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.

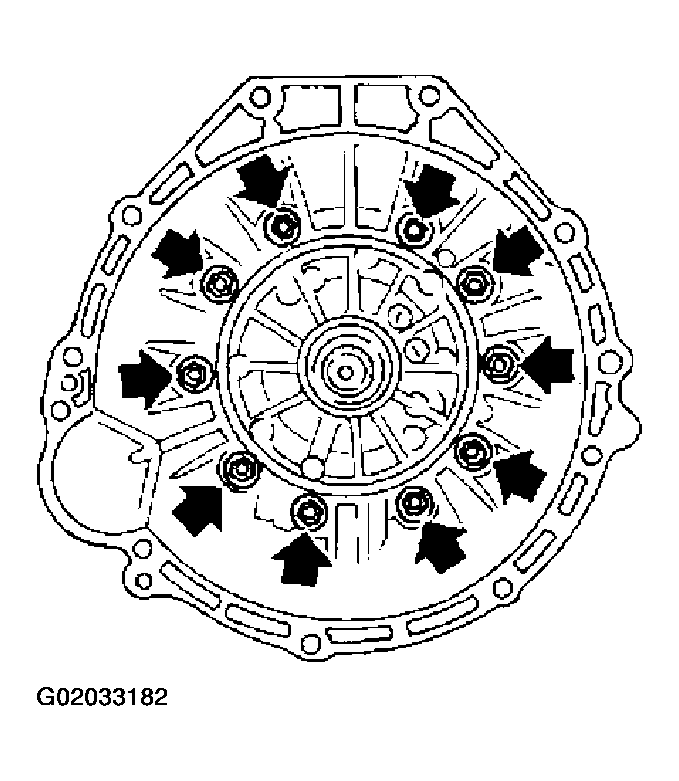

Remove converter housing from transmission case.
- Be careful not to scratch converter housing.

  Fig 16: Removing Converter Housing From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

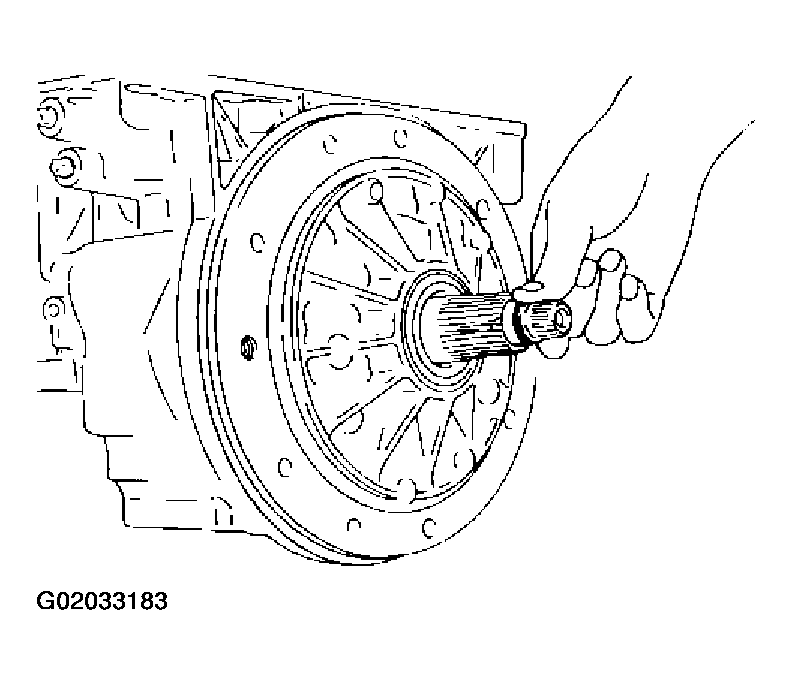

Remove O-ring from input shaft.

Fig 17: Removing O-Ring From Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump assembly.

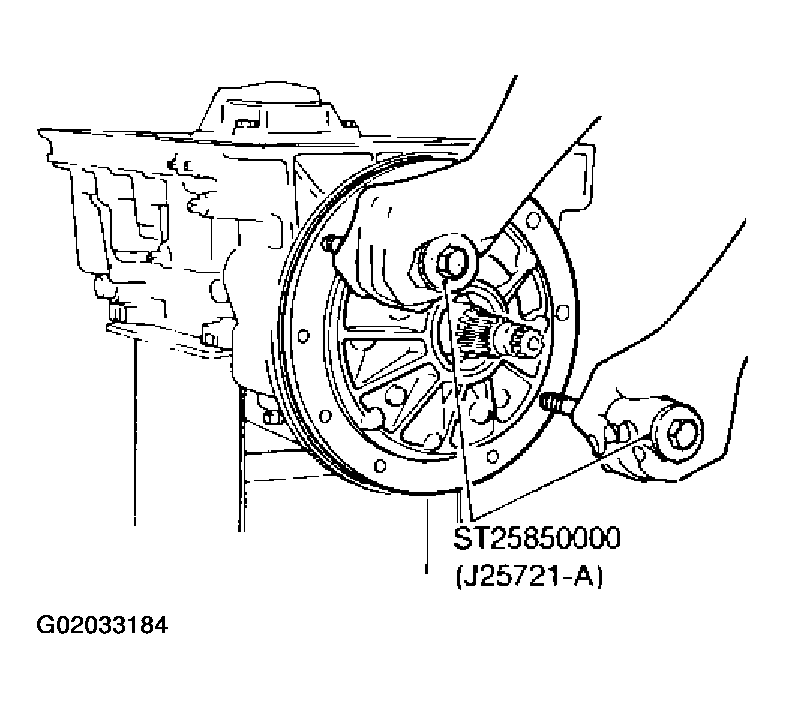

1. Attach Tool to oil pump assembly and extract it evenly from transmission case.

  Fig 18: Removing Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

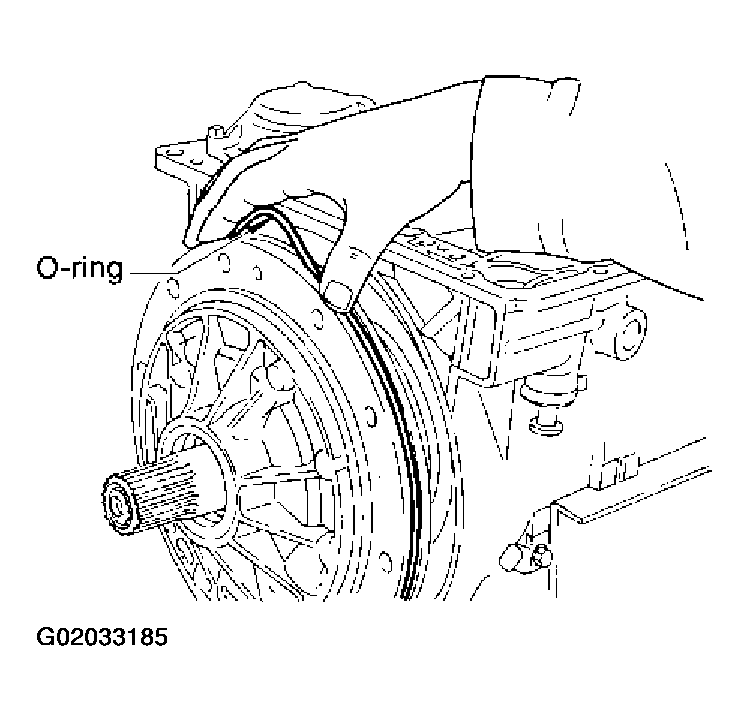

2. Remove O-ring from oil pump assembly.
3. Remove traces of sealant from oil pump housing.
  - Be careful not to scratch pump housing.

    Fig 19: Removing O-Ring From Oil Pump Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.

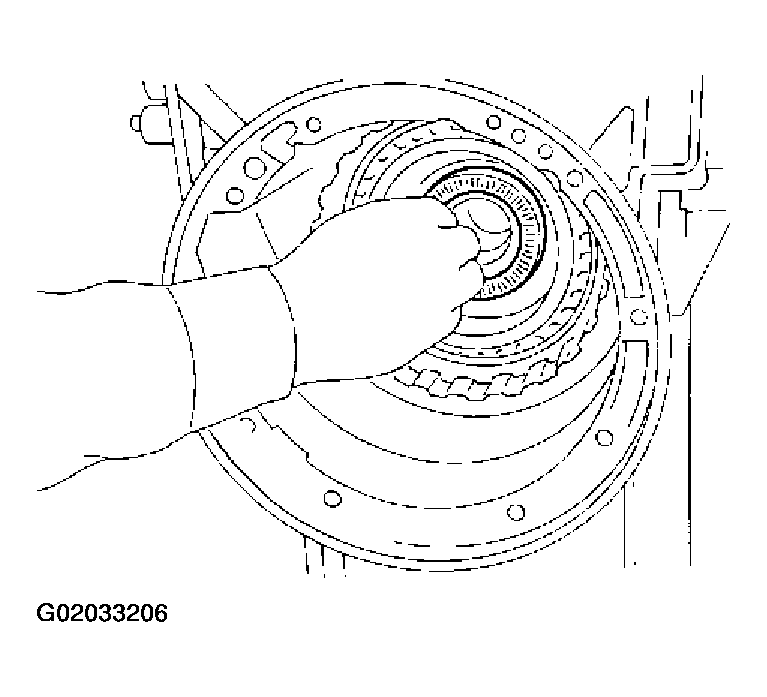

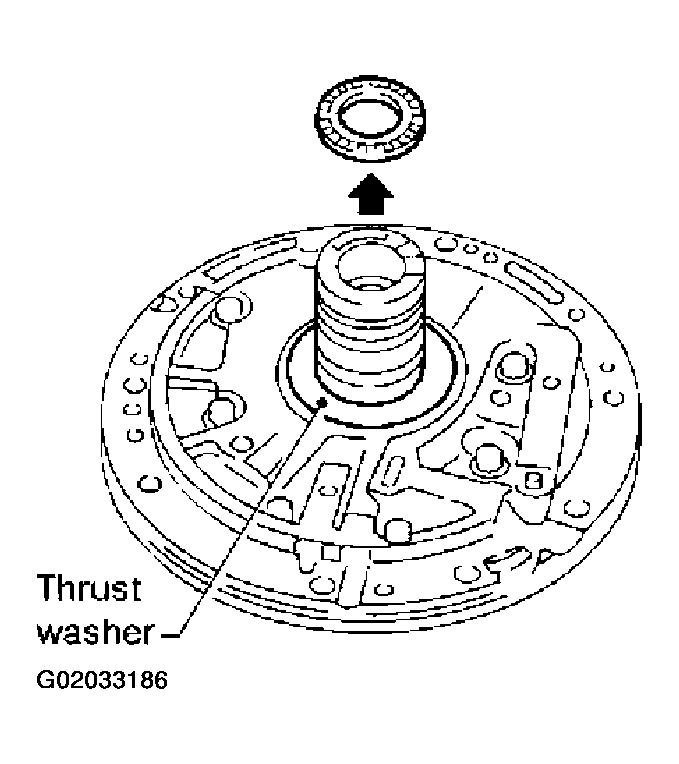

4. Remove needle bearing and thrust washer from oil pump assembly.

  Fig 20: Removing Needle Bearing And Thrust Washer From Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

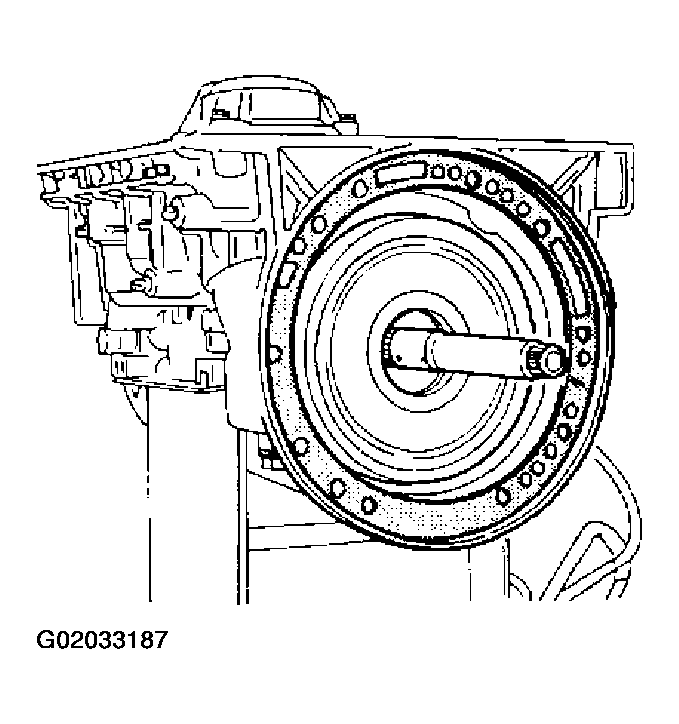

Remove input shaft and oil pump gasket.

Fig 21: Removing Input Shaft And Oil Pump Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

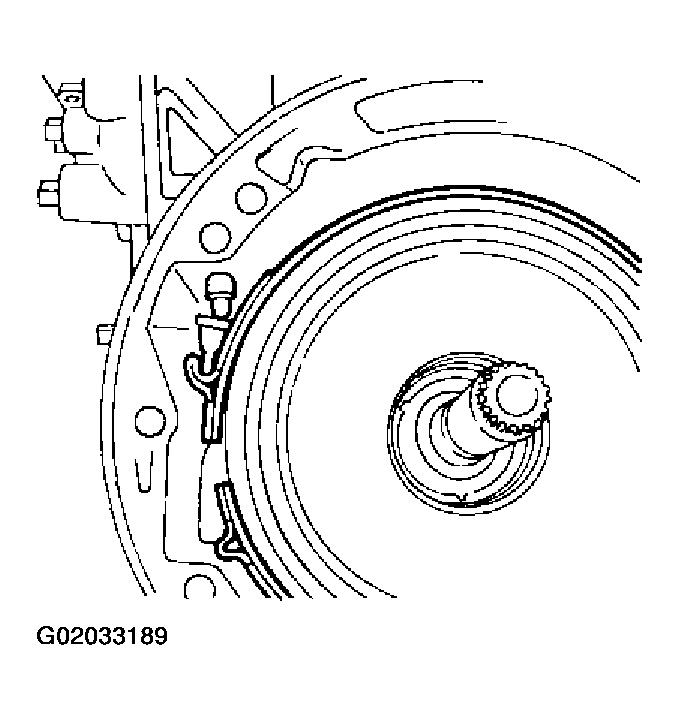

Remove brake band and band strut.
1. Loosen lock nut and remove band servo anchor end pin from transmission case.

  Fig 22: Loosening Lock Nut And Removing Band Servo Anchor End Pin From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove brake band and band strut from transmission case.

  Fig 23: Removing Brake Band And Band Strut From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

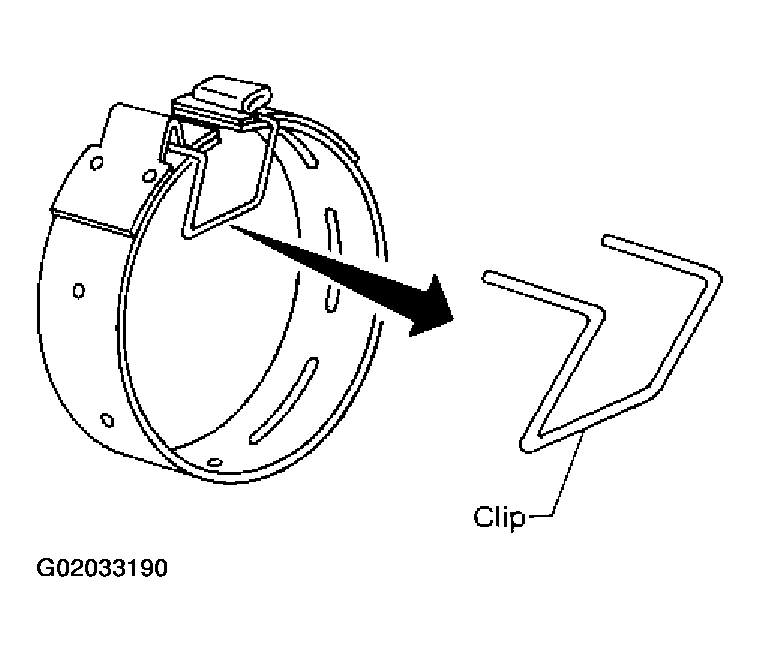

3. Hold brake band in a circular shape with clip.

  Fig 24: Holding Brake Band In A Circular Shape With Clip
  Courtesy of NISSAN MOTOR CO., U.S.A.

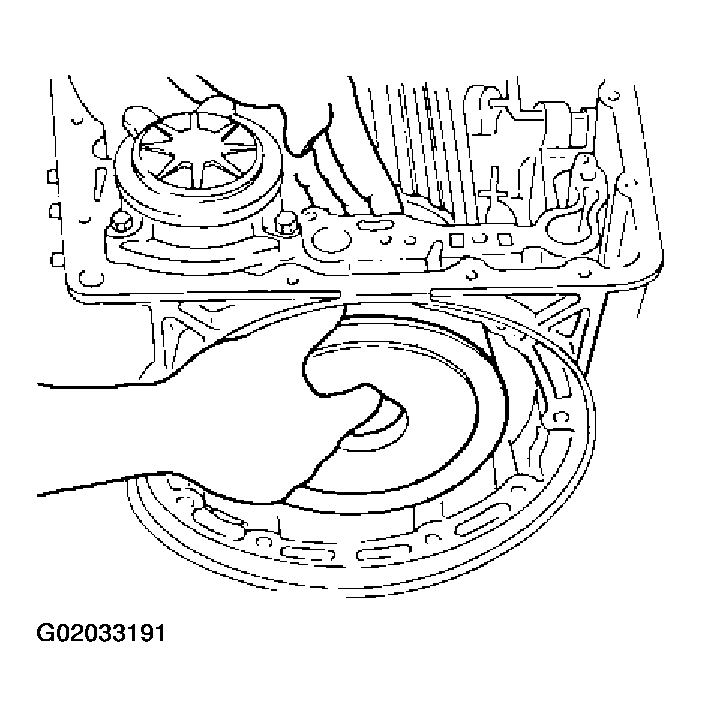

Remove front side clutch and gear components.

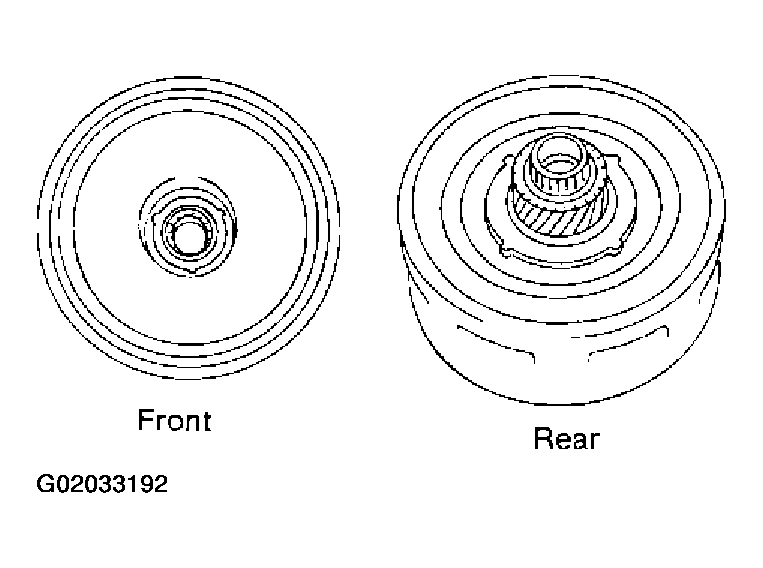

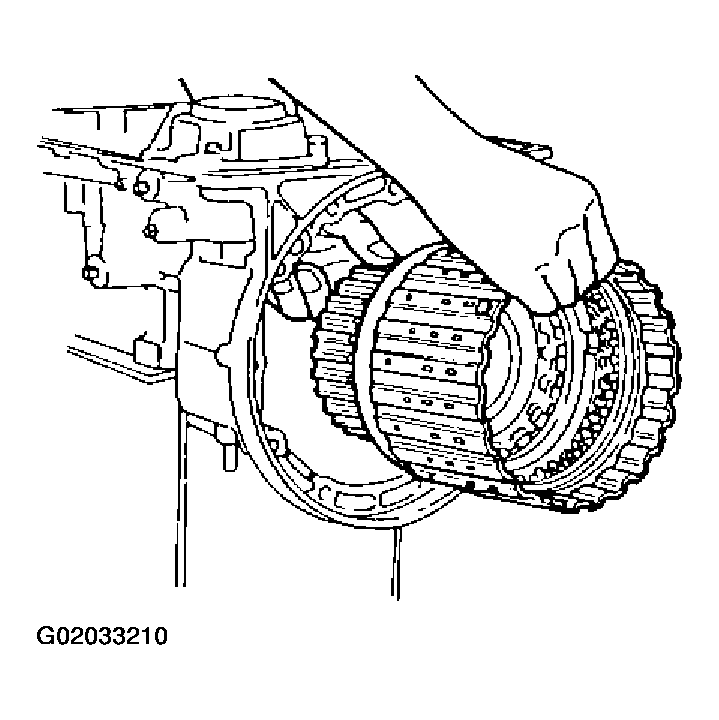

1. Remove clutch pack (reverse clutch, high clutch and front sun gear) from transmission case.

  Fig 25: Removing Clutch Pack From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove front bearing race from clutch pack.
3. Remove rear bearing race from clutch pack.

  Fig 26: Removing Front And Rear Bearing Race From Clutch Pack
  Courtesy of NISSAN MOTOR CO., U.S.A.

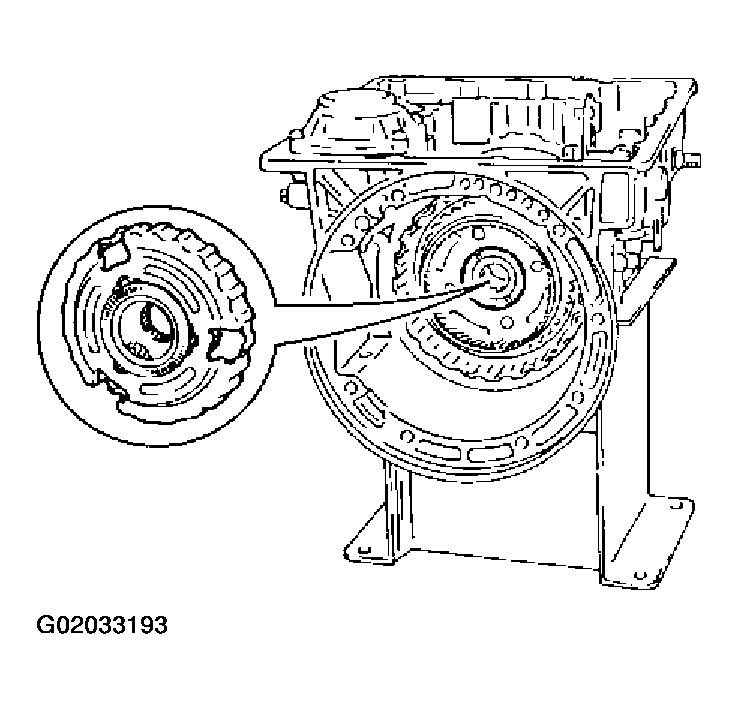

4. Remove front planetary carrier from transmission case.

  Fig 27: Removing Front Planetary Carrier From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

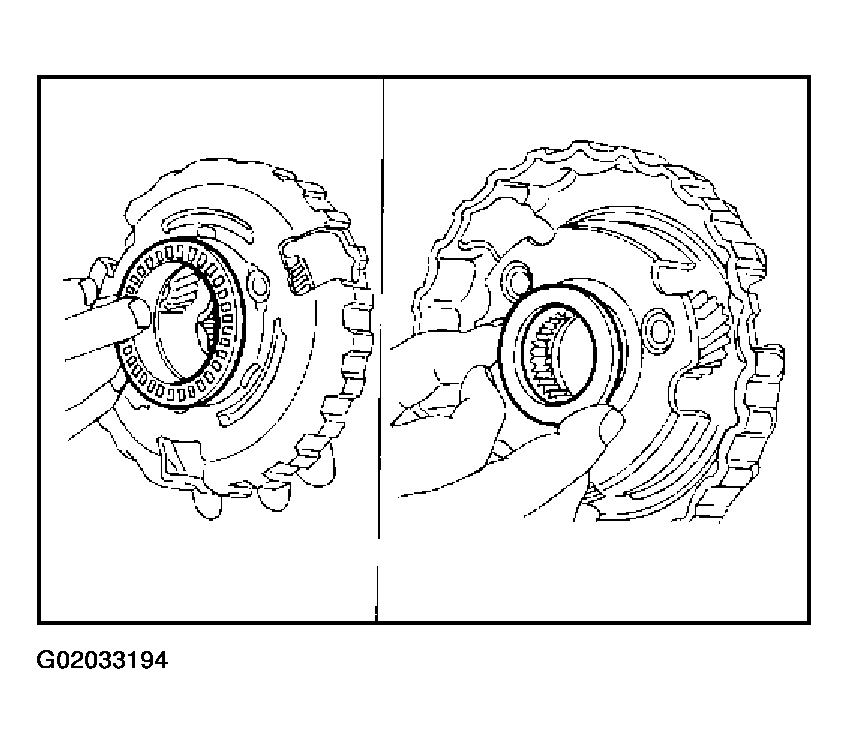

5. Remove front needle bearing from front planetary carrier.
6. Remove rear bearing from front planetary carrier.

  Fig 28: Removing Rear Bearing From Front Planetary Carrier
  Courtesy of NISSAN MOTOR CO., U.S.A.

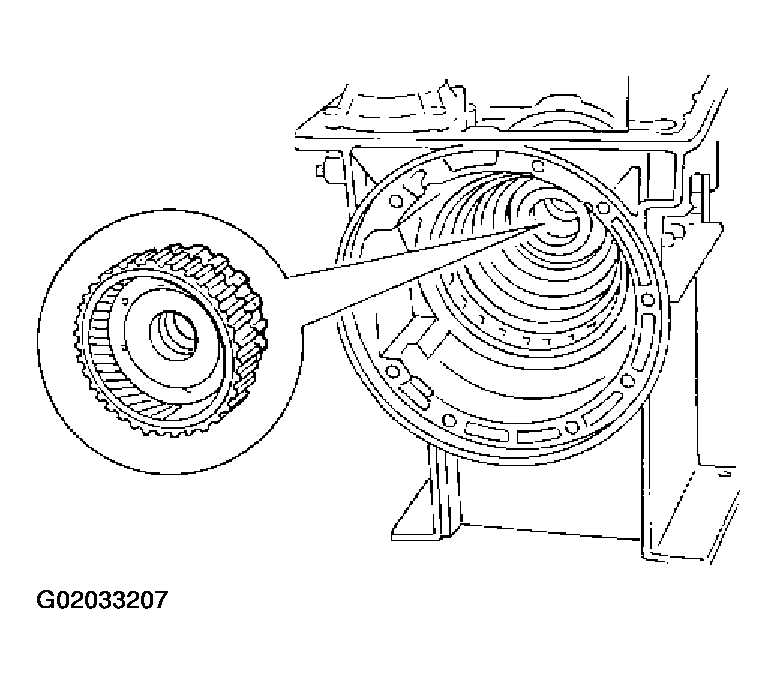

7. Remove rear sun gear from transmission case.

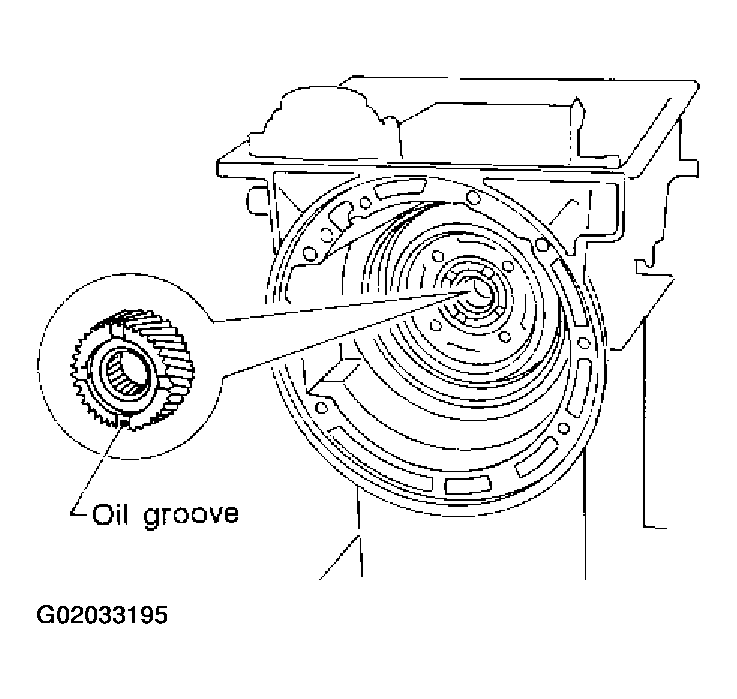

  Fig 29: Locating Oil Groove
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly (2WD model only).
1. Remove rear extension assembly.
2. Remove parking gear and needle bearing.
  CAUTION: Insert your hand between rear extension and transmission case. Detach rear extension assembly while holding parking gear and needle bearing by hand.
3. Remove rear extension gasket.

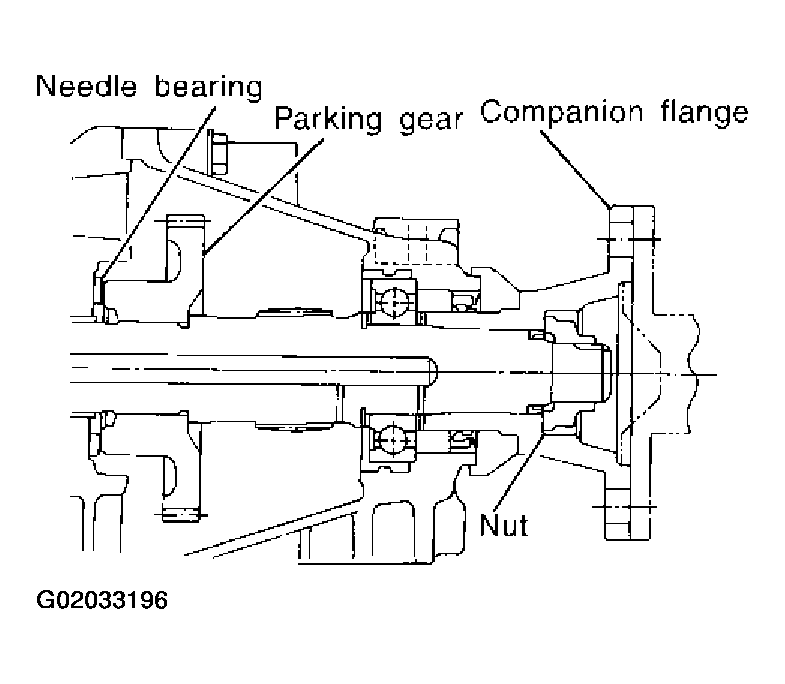

  Fig 30: Locating Needle Bearing, Parking Gear And Companion Flange
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove adapter case (4WD model only).

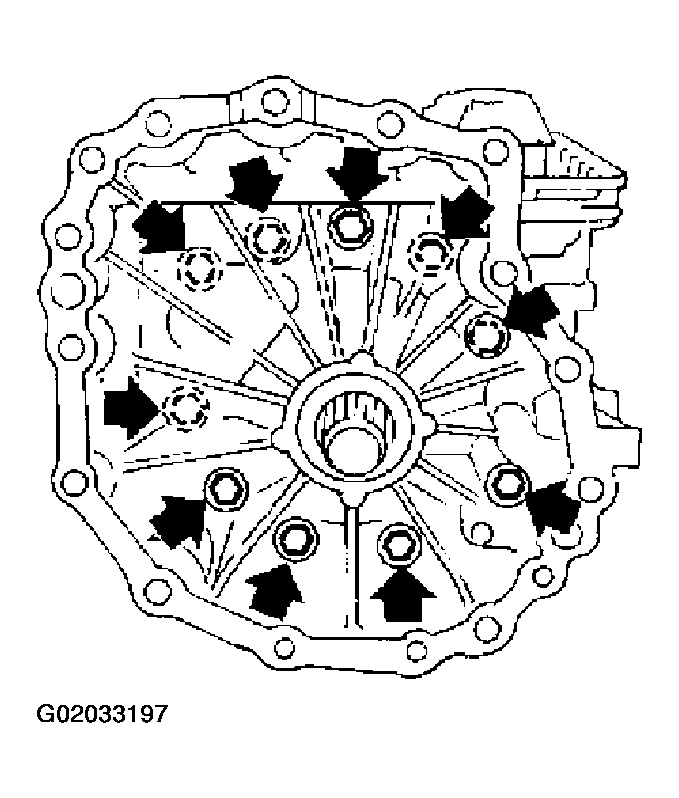

1. Remove adapter case from transmission case.
2. Remove adapter case gasket from transmission case.

  Fig 31: Identifying Adapter Case Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

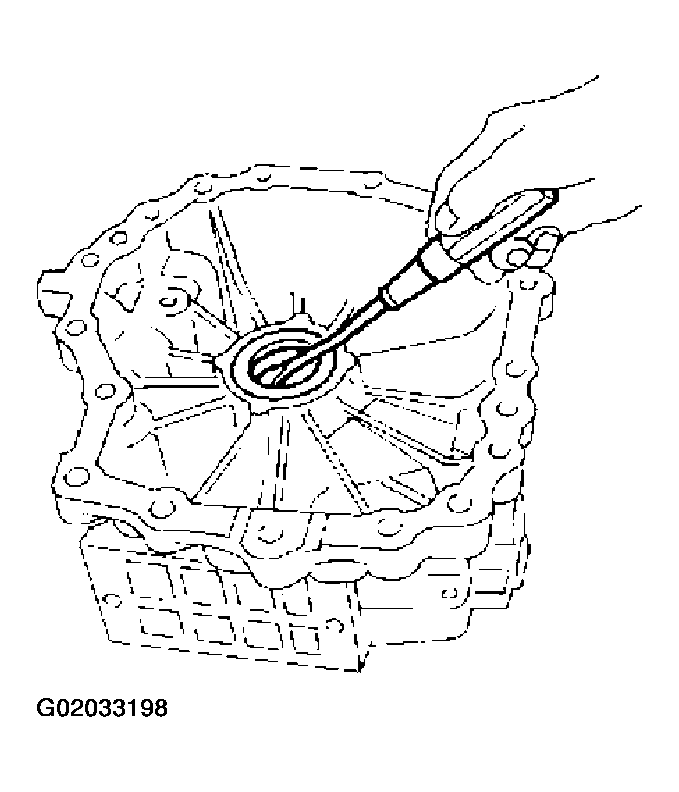

3. Remove oil seal from adapter case.
  - Be careful not to scratch adapter case.
  - Do not remove oil seal unless it is to be replaced.

    Fig 32: Removing Oil Seal From Adapter Case
    Courtesy of NISSAN MOTOR CO., U.S.A.

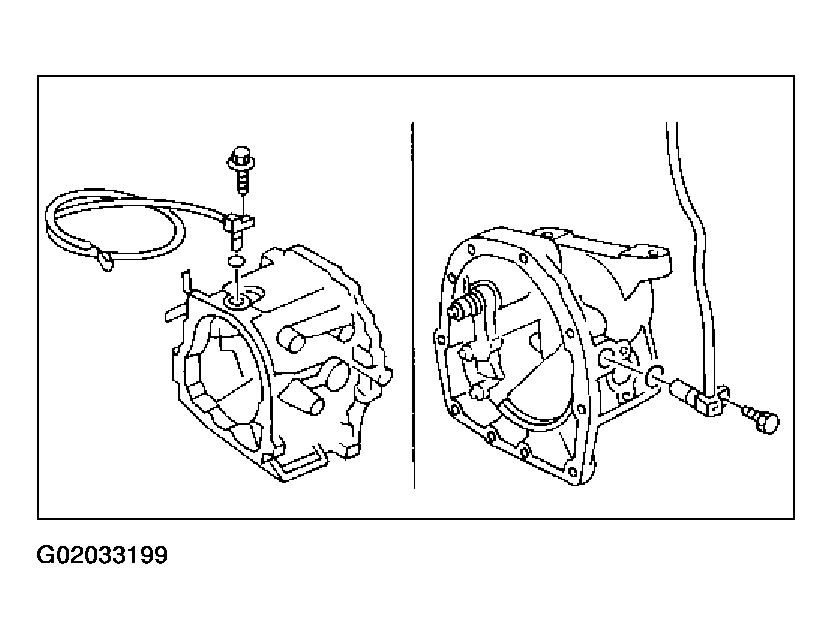

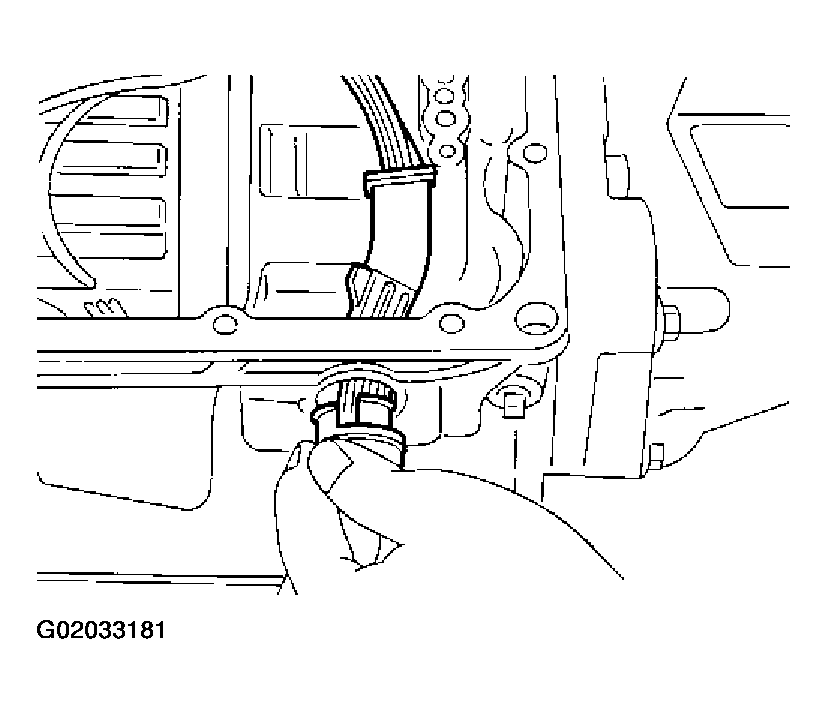

Remove revolution sensor from rear extension or adapter case.
1. Remove O-ring from revolution sensor.

  Fig 33: Removing Revolution Sensor From Rear Extension Or Adapter Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove output shaft and parking gear (4WD model only).

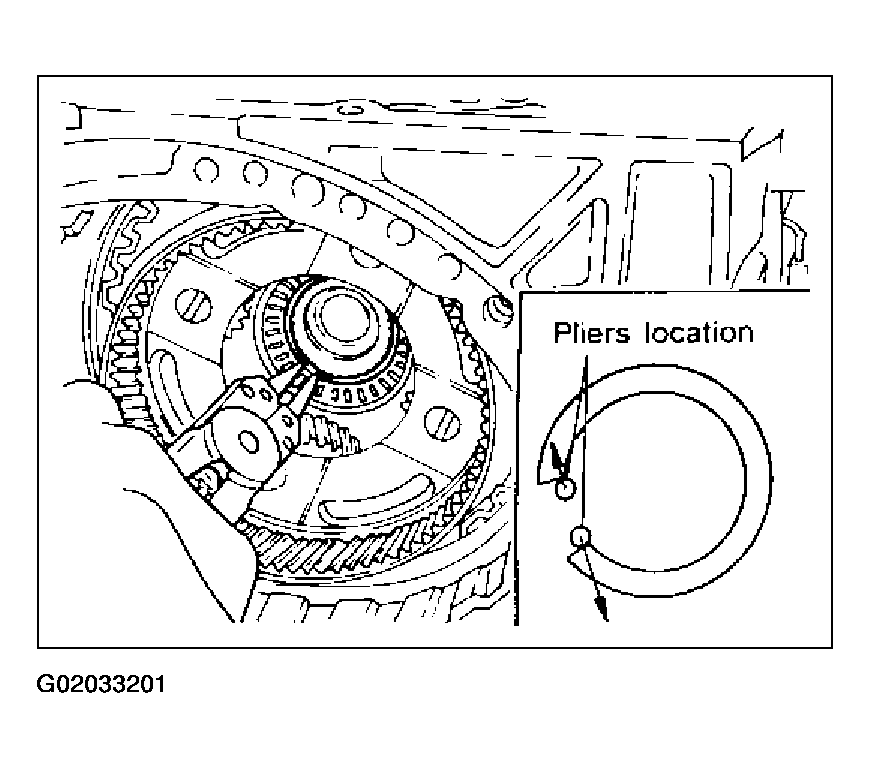

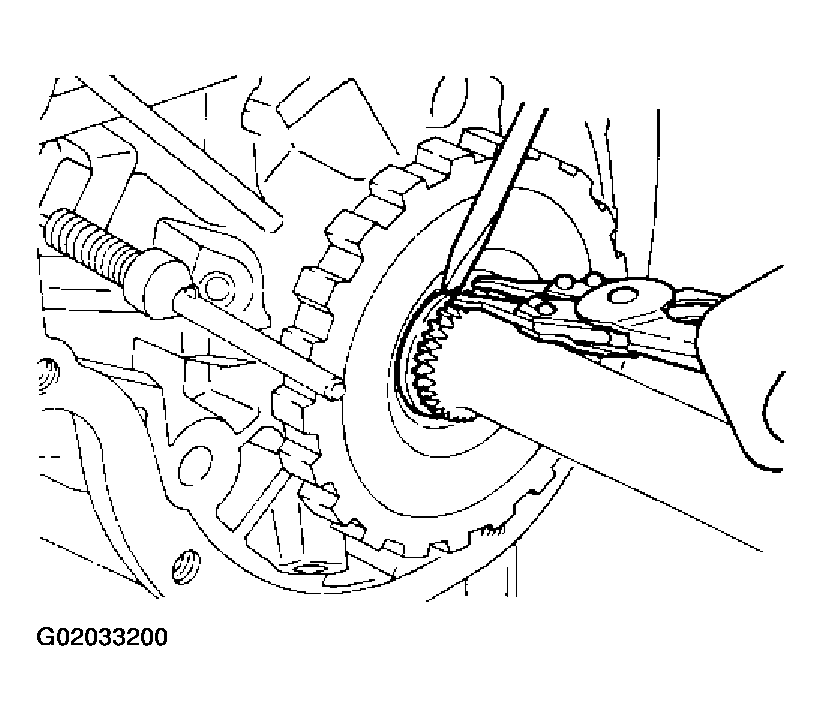

1. Remove rear snap ring from output shaft.

  Fig 34: Removing Rear Snap Ring From Parking Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Slowly push output shaft all the way forward.
  - Do not use excessive force.
3. Remove snap ring from output shaft.

  Fig 35: Removing Snap Ring From Output Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.

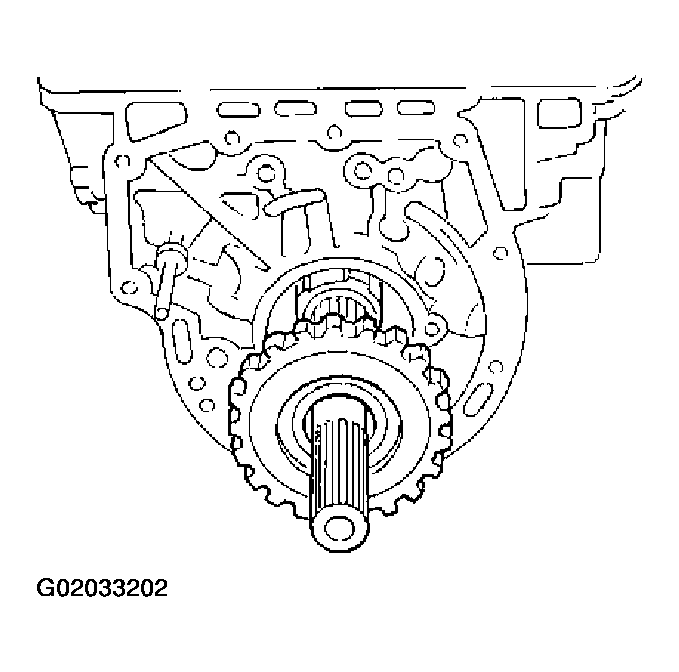

4. Remove output shaft and parking gear as a unit from transmission case.
5. Remove parking gear from output shaft.

  Fig 36: Removing Output Shaft And Parking Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.

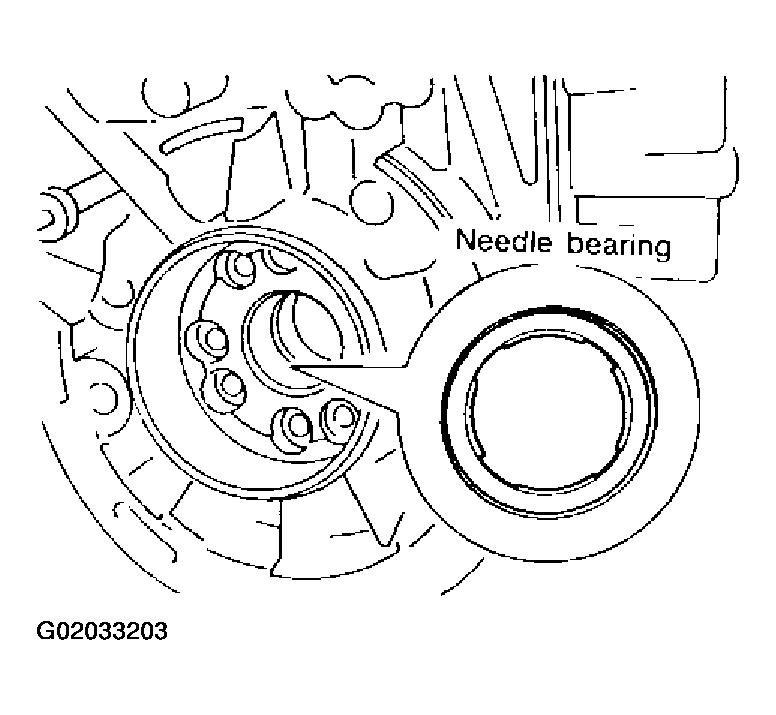

6. Remove needle bearing from transmission case.

  Fig 37: Removing Needle Bearing From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear side clutch and gear components.

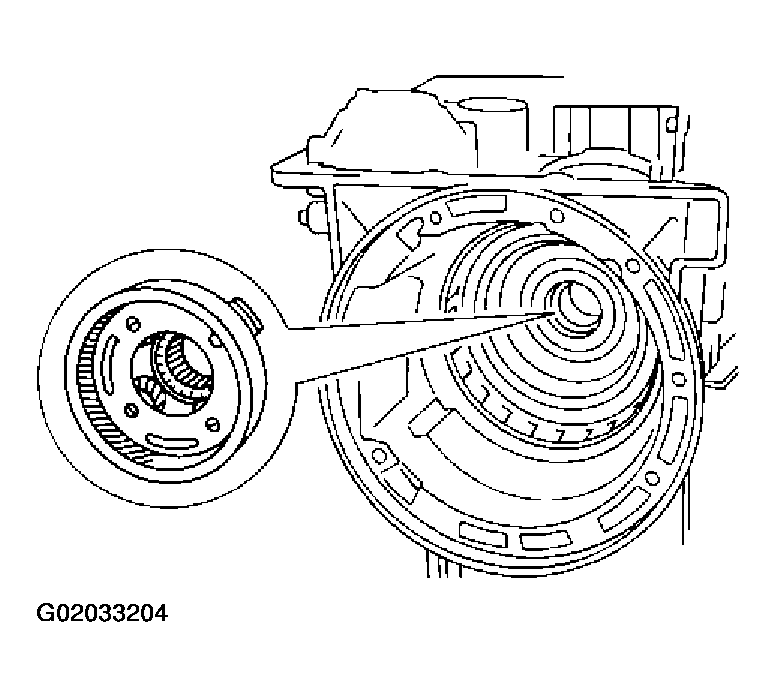

1. Remove front internal gear.

  Fig 38: Removing Front Internal Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.

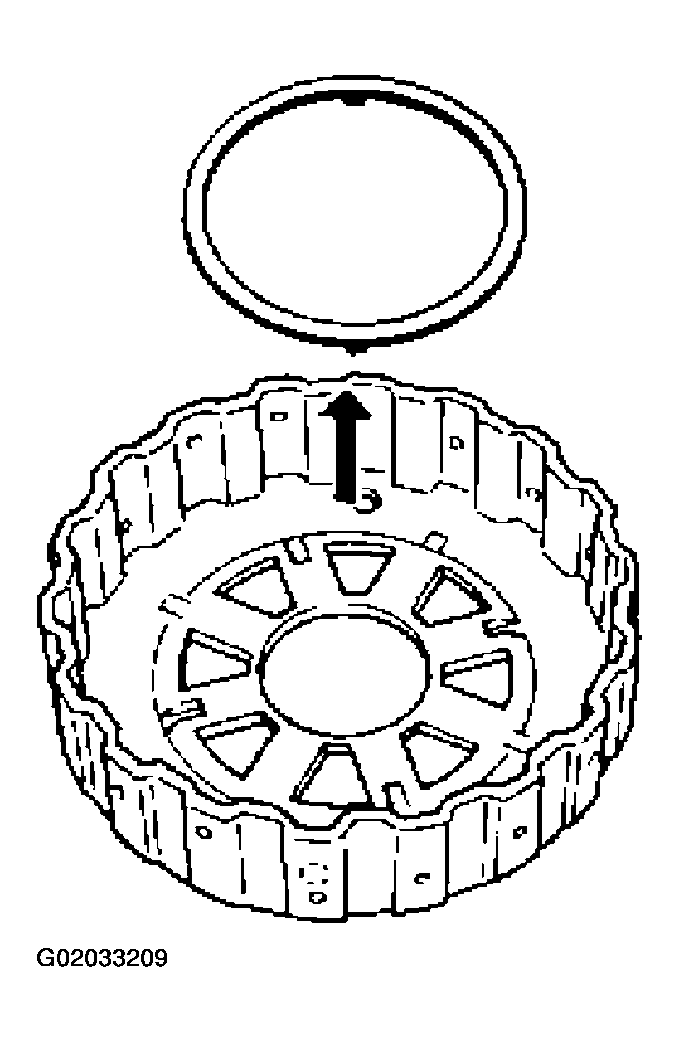

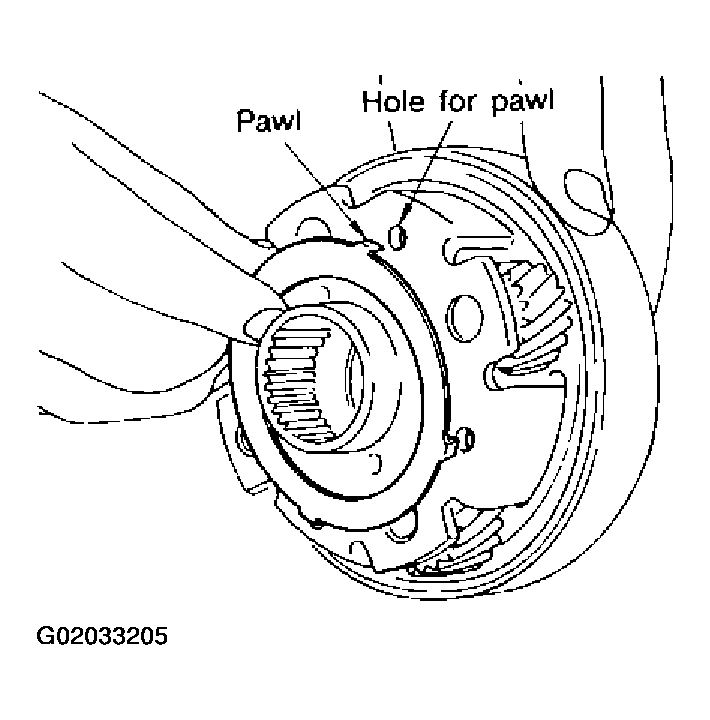

2. Remove bearing race from front internal gear.

  Fig 39: Removing Bearing Race From Front Internal Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove needle bearing from rear internal gear.

  Fig 40: Removing Needle Bearing From Rear Internal Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove rear internal gear, forward clutch hub and overrun clutch hub as a set from transmission case.

  Fig 41: Removing Rear Internal Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.

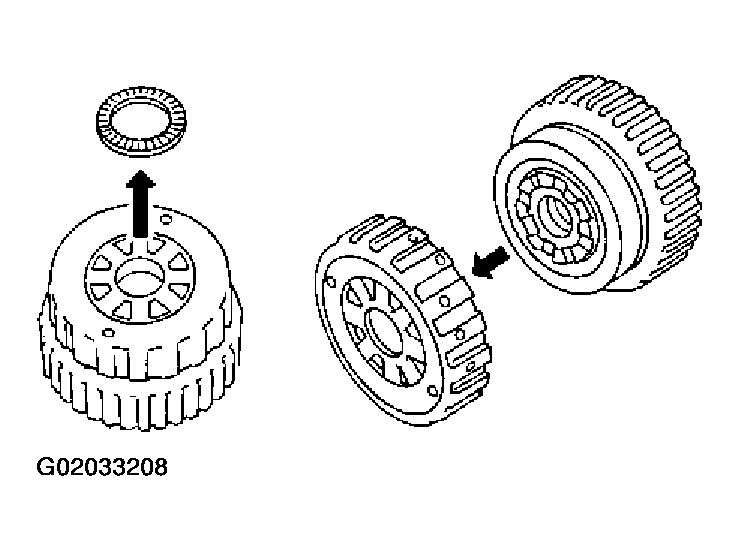

5. Remove needle bearing from overrun clutch hub.
6. Remove overrun clutch hub from rear internal gear and forward clutch hub.

  Fig 42: Removing Overrun Clutch Hub From Rear Internal Gear And Forward Clutch Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Remove thrust washer from overrun clutch hub.

  Fig 43: Removing Thrust Washer From Overrun Clutch Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.
8. Remove forward clutch assembly from transmission case.

  Fig 44: Removing Forward Clutch Assembly From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove band servo and accumulator components.
1. Remove band servo retainer from transmission case.

  Fig 45: Removing Band Servo Retainer From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

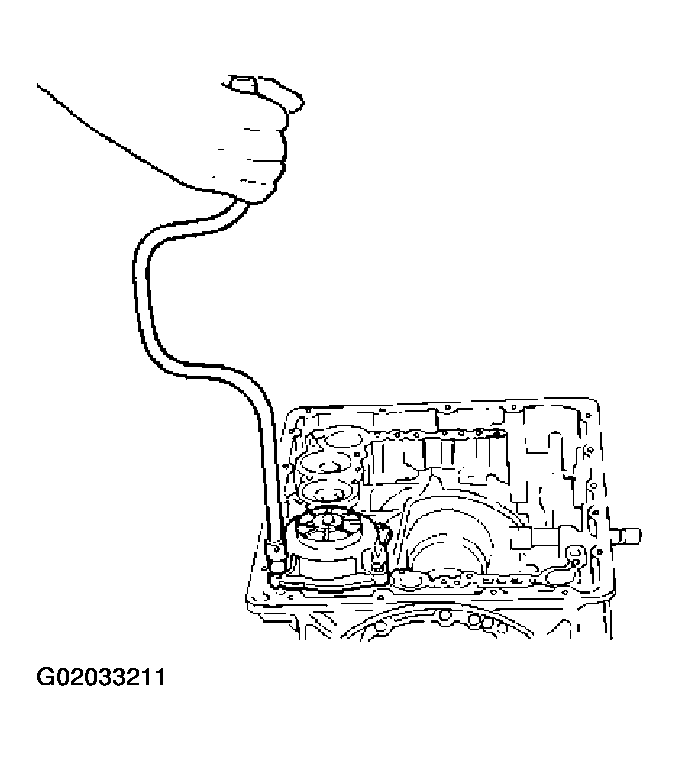

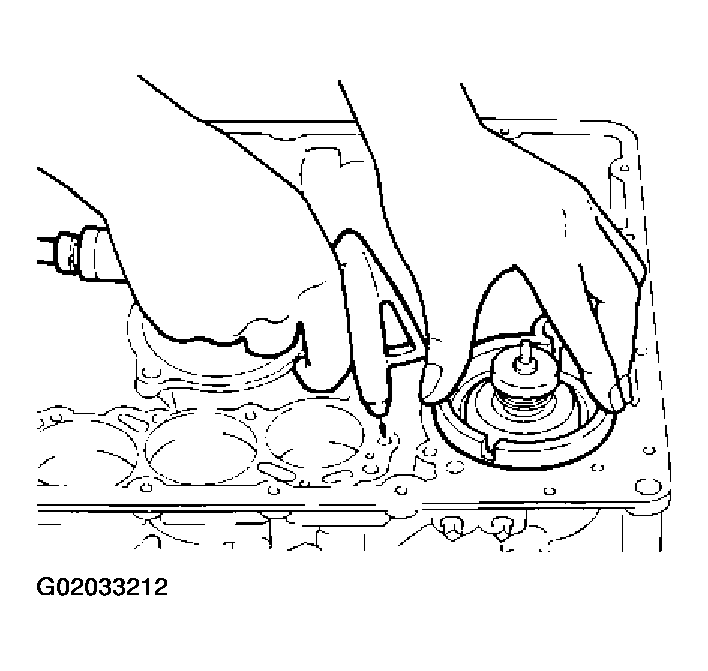

2. Apply compressed air to oil hole until band servo piston comes out of transmission case.
  - Hold piston with a rag and gradually direct air to oil hole.
3. Remove return springs.

  Fig 46: Applying Compressed Air To Oil Hole Until Band Servo Piston Comes Out Of Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove springs from accumulator pistons B, C and D.
5. Apply compressed air to each oil hole until piston comes out.
  - Hold piston with a rag and gradually direct air to oil hole.

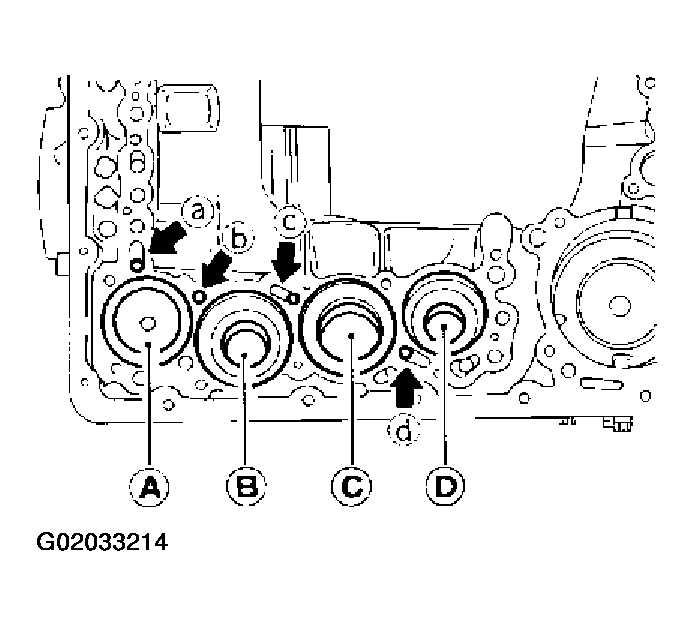

    Fig 47: Identification Of Accumulator Pistons And Oil Holes
    Courtesy of NISSAN MOTOR CO., U.S.A.

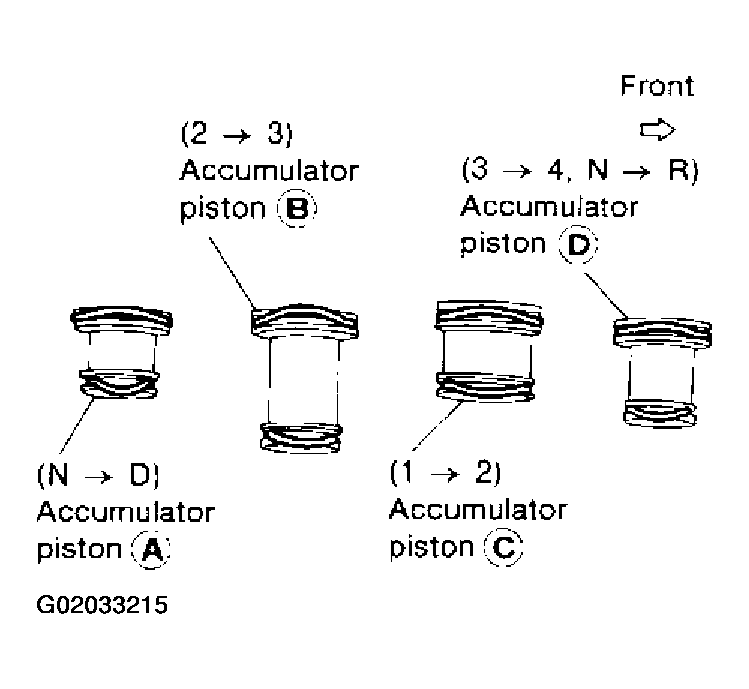

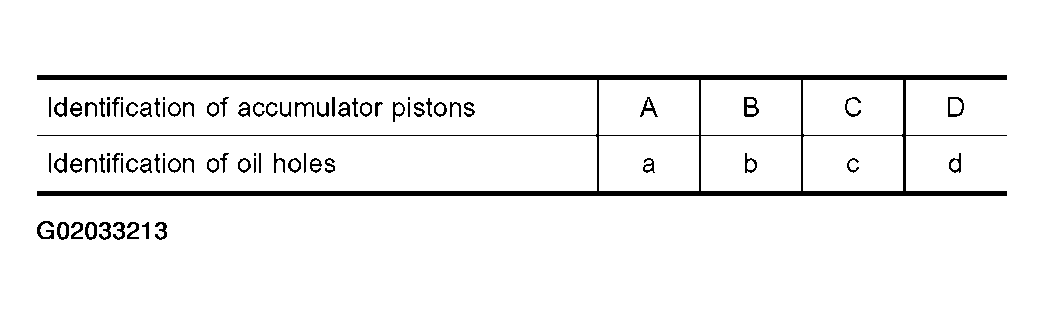

    Fig 48: Identifying Of Accumulator Pistons
    Courtesy of NISSAN MOTOR CO., U.S.A.
6. Remove O-ring from each piston.

  Fig 49: Removing O-Ring From Each Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.

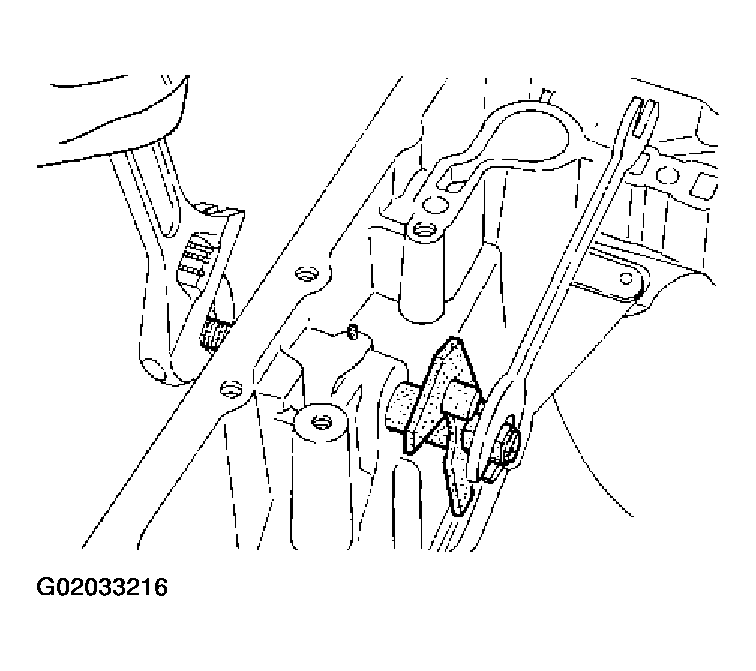

Remove manual shaft components, if necessary.

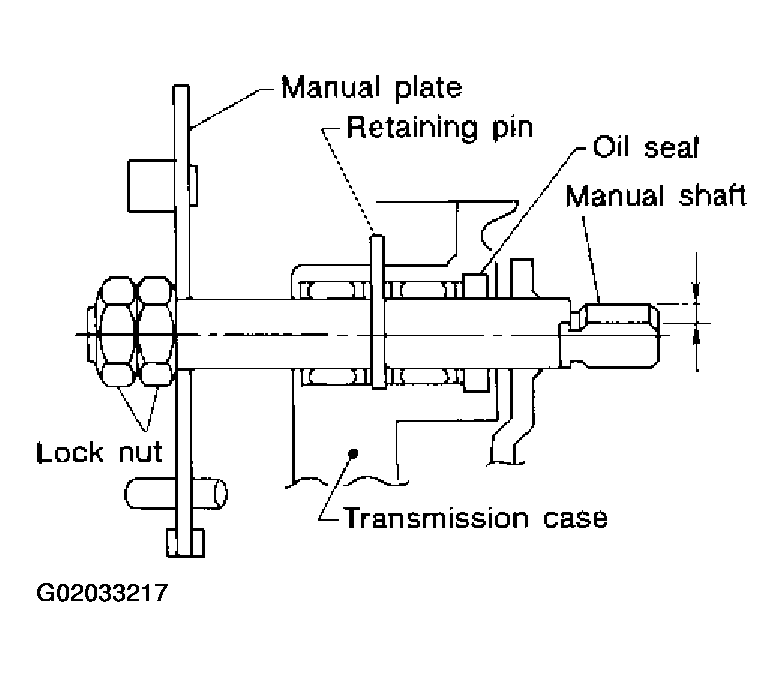

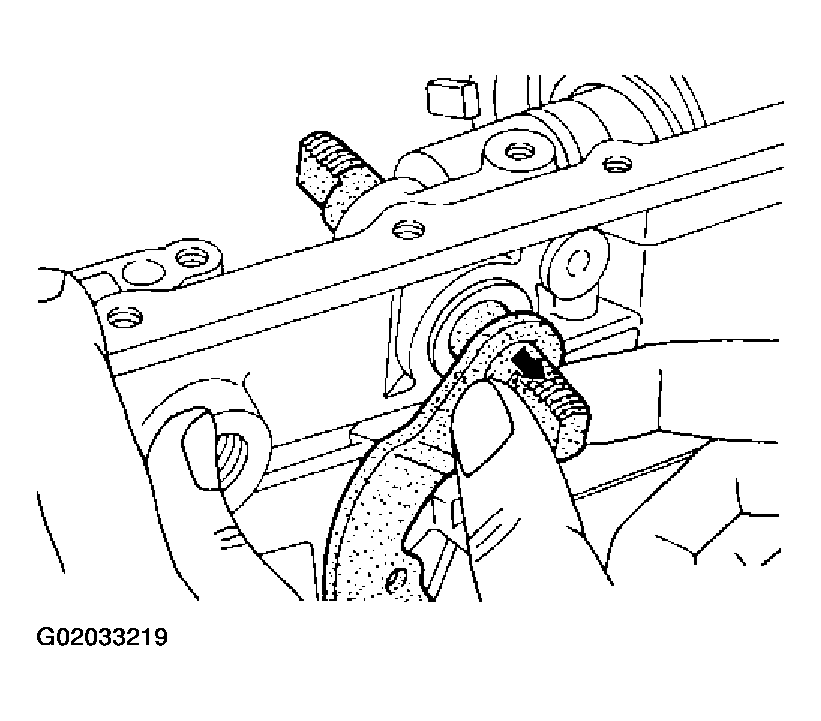

1. Hold width across flats of manual shaft (outside the transmission case) and remove lock nut from shaft.

  Fig 50: Holding Width Across Flats Of Manual Shaft And Removing Lock Nut From Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove retaining pin from transmission case.

  Fig 51: Removing Retaining Pin From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

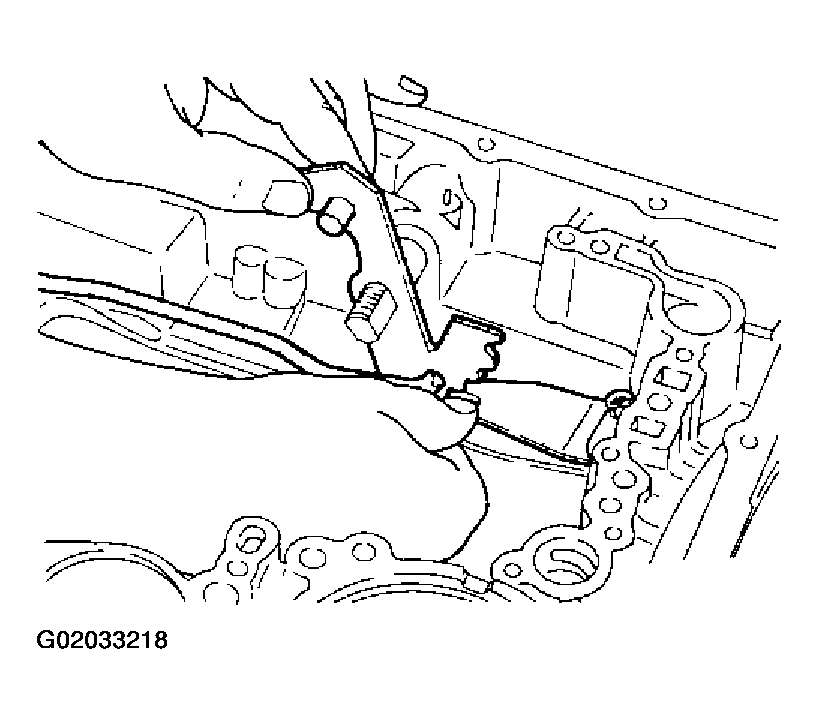

3. While pushing detent spring down, remove manual plate and parking rod from transmission case.

  Fig 52: Removing Manual Plate And Parking Rod From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove manual shaft from transmission case.

  Fig 53: Removing Manual Shaft From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

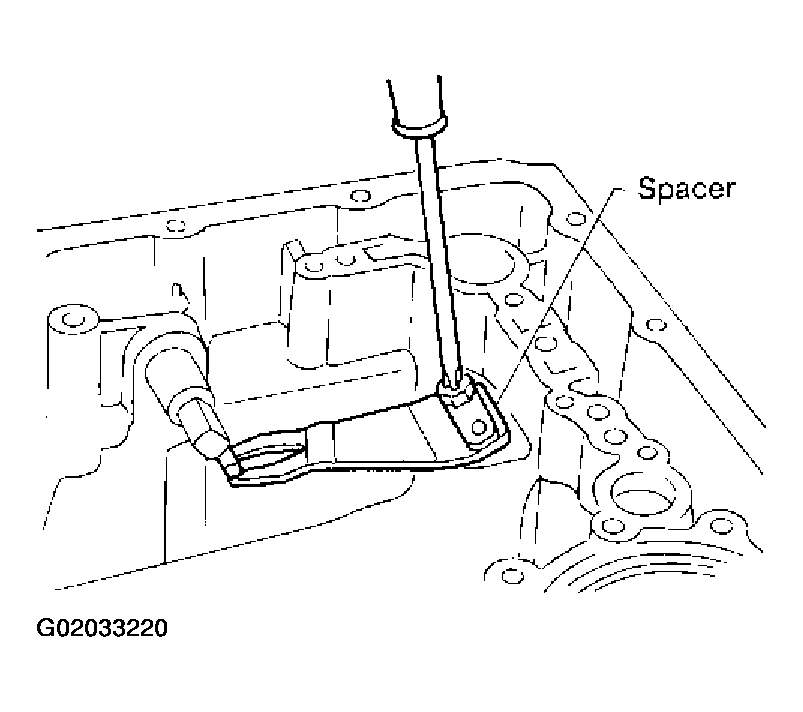

5. Remove spacer and detent spring from transmission case.

  Fig 54: Removing Spacer And Detent Spring From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.

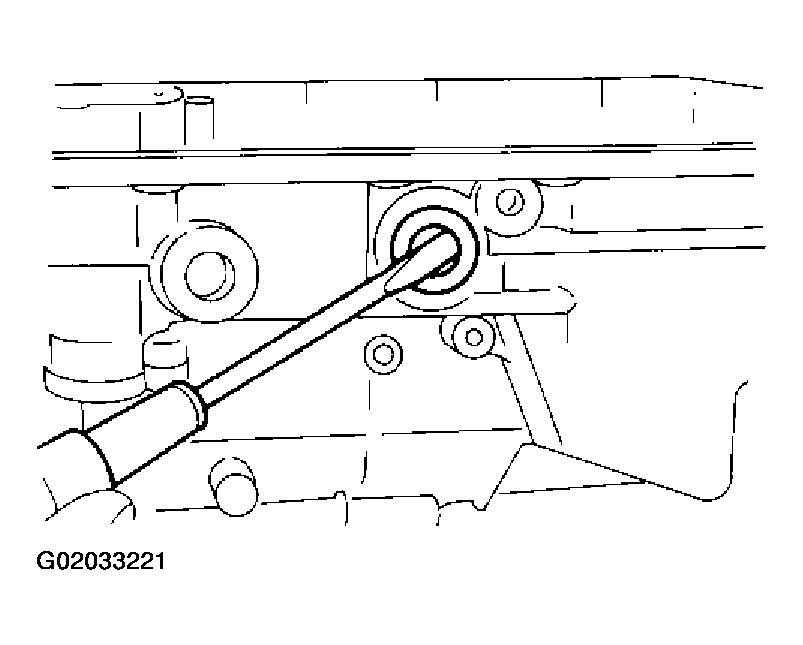

6. Remove oil seal from transmission case.

  Fig 55: Removing Oil Seal From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
