Read Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

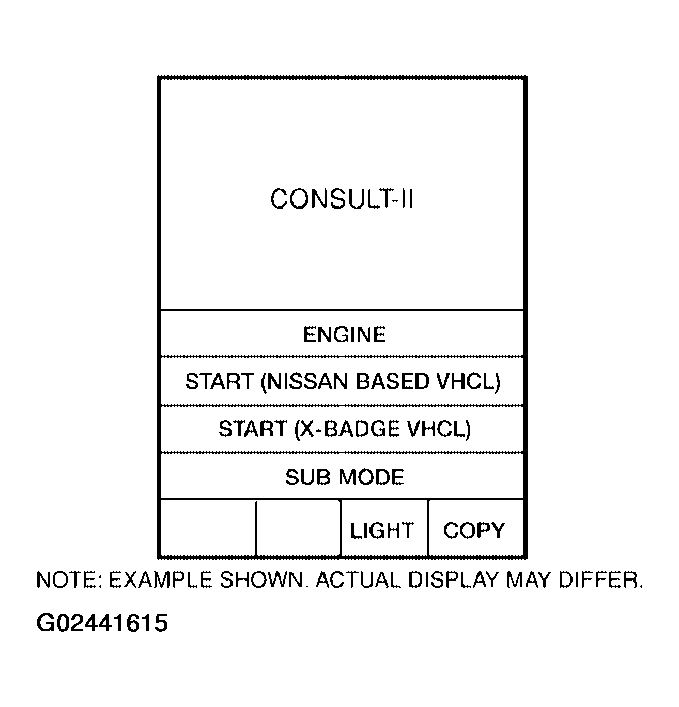

    Fig 1: Connecting CONSULT-II And CONSULT-II CONVERTER To Data Link Connector And Turning Ignition Switch ON
    G02441615Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

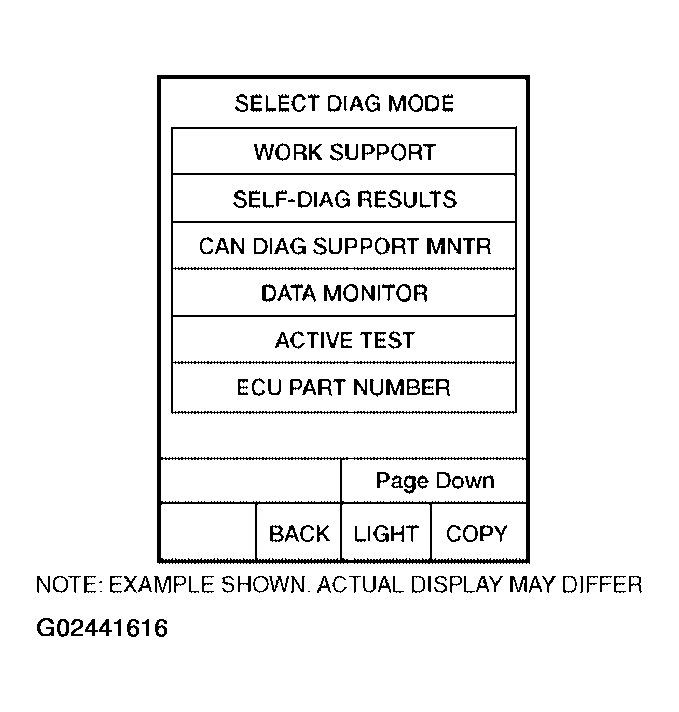

    Fig 2: Locating "START (NISSAN BASED VHCL)"
    G02441616Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

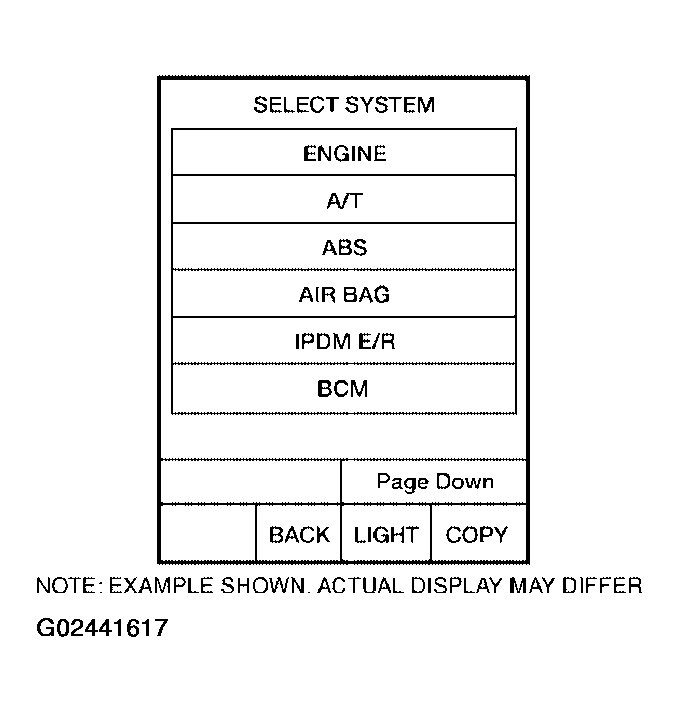

    Fig 3: Locating "BCM" On "SELECT ITEM" Screen
    G02441617Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

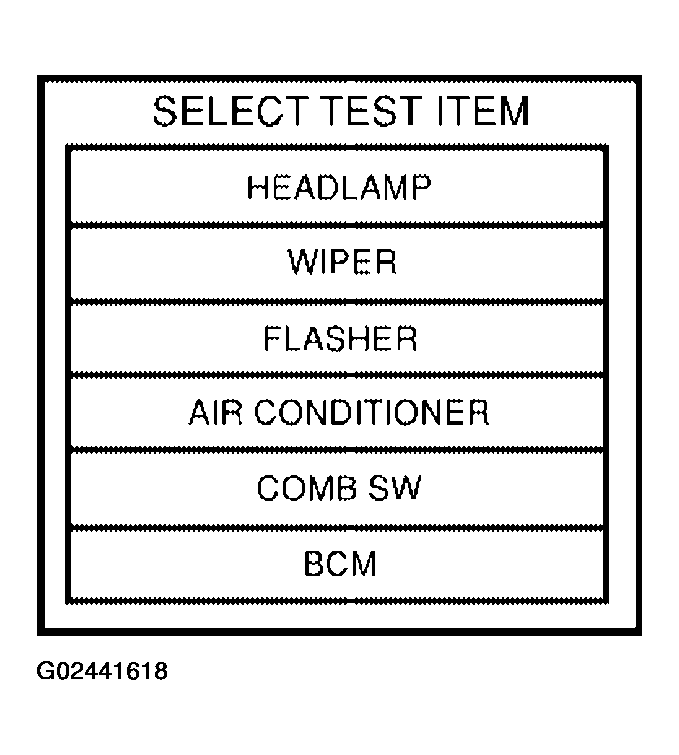

    Fig 4: Locating "BCM" On "SELECT TEST ITEM" Screen
    G02441618Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

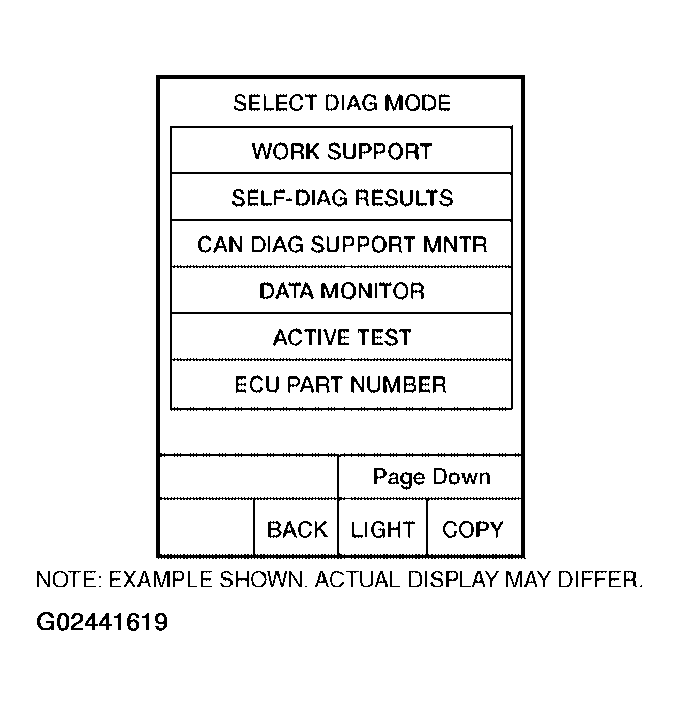

    Fig 5: Locating "CONFIGURATION" On "SELECT DIAG MODE" Screen
    G02441619Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "TA60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

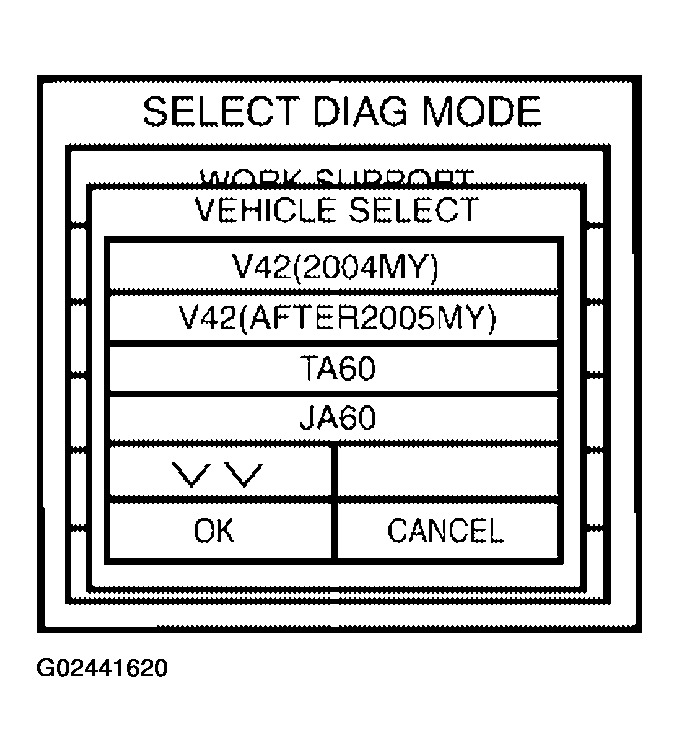

    Fig 6: Selecting Vehicle On "VEHICLE SELECT" Screen
    G02441620Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.

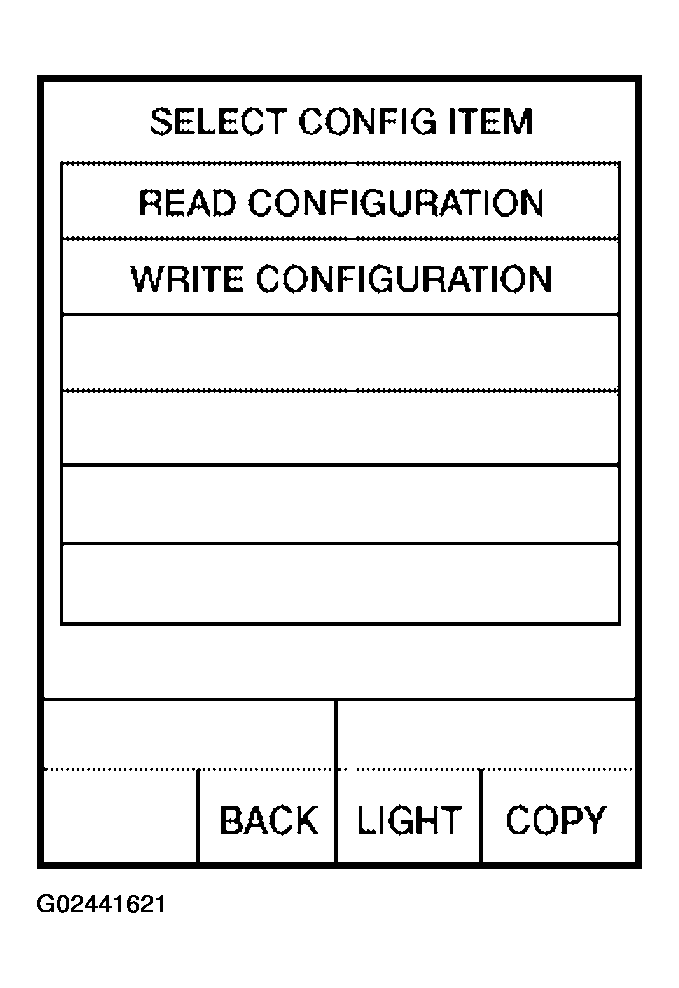

    Fig 7: Locating "READ CONFIGURATION" On "SELECT CONFIG ITEM" Screen
    G02441621Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to WRITE CONFIGURATION PROCEDURE .

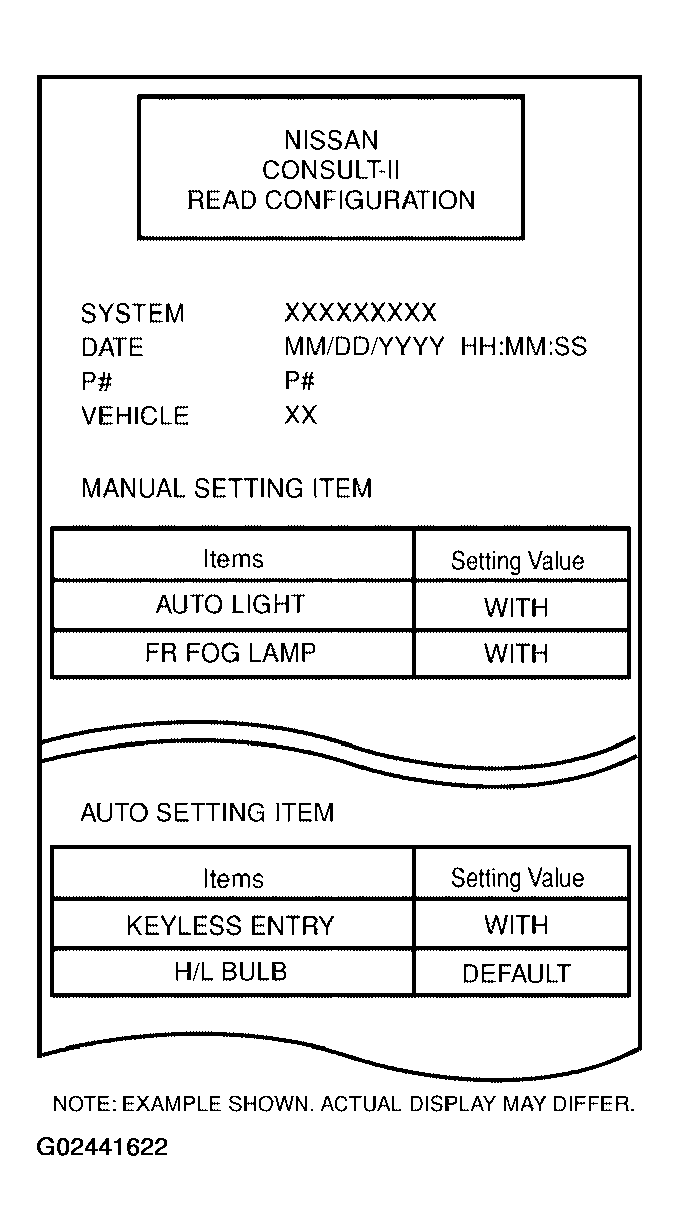

    Fig 8: Identifying WRITE CONFIGURATION PROCEDURE
    G02441622Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.

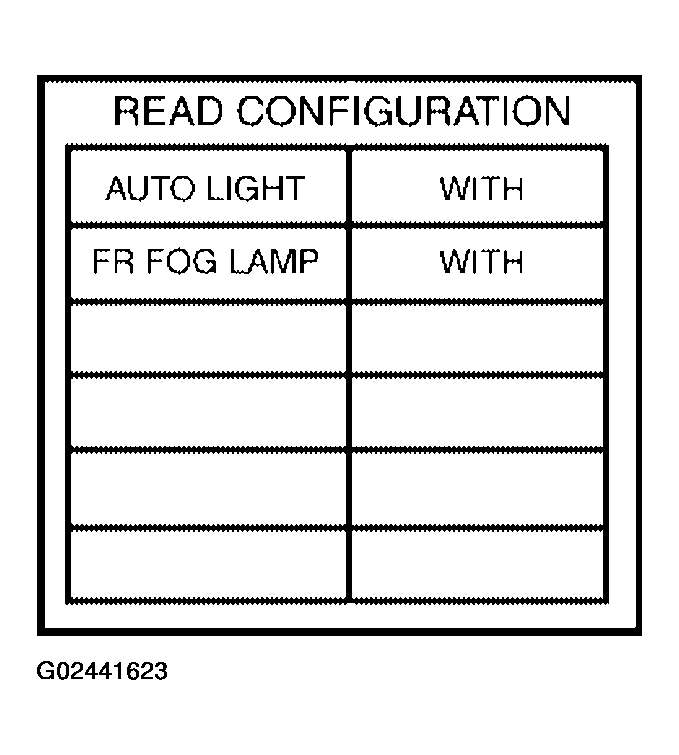

    Fig 9: Locating "BACK" On "READ CONFIGURATION" Screen
    G02441623Courtesy of NISSAN MOTOR CO., U.S.A.
