Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | Right rear of engine compartment. See Figure. |
| Air Bag Diagnosis Sensor Unit | Below center console, between seats. See Figure. |

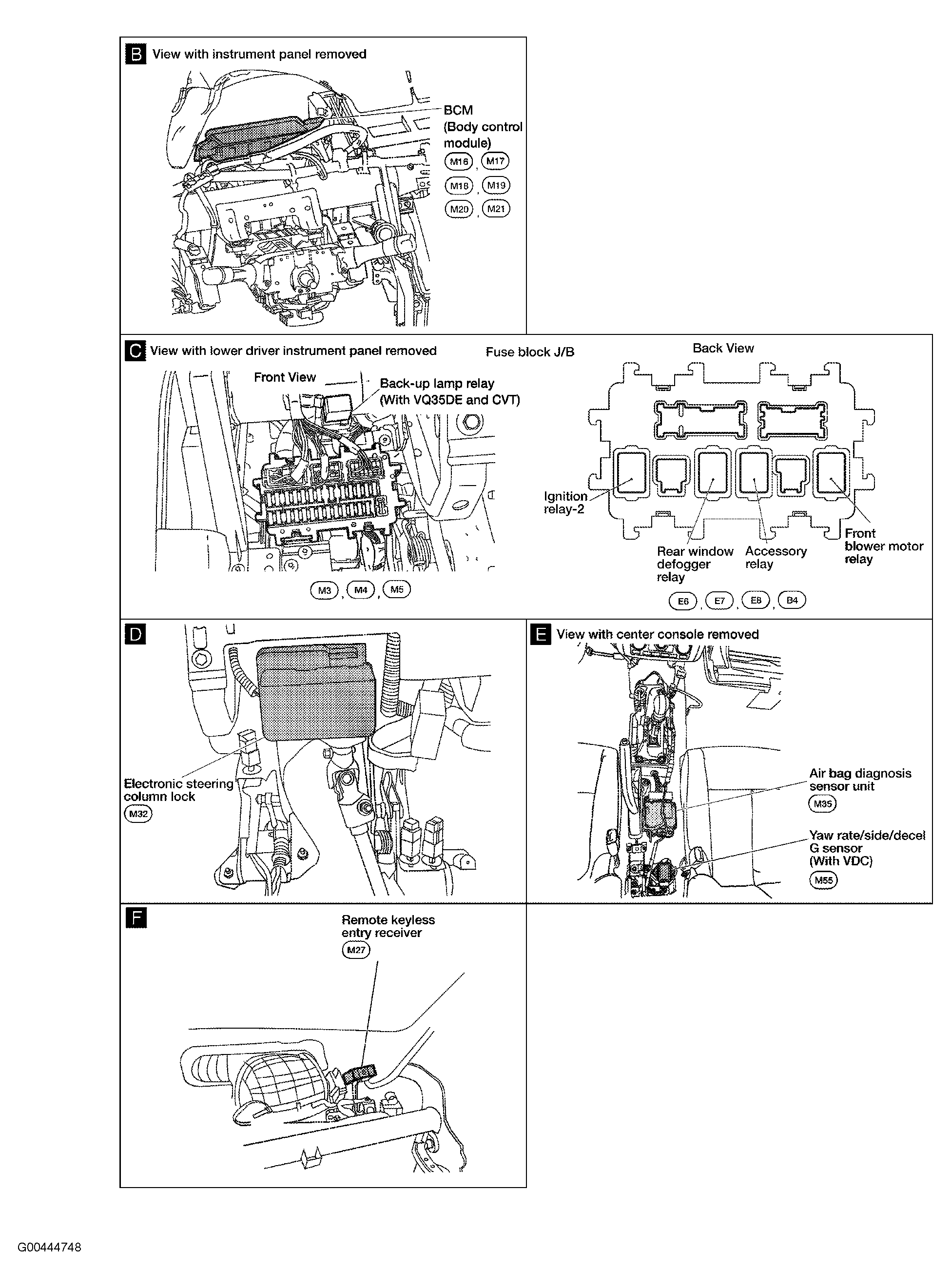

| BCM (Body Control Module) | Behind left side of dash. See Figure. |

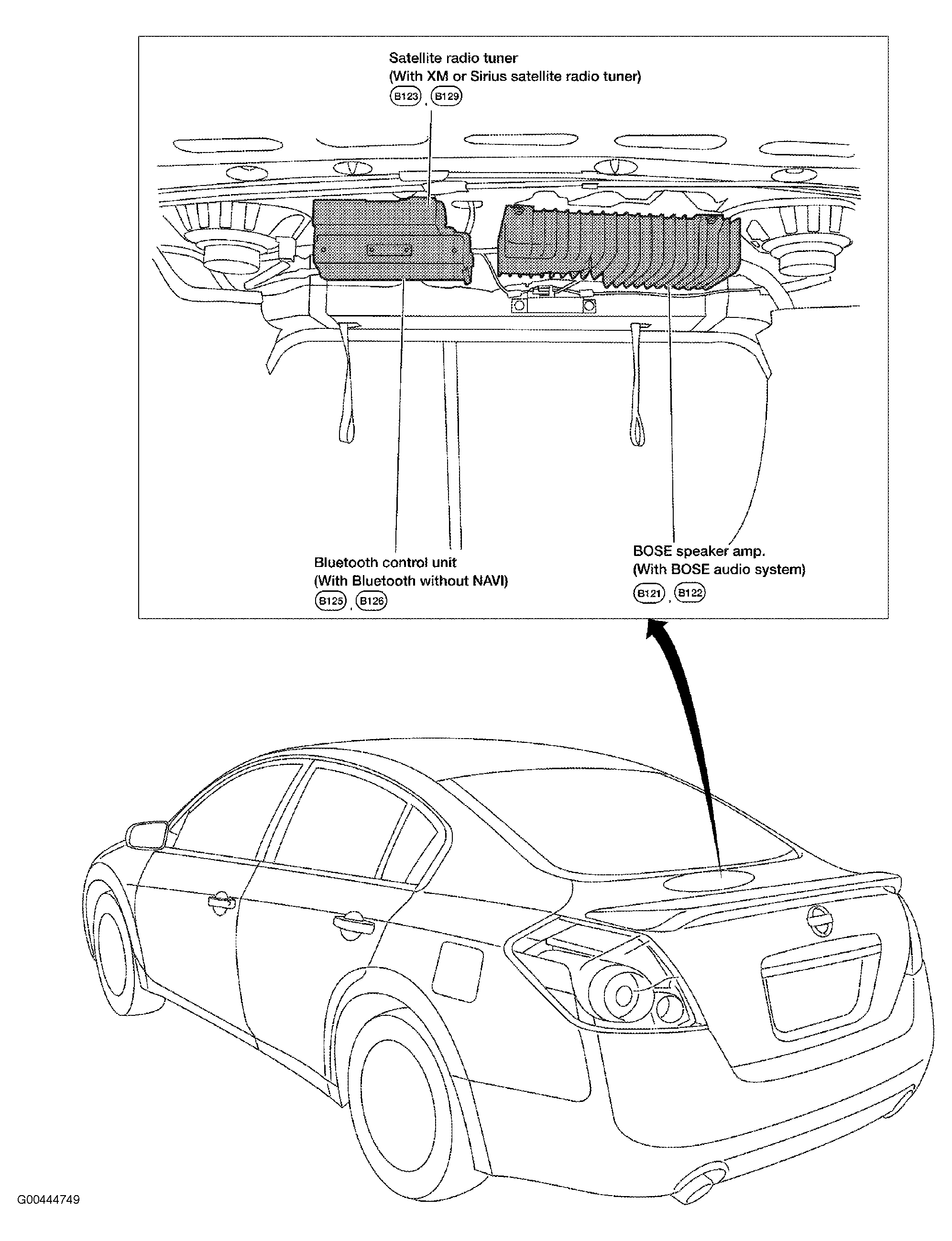

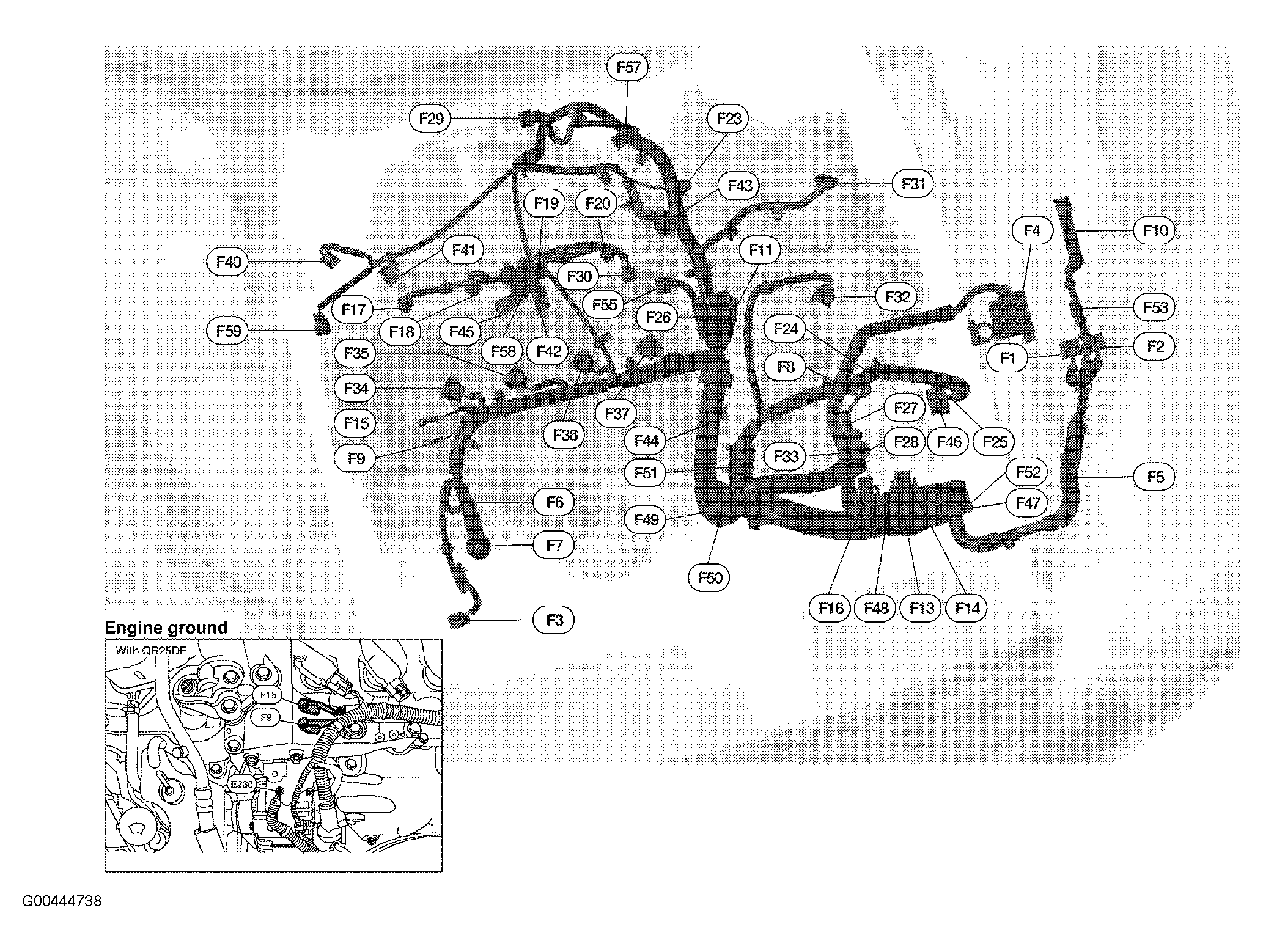

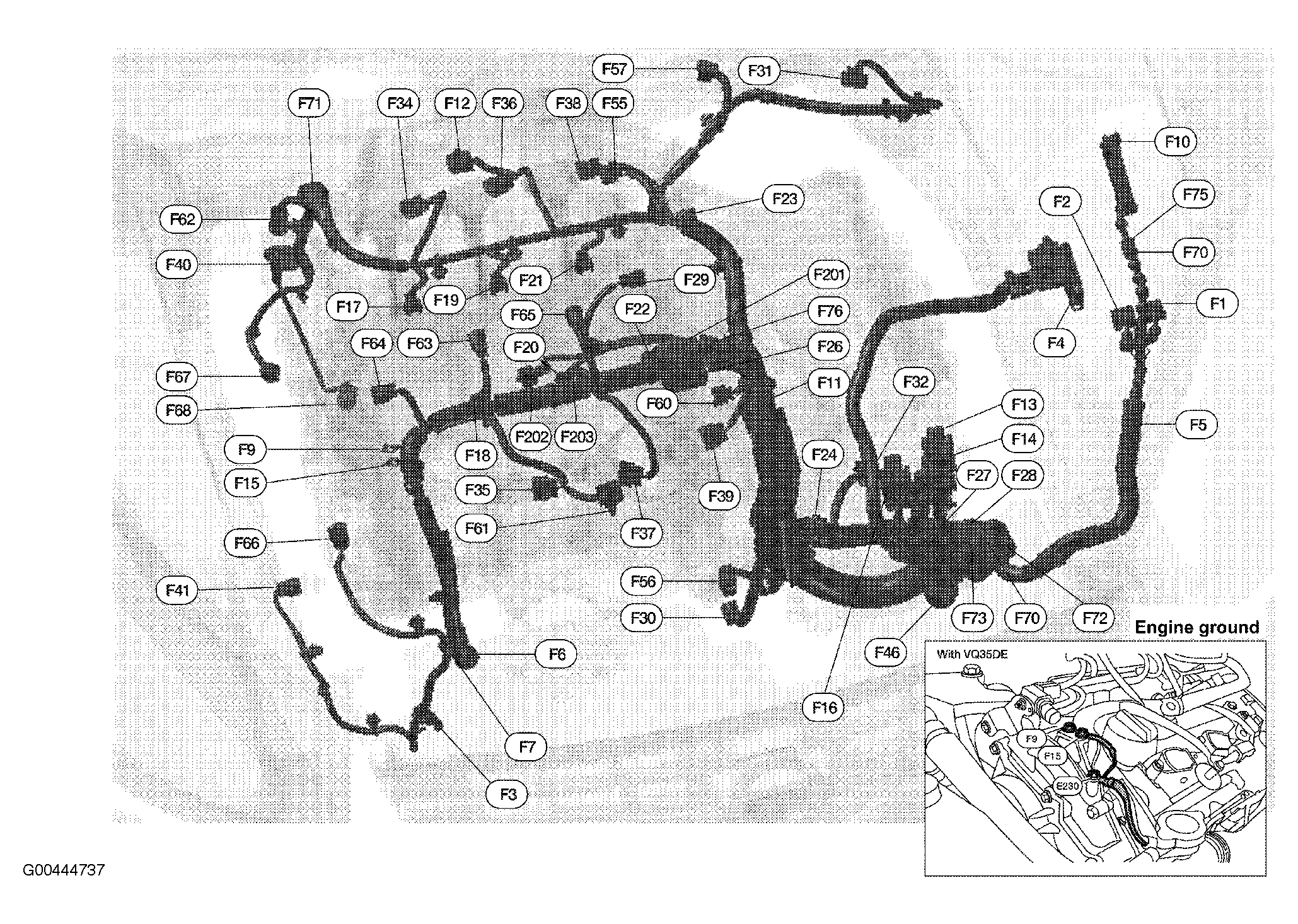

| Bluetooth Control Unit | Under rear parcel shelf. See Figure. |
| CVT Unit (2.5L) (F46) | Left side of transmission. See Figure. |
| CVT Unit (3.5L) (F46) | Left side of transmission. See Figure. |

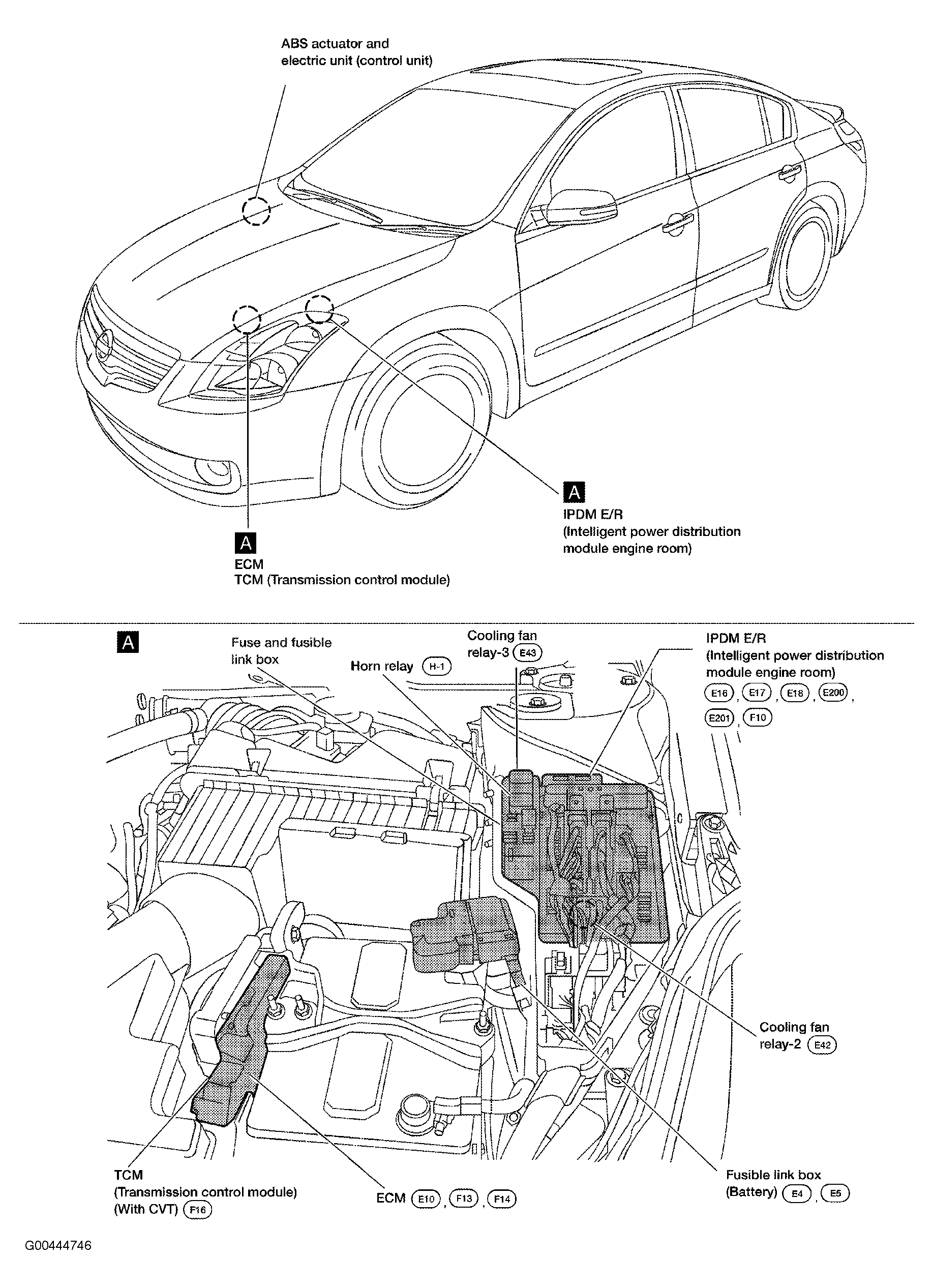

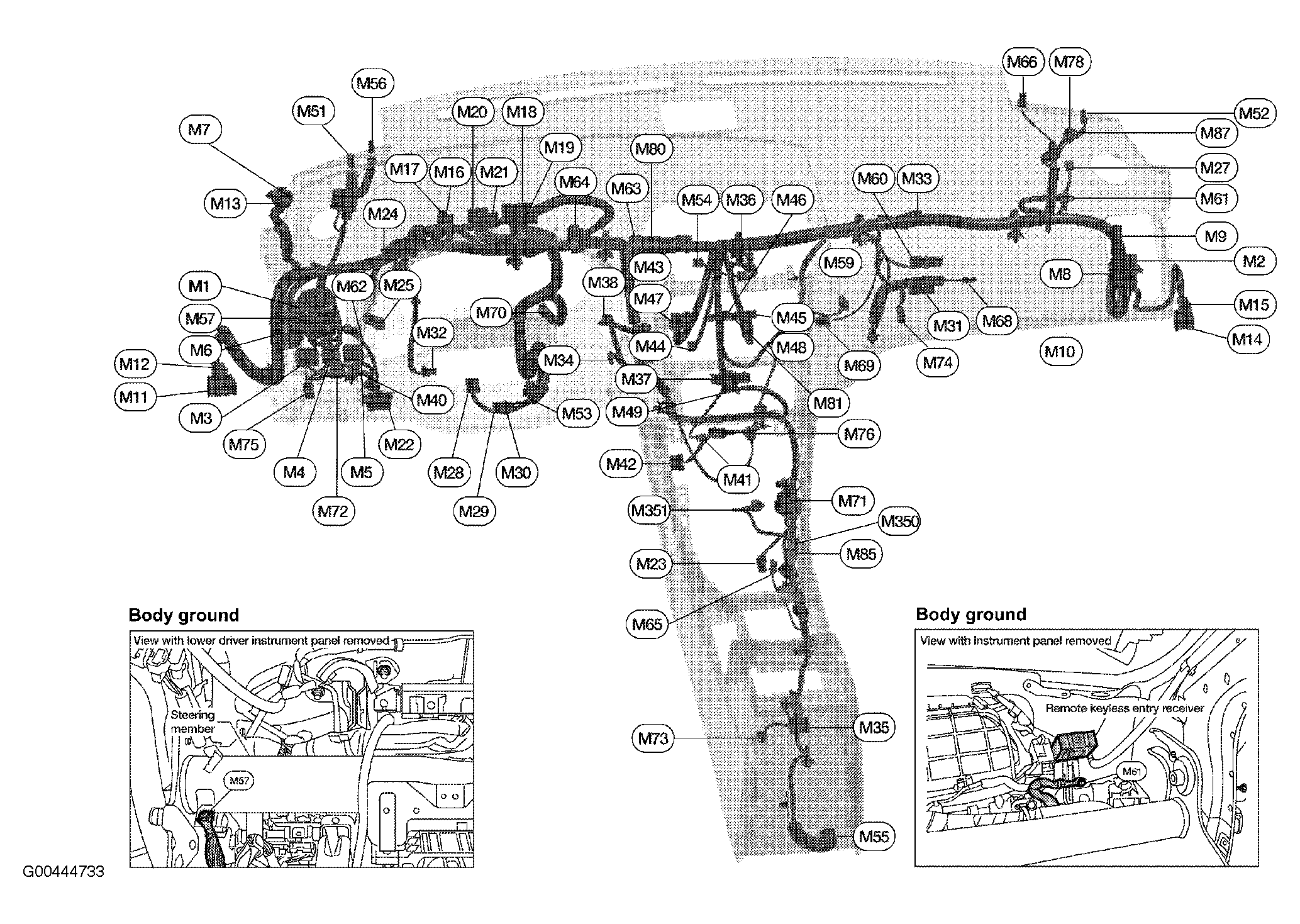

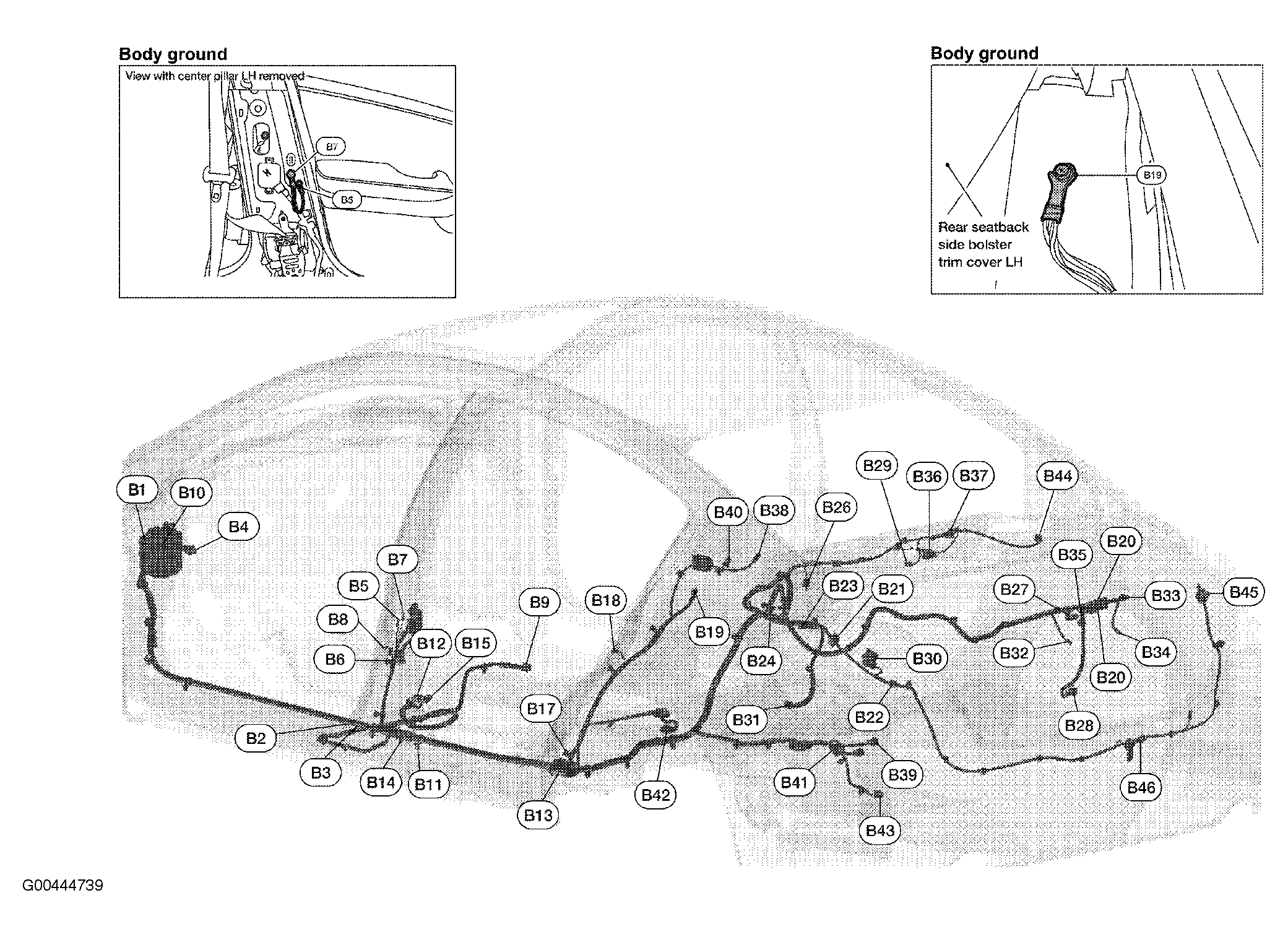

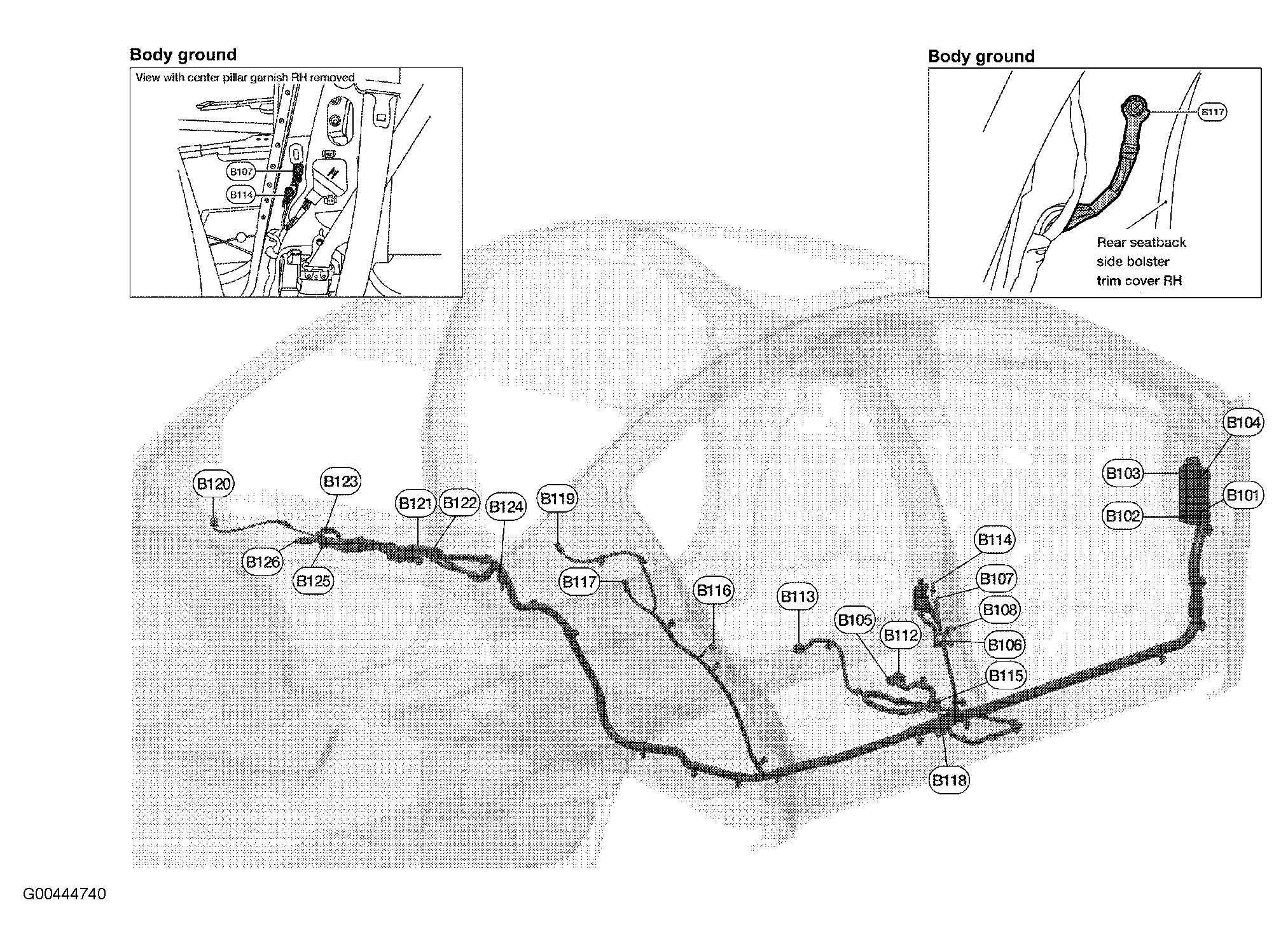

| ECM | Left front of engine compartment. See Figure. |
| Front Passenger Air Bag Module (M60) | Behind right side of dash. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | Left front of engine compartment, behind headlight. See Figure. |
| Power Steering Control Unit (M59) | Behind right center of dash. See Figure. |
| Rear View Camera Control Unit (B31) | Left side of luggage compartment. See Figure. |
| Side Air Bag Module (Left Front) (B11) | Under left front seat. See Figure. |
| Side Air Bag Module (Right Front) (B112) | Under right front seat. See Figure. |
| Side Curtain Air Bag Module (Left) (B38) | Top of left "C" pillar. See Figure. |
| Side Curtain Air Bag Module (Right) (B119) | At right "C" pillar. See Figure. |
| TCM | Left front of engine compartment. See Figure. |
| Tire Pressure Receiver (M70) | Behind left side of dash. See Figure. |
