Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | At right rear corner of engine compartment. See Figure. |
| Air Bag Diagnosis Sensor Unit | Under rear of floor center console. See Figure. |
| Automatic Drive Positioner Control Unit | Behind right center of dash. See Figure. |
| BCM (Body Control Module) | Near fuse block (J/B). See Figure. |

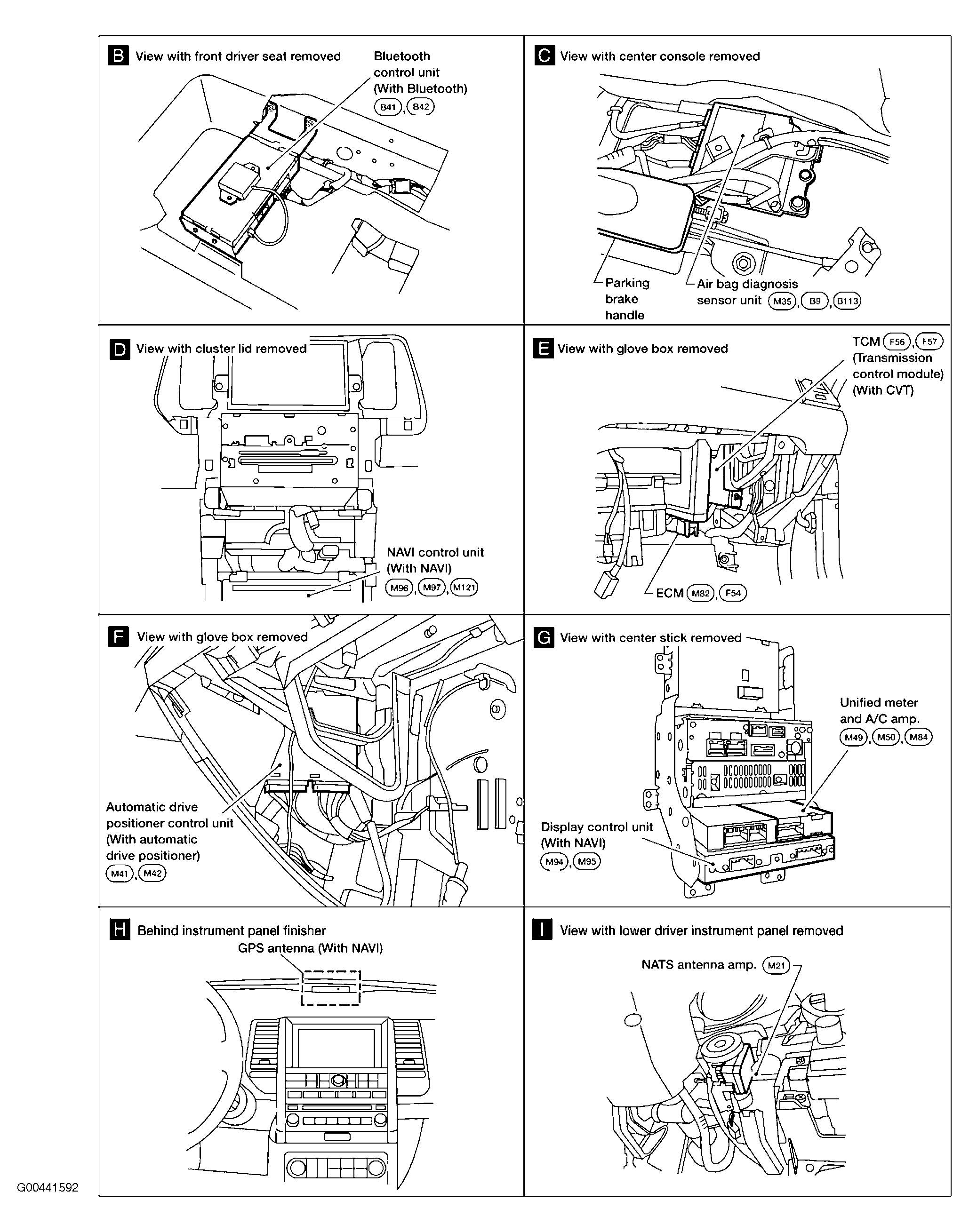

| Bluetooth Control Unit | Under driver's seat. See Figure. |
| Display Control Unit | Behind center of dash. See Figure. |
| ECM | Behind right side of dash. See Figure. |

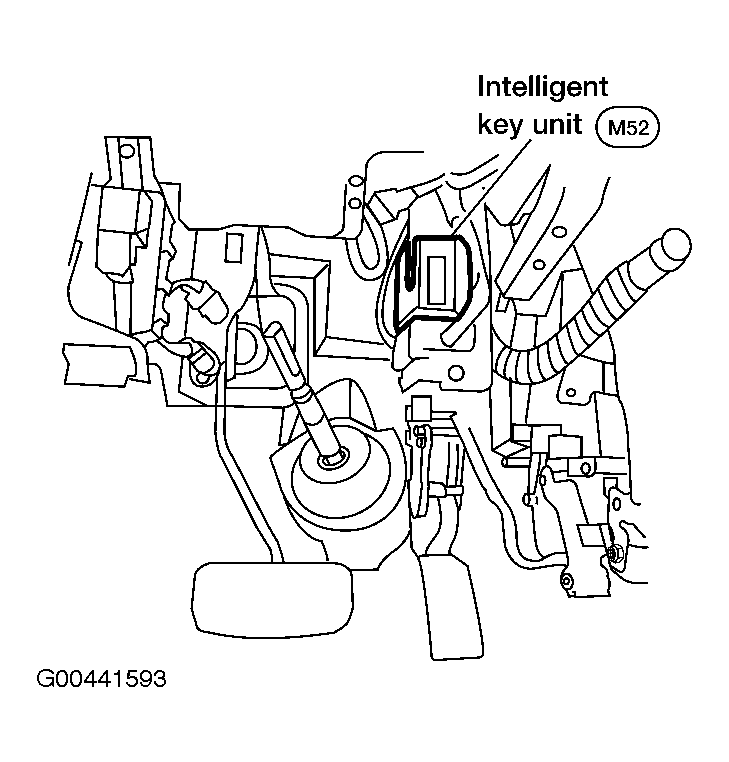

| Intelligent Key Unit | Behind left side of dash. See Figure. |
| NAVI Control Unit | Behind center of dash. See Figure. |
| Occupant Classification System Control Unit (P201) | Behind right side of dash. See Figure. |
| Passenger Air Bag Module (M105) | Behind right side of dash. See Figure. |
| Shift Lock Control Unit | Near fuse block (J/B). See Figure. |
| Side Air Bag Module (Left Front) (B10) | Under left front seat. See Figure. |
| Side Air Bag Module (Right Front) (B10) | Under right front seat. See Figure. |
| Side Curtain Air Bag Module (Left) (B38) | At left "C" pillar. See Figure. |
| Side Curtain Air Bag Module (Right) (B119) | At right "C" pillar. See Figure. |
| Sonar Control Unit (B56) | Left side of trunk. See Figure. |
| TCM | Behind right side of dash. See Figure. |
