Control Units

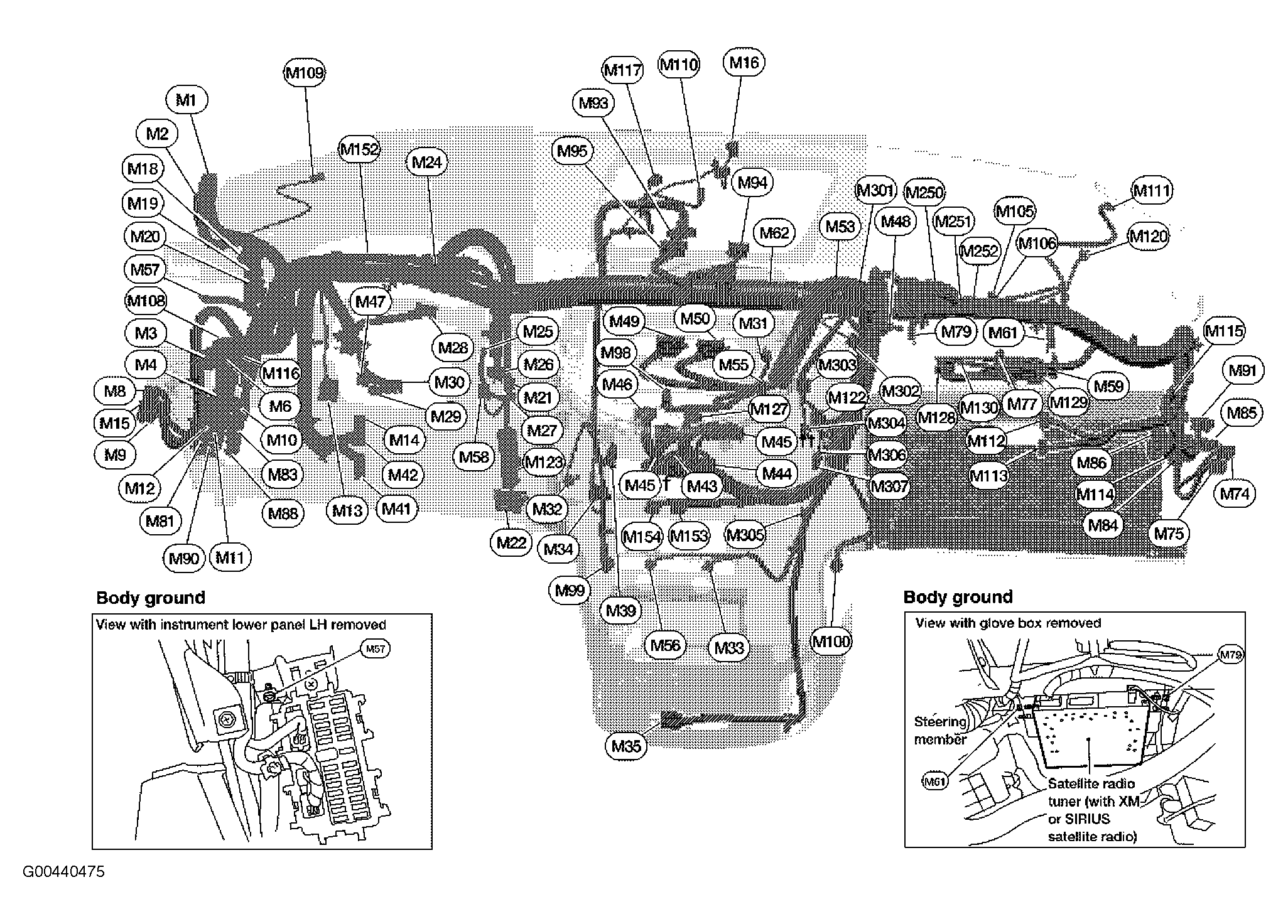

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | Right rear of engine compartment. See Figure. |
| A/T Device (M34) | Under center of dash. See Figure. |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure. |
| Back Door Control Unit (B55) | Behind left rear quarterpanel. See Figure. |

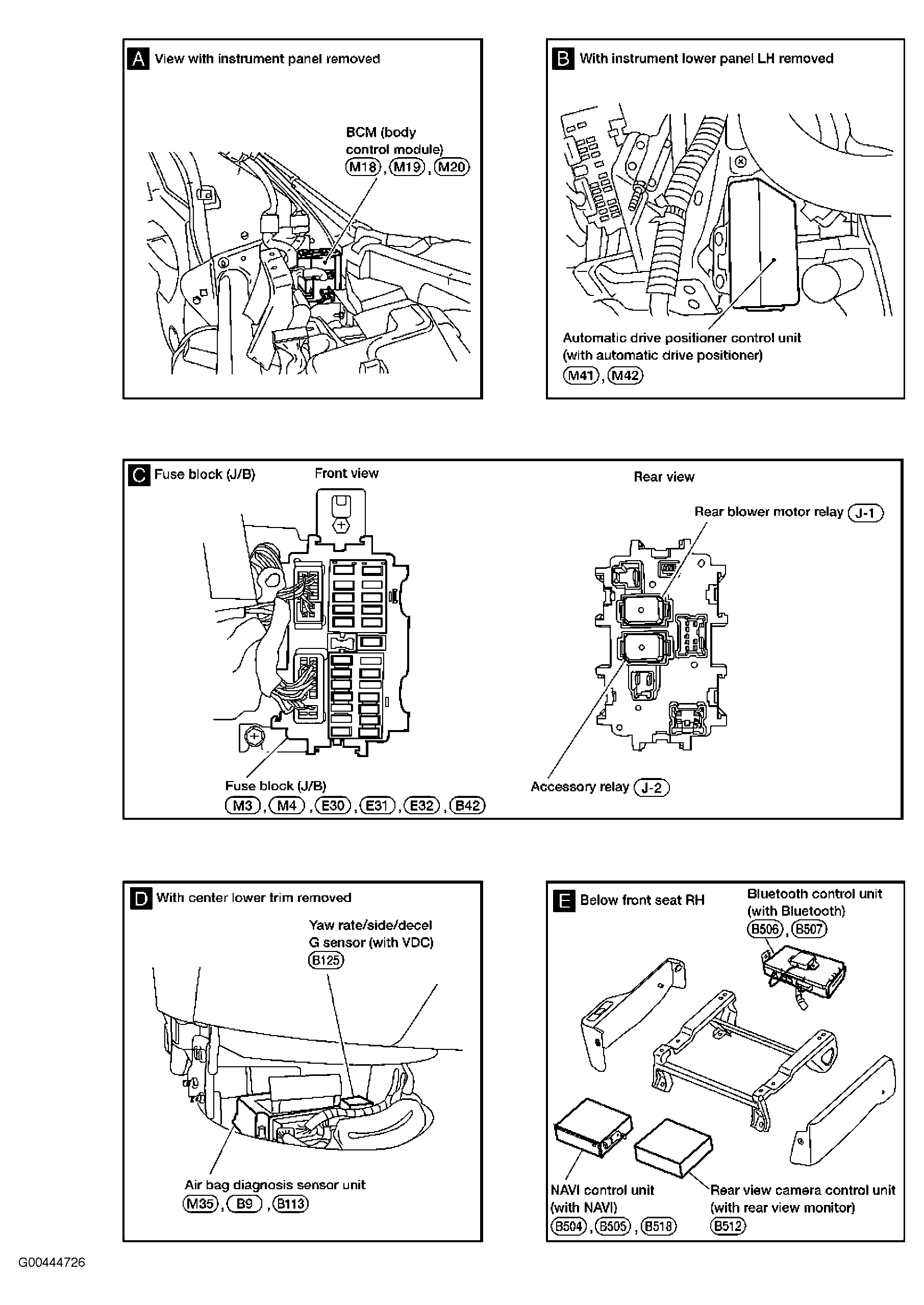

| BCM (Body Control Module) | Behind left side of dash. See Figure. |
| Bluetooth Control Unit | Under right front seat. See Figure. |

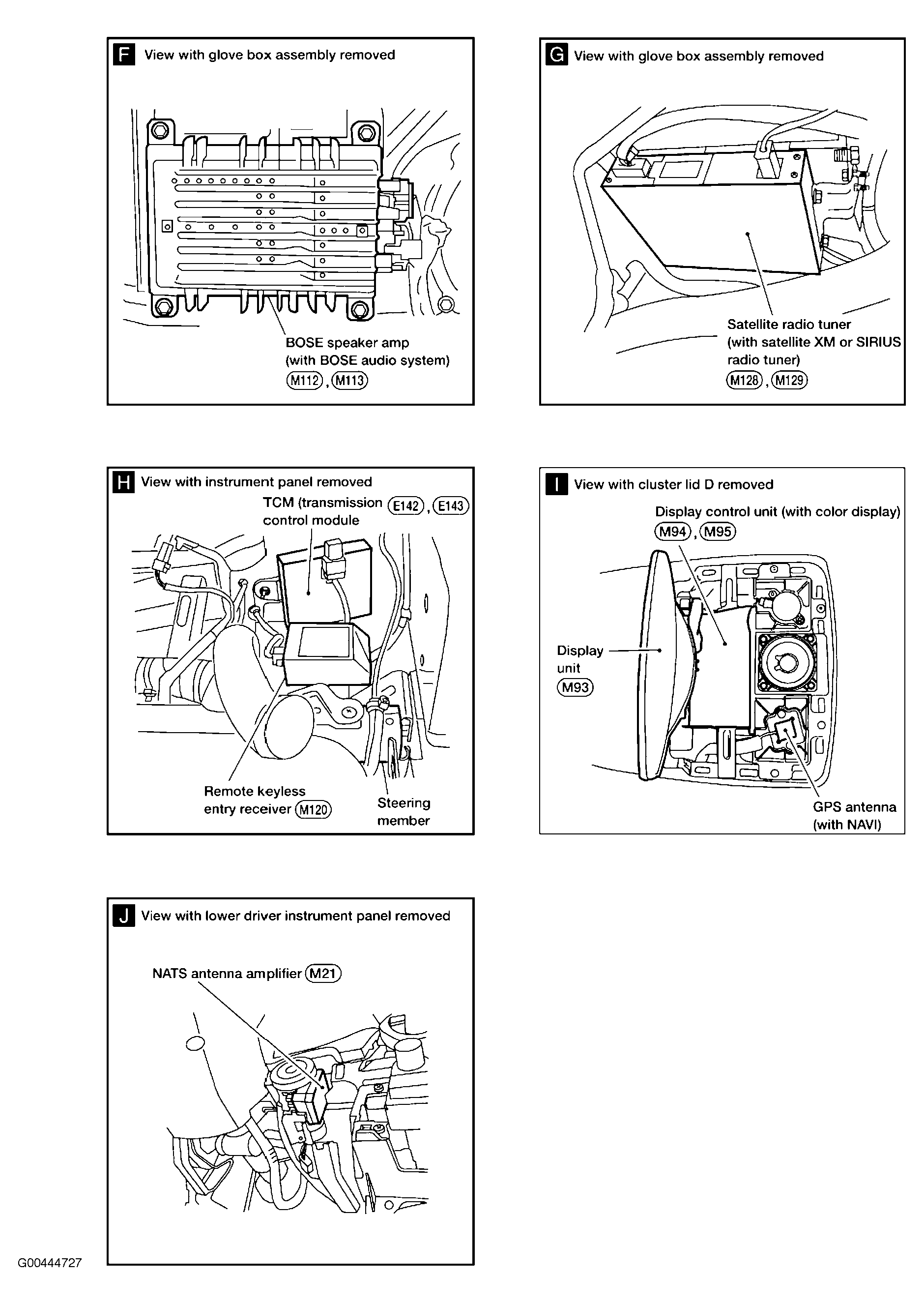

| Display Control Unit | Behind center of dash. See Figure. |
| ECM | Right rear of engine compartment. See Figure. |
| NAVI Control Unit | Under right front seat. See Figure. |
| Pedal Adjusting Control Unit (M14) | Behind left side of dash. See Figure. |
| Rear View Camera Control Unit | Under right front seat. See Figure. |
| Remote Keyless Entry Receiver | Behind right end of dash. See Figure. |
| Sliding Door Control Unit (Left) (B60) | Behind left rear quarterpanel. See Figure. |
| Sliding Door Control Unit (Right) (B144) | Behind right rear quarterpanel. See Figure. |
| Sliding Door Latch Control Unit LH | Center of sliding door. See Figure. |
| Sliding Door Latch Control Unit RH | Center of sliding door. See Figure. |
| Sonar Control Unit (B56) | Behind left rear quarterpanel. See Figure. |
| TCM (Transmission Control Module) | Behind right side of dash. See Figure. |
| Trailer Tow Control Unit (B303) | Behind left rear quarterpanel. See Figure. |
