Component Parts Location

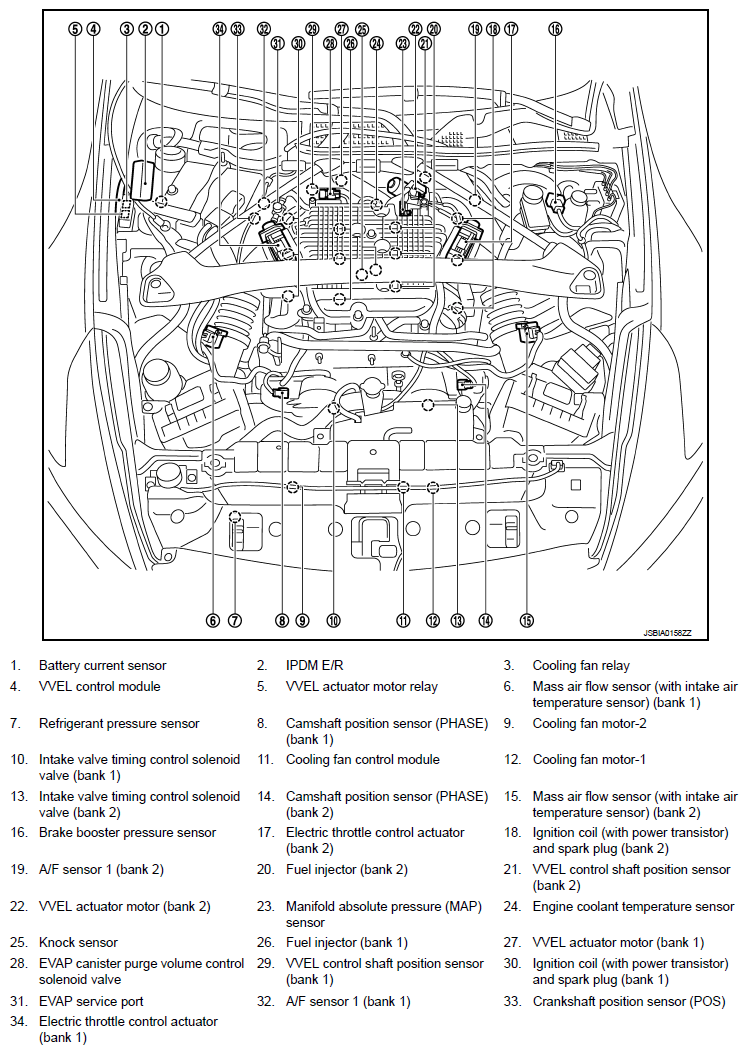

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 21)

G06576182

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 21)

G06576183

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 21)

G06576184

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 21)

G06576185

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 21)

G06576186

Courtesy of NISSAN MOTOR CO., U.S.A.

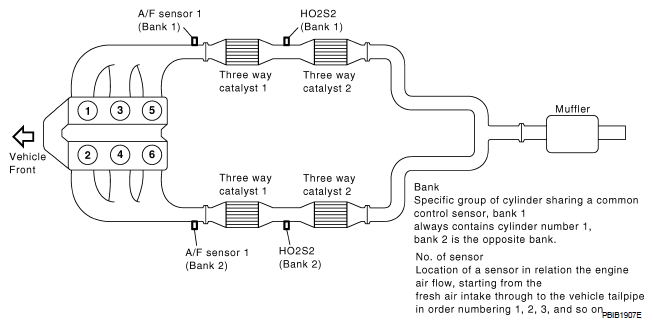

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 21)

G06576187

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 21)

G06576188

Courtesy of NISSAN MOTOR CO., U.S.A.

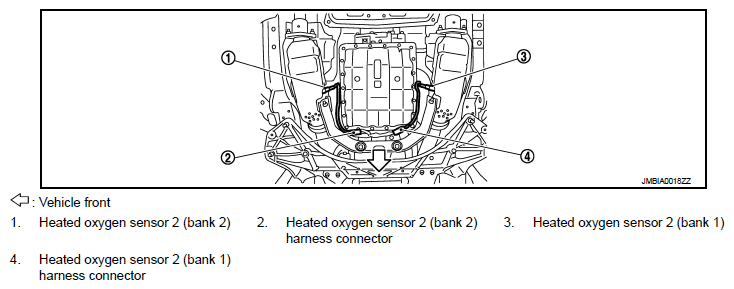

Fig 8: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 21)

G06576189

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 21)

G06576190

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 21)

G06576191

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 21)

G06576192

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 21)

G06576193

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Air Conditioning Cut Control Component Parts Location (13 Of 21)

G06576194

Courtesy of NISSAN MOTOR CO., U.S.A.

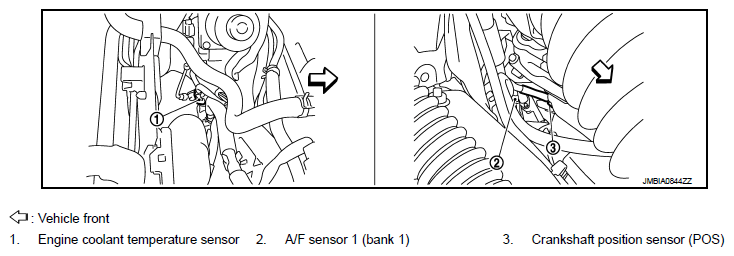

Fig 14: Identifying Air Conditioning Cut Control Component Parts Location (14 Of 21)

G06576195

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Air Conditioning Cut Control Component Parts Location (15 Of 21)

G06576196

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control Component Parts Location (16 Of 21)

G06576197

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Air Conditioning Cut Control Component Parts Location (17 Of 21)

G06576198

Courtesy of NISSAN MOTOR CO., U.S.A.

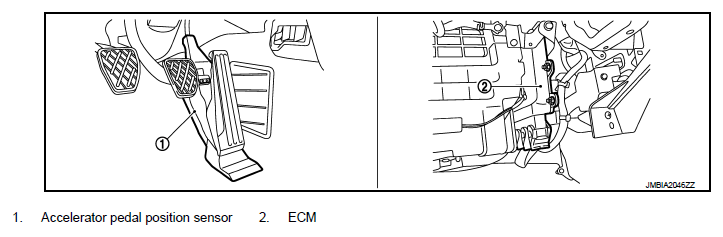

Fig 18: Identifying Air Conditioning Cut Control Component Parts Location (18 Of 21)

G06576199

Courtesy of NISSAN MOTOR CO., U.S.A.

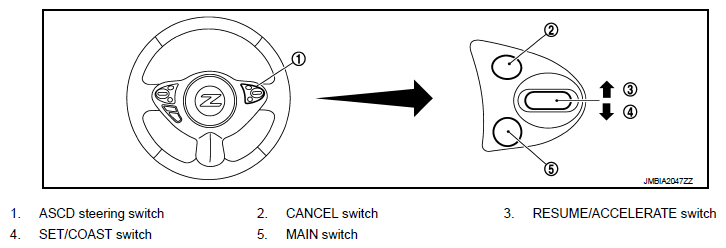

Fig 19: Identifying Air Conditioning Cut Control Component Parts Location (19 Of 21)

G06576200

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Air Conditioning Cut Control Component Parts Location (20 Of 21)

G06576201

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Air Conditioning Cut Control Component Parts Location (21 Of 21)

G06576202

Courtesy of NISSAN MOTOR CO., U.S.A.
