Component Parts Location

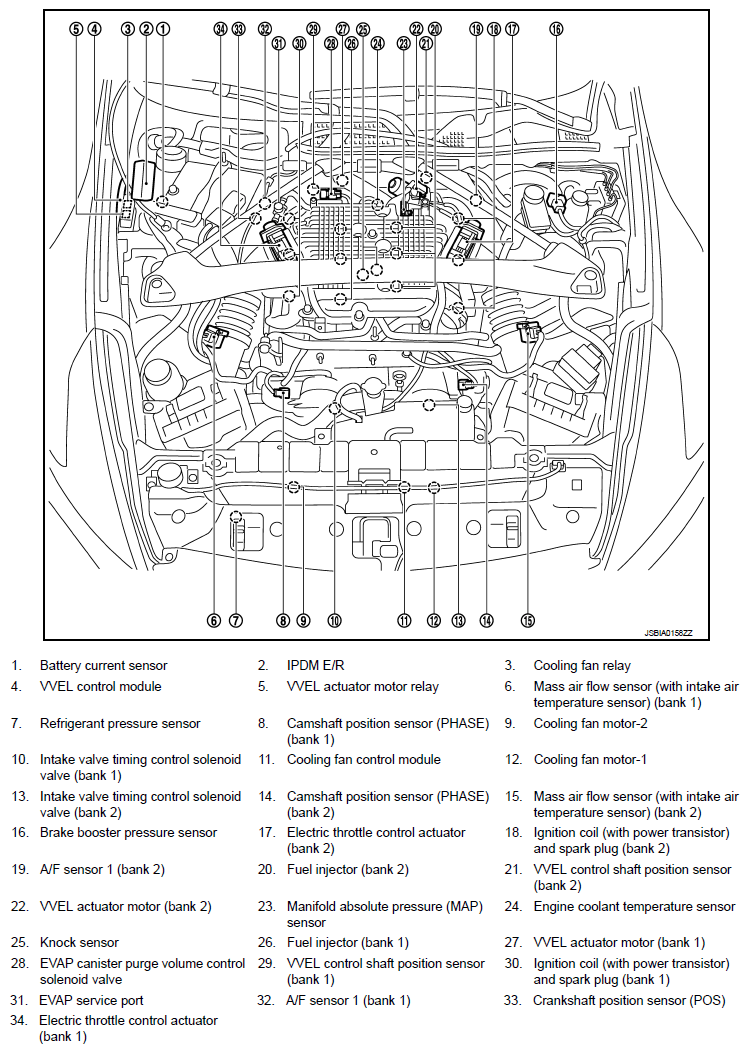

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 21)

G06576226

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 21)

G06576227

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 21)

G06576228

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 21)

G06576229

Courtesy of NISSAN MOTOR CO., U.S.A.

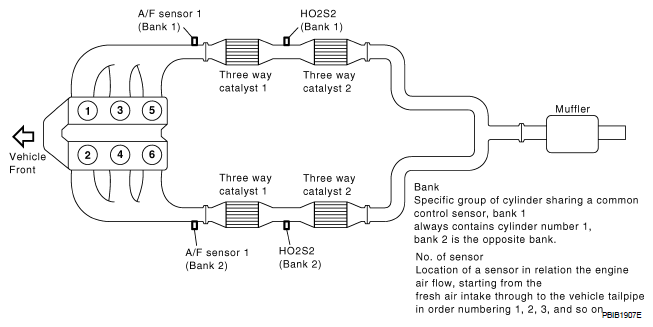

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 21)

G06576230

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 21)

G06576231

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 21)

G06576232

Courtesy of NISSAN MOTOR CO., U.S.A.

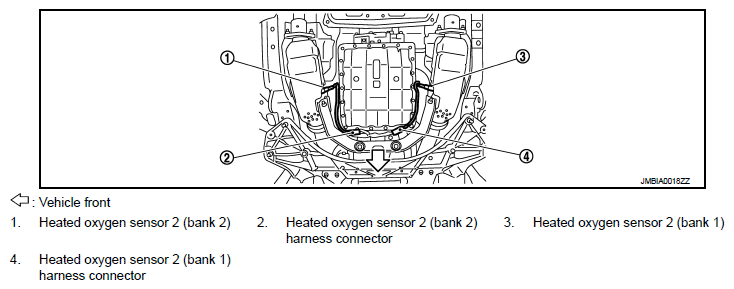

Fig 8: Identifying Cooling Fan Control Component Parts Location (8 Of 21)

G06576233

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Cooling Fan Control Component Parts Location (9 Of 21)

G06576234

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Cooling Fan Control Component Parts Location (10 Of 21)

G06576235

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Cooling Fan Control Component Parts Location (11 Of 21)

G06576236

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Cooling Fan Control Component Parts Location (12 Of 21)

G06576237

Courtesy of NISSAN MOTOR CO., U.S.A.

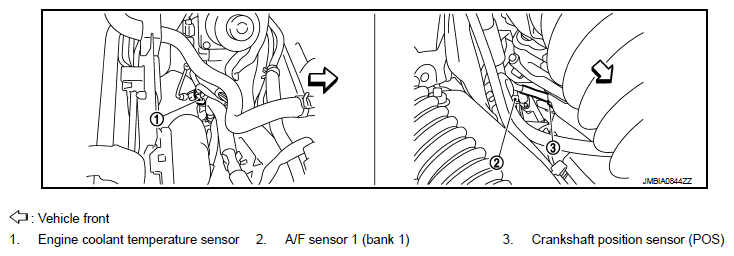

Fig 13: Identifying Cooling Fan Control Component Parts Location (13 Of 21)

G06576238

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Cooling Fan Control Component Parts Location (14 Of 21)

G06576239

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Cooling Fan Control Component Parts Location (15 Of 21)

G06576240

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Cooling Fan Control Component Parts Location (16 Of 21)

G06576241

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Cooling Fan Control Component Parts Location (17 Of 21)

G06576242

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Cooling Fan Control Component Parts Location (18 Of 21)

G06576243

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Cooling Fan Control Component Parts Location (19 Of 21)

G06576244

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Cooling Fan Control Component Parts Location (20 Of 21)

G06576245

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Cooling Fan Control Component Parts Location (21 Of 21)

G06576246

Courtesy of NISSAN MOTOR CO., U.S.A.
