Component Parts Location

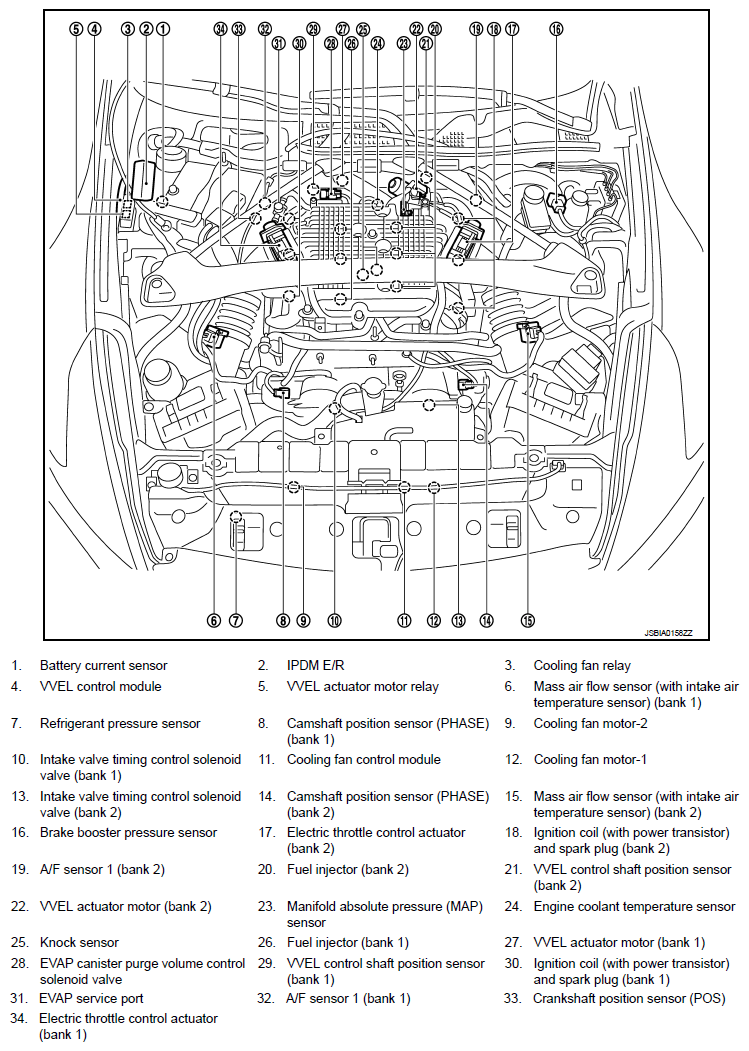

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 21)

G06576274

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 21)

G06576275

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 21)

G06576276

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 21)

G06576277

Courtesy of NISSAN MOTOR CO., U.S.A.

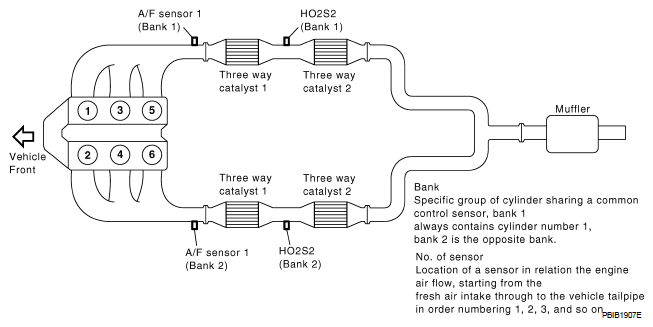

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 21)

G06576278

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 21)

G06576279

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 21)

G06576280

Courtesy of NISSAN MOTOR CO., U.S.A.

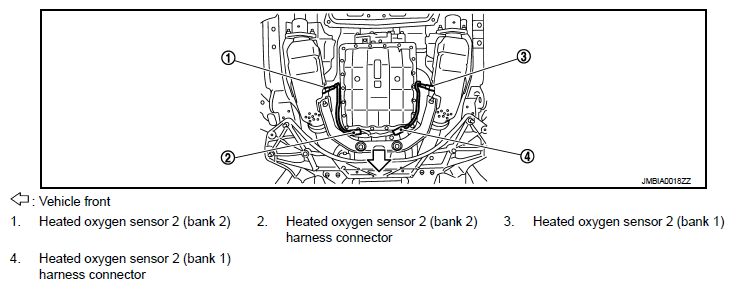

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 21)

G06576281

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 21)

G06576282

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 21)

G06576283

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 21)

G06576284

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 21)

G06576285

Courtesy of NISSAN MOTOR CO., U.S.A.

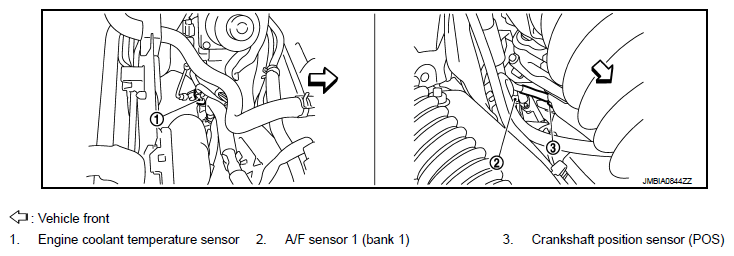

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 21)

G06576286

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 21)

G06576287

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 21)

G06576288

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 21)

G06576289

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 21)

G06576290

Courtesy of NISSAN MOTOR CO., U.S.A.

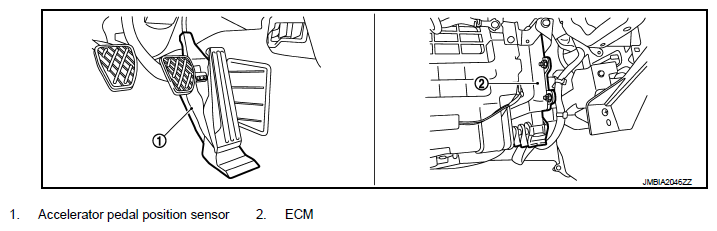

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 21)

G06576291

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 21)

G06576292

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 21)

G06576293

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 21)

G06576294

Courtesy of NISSAN MOTOR CO., U.S.A.
