Component Parts Location

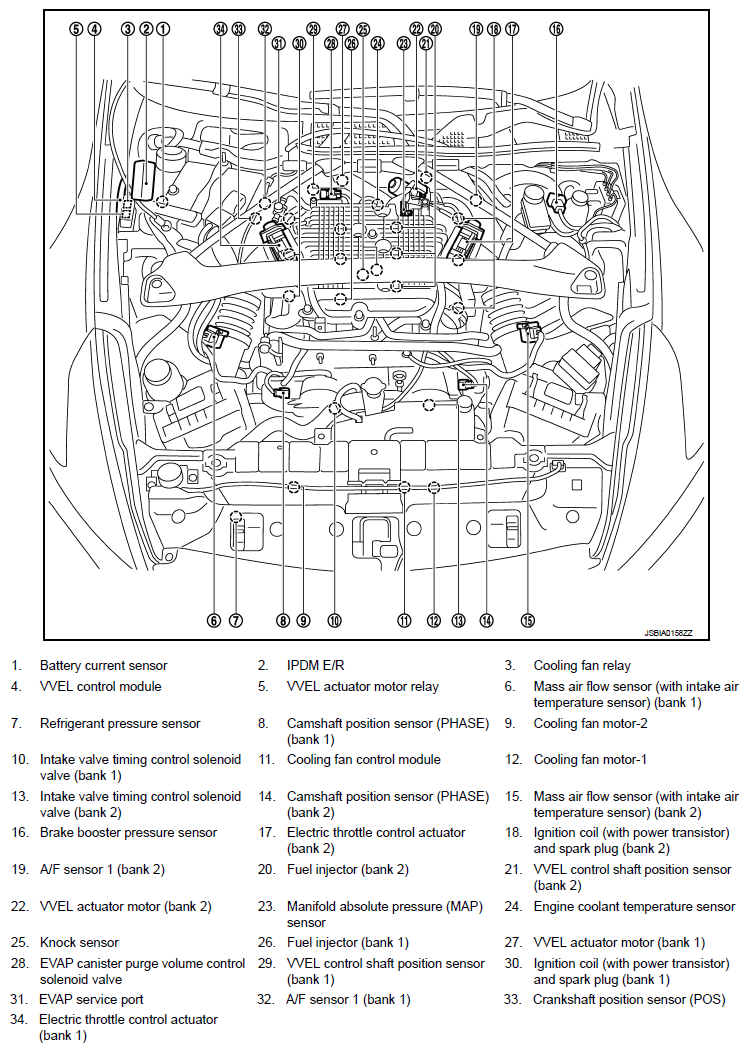

Fig 1: Identifying Synchrorev Match Mode Component Parts Location (1 Of 21)

G06576319

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Synchrorev Match Mode Component Parts Location (2 Of 21)

G06576320

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Synchrorev Match Mode Component Parts Location (3 Of 21)

G06576321

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Synchrorev Match Mode Component Parts Location (4 Of 21)

G06576322

Courtesy of NISSAN MOTOR CO., U.S.A.

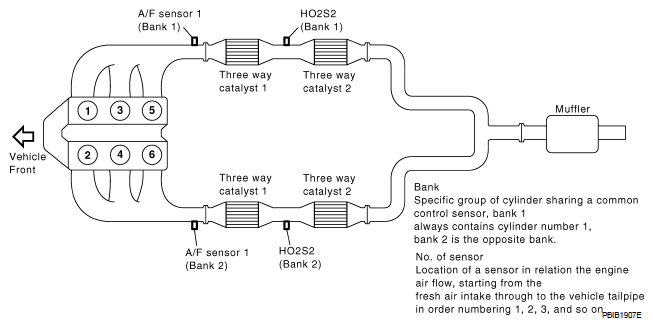

Fig 5: Identifying Synchrorev Match Mode Component Parts Location (5 Of 21)

G06576323

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Synchrorev Match Mode Component Parts Location (6 Of 21)

G06576324

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Synchrorev Match Mode Component Parts Location (7 Of 21)

G06576325

Courtesy of NISSAN MOTOR CO., U.S.A.

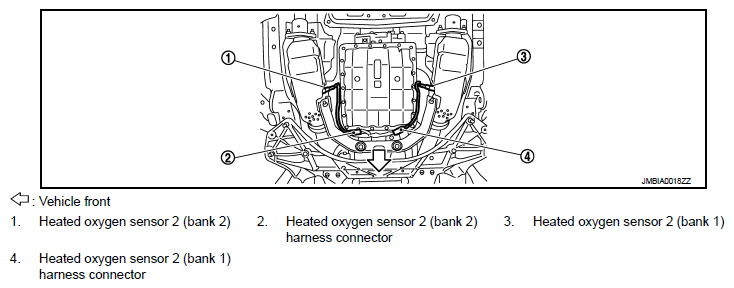

Fig 8: Identifying Synchrorev Match Mode Component Parts Location (8 Of 21)

G06576326

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Synchrorev Match Mode Component Parts Location (9 Of 21)

G06576327

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Synchrorev Match Mode Component Parts Location (10 Of 21)

G06576328

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Synchrorev Match Mode Component Parts Location (11 Of 21)

G06576329

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Synchrorev Match Mode Component Parts Location (12 Of 21)

G06576330

Courtesy of NISSAN MOTOR CO., U.S.A.

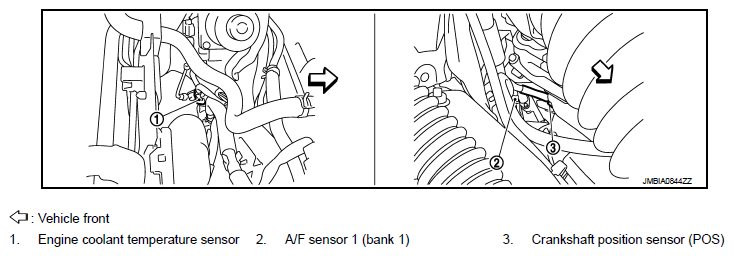

Fig 13: Identifying Synchrorev Match Mode Component Parts Location (13 Of 21)

G06576331

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Synchrorev Match Mode Component Parts Location (14 Of 21)

G06576332

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Synchrorev Match Mode Component Parts Location (15 Of 21)

G06576333

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Synchrorev Match Mode Component Parts Location (16 Of 21)

G06576334

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Synchrorev Match Mode Component Parts Location (17 Of 21)

G06576335

Courtesy of NISSAN MOTOR CO., U.S.A.

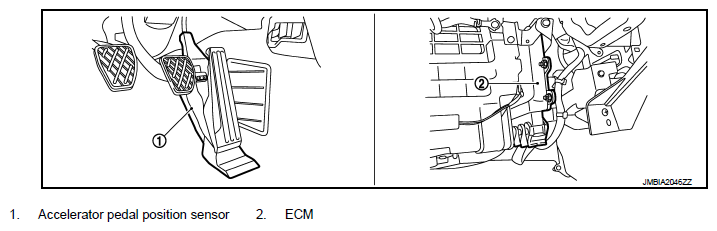

Fig 18: Identifying Synchrorev Match Mode Component Parts Location (18 Of 21)

G06576336

Courtesy of NISSAN MOTOR CO., U.S.A.

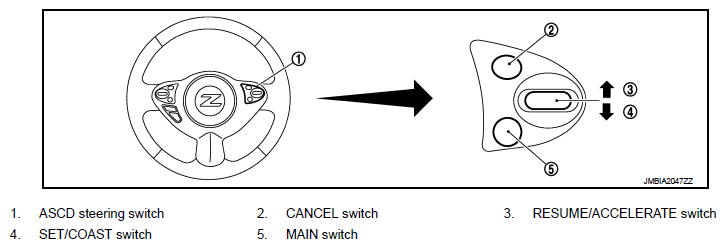

Fig 19: Identifying Synchrorev Match Mode Component Parts Location (19 Of 21)

G06576337

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Synchrorev Match Mode Component Parts Location (20 Of 21)

G06576338

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Synchrorev Match Mode Component Parts Location (21 Of 21)

G06576339

Courtesy of NISSAN MOTOR CO., U.S.A.
