Component Parts Location

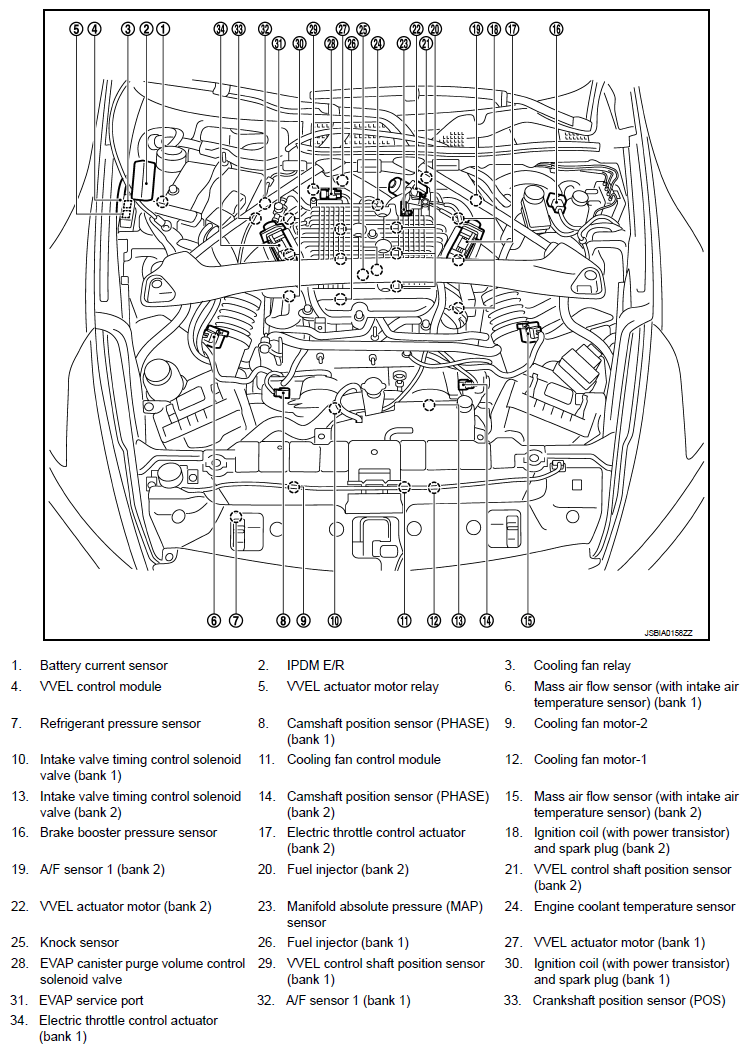

Fig 1: Identifying VVEL System Component Parts Location (1 Of 21)

G06576297

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying VVEL System Component Parts Location (2 Of 21)

G06576298

Courtesy of NISSAN MOTOR CO., U.S.A.

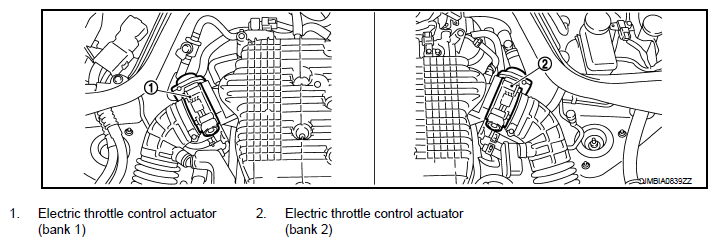

Fig 3: Identifying VVEL System Component Parts Location (3 Of 21)

G06576299

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying VVEL System Component Parts Location (4 Of 21)

G06576300

Courtesy of NISSAN MOTOR CO., U.S.A.

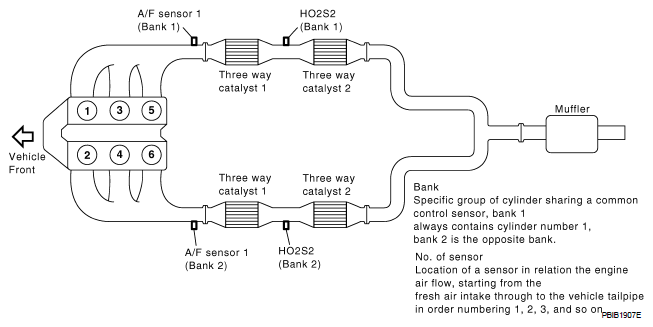

Fig 5: Identifying VVEL System Component Parts Location (5 Of 21)

G06576301

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying VVEL System Component Parts Location (6 Of 21)

G06576302

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying VVEL System Component Parts Location (7 Of 21)

G06576303

Courtesy of NISSAN MOTOR CO., U.S.A.

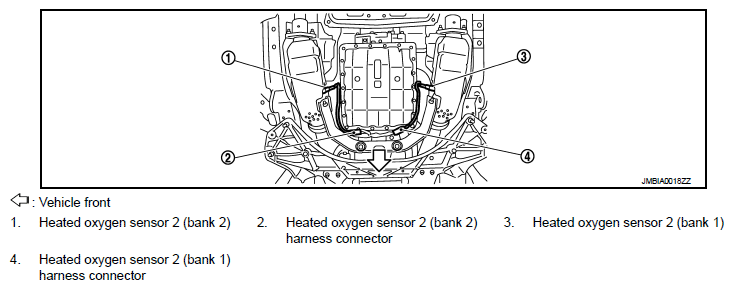

Fig 8: Identifying VVEL System Component Parts Location (8 Of 21)

G06576304

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying VVEL System Component Parts Location (9 Of 21)

G06576305

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying VVEL System Component Parts Location (10 Of 21)

G06576306

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying VVEL System Component Parts Location (11 Of 21)

G06576307

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying VVEL System Component Parts Location (12 Of 21)

G06576308

Courtesy of NISSAN MOTOR CO., U.S.A.

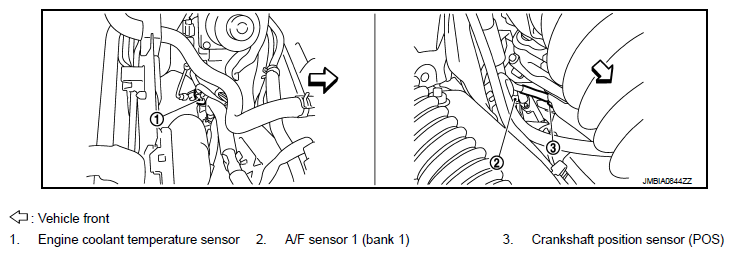

Fig 13: Identifying VVEL System Component Parts Location (13 Of 21)

G06576309

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying VVEL System Component Parts Location (14 Of 21)

G06576310

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying VVEL System Component Parts Location (15 Of 21)

G06576311

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying VVEL System Component Parts Location (16 Of 21)

G06576312

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying VVEL System Component Parts Location (17 Of 21)

G06576313

Courtesy of NISSAN MOTOR CO., U.S.A.

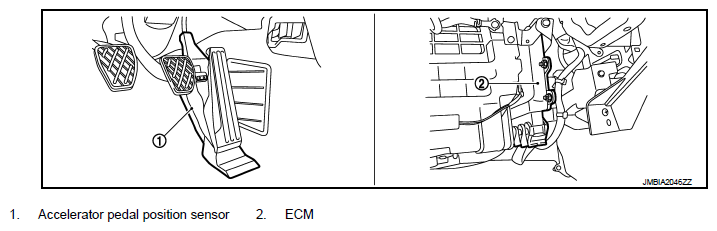

Fig 18: Identifying VVEL System Component Parts Location (18 Of 21)

G06576314

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying VVEL System Component Parts Location (19 Of 21)

G06576315

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying VVEL System Component Parts Location (20 Of 21)

G06576316

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying VVEL System Component Parts Location (21 Of 21)

G06576317

Courtesy of NISSAN MOTOR CO., U.S.A.
