System Diagram

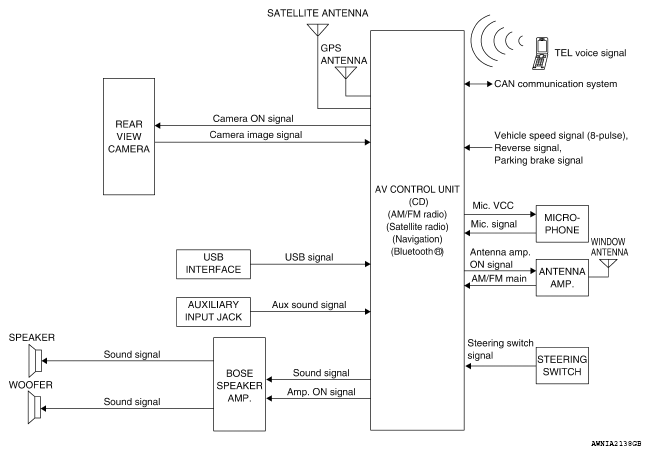

Fig 1: Multi AV System Diagram (Sedan)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
