Wiring Diagram - IPDM E/R -

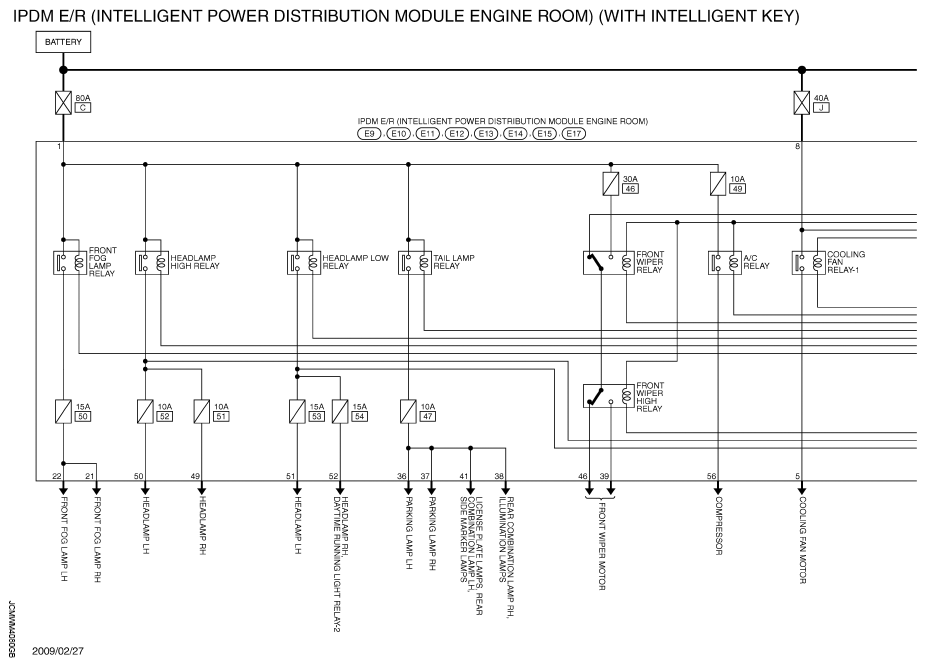

Fig 1: Intelligent Power Distribution Module Engine Room (With Intelligent Key) - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

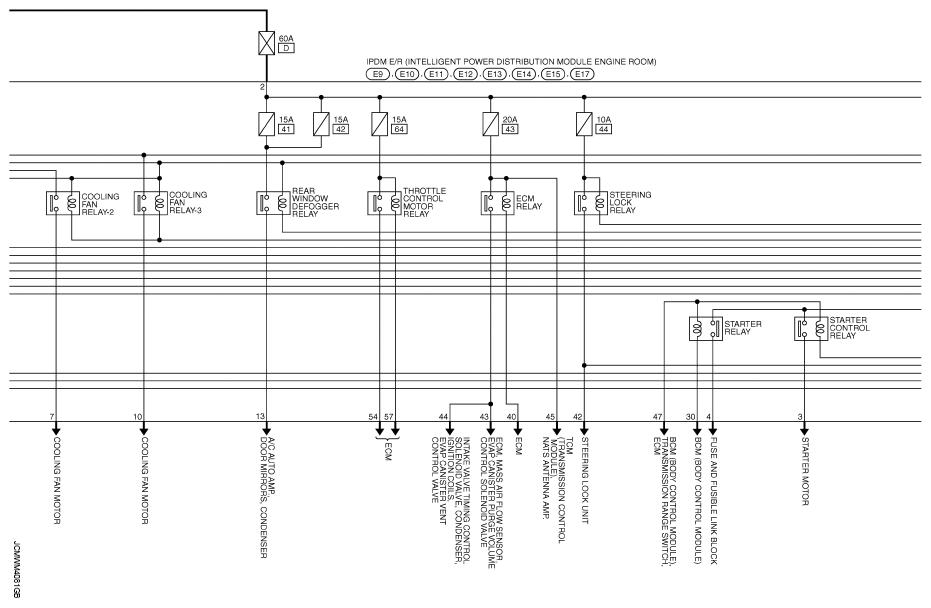

Fig 2: Intelligent Power Distribution Module Engine Room (With Intelligent Key) - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

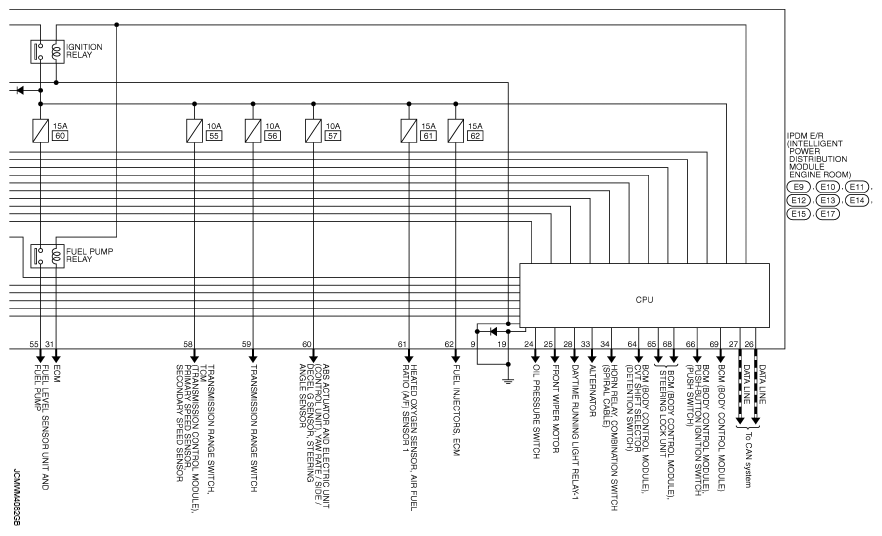

Fig 3: Intelligent Power Distribution Module Engine Room (With Intelligent Key) - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

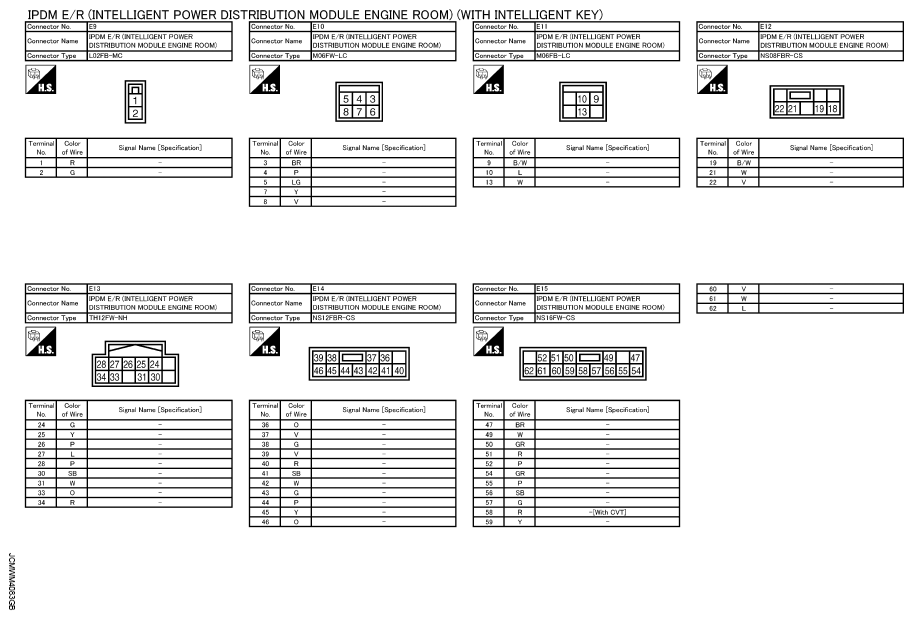

Fig 4: Identifying Intelligent Power Distribution Module Engine Room Connectors - With Intelligent Key (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

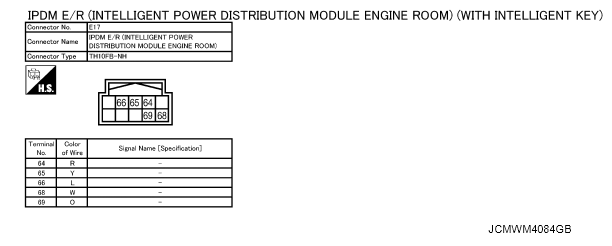

Fig 5: Identifying Intelligent Power Distribution Module Engine Room Connectors - With Intelligent Key (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
