System Diagram

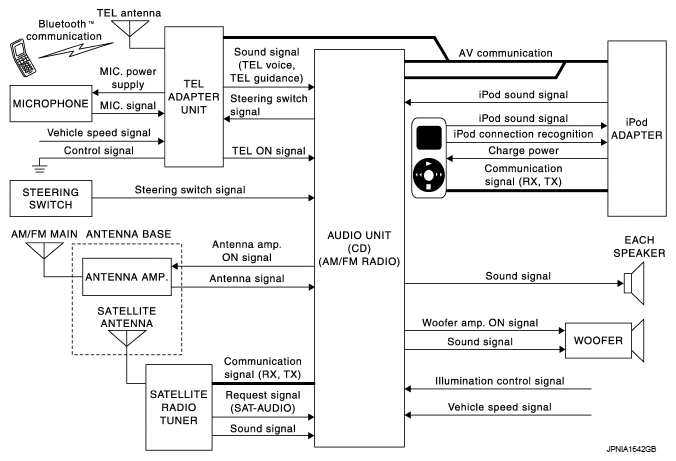

Fig 1: Audio System Diagram - With iPod® Connection Function And Hands-Free Phone
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Fig 2: Radio And Satellite Radio Antenna System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
